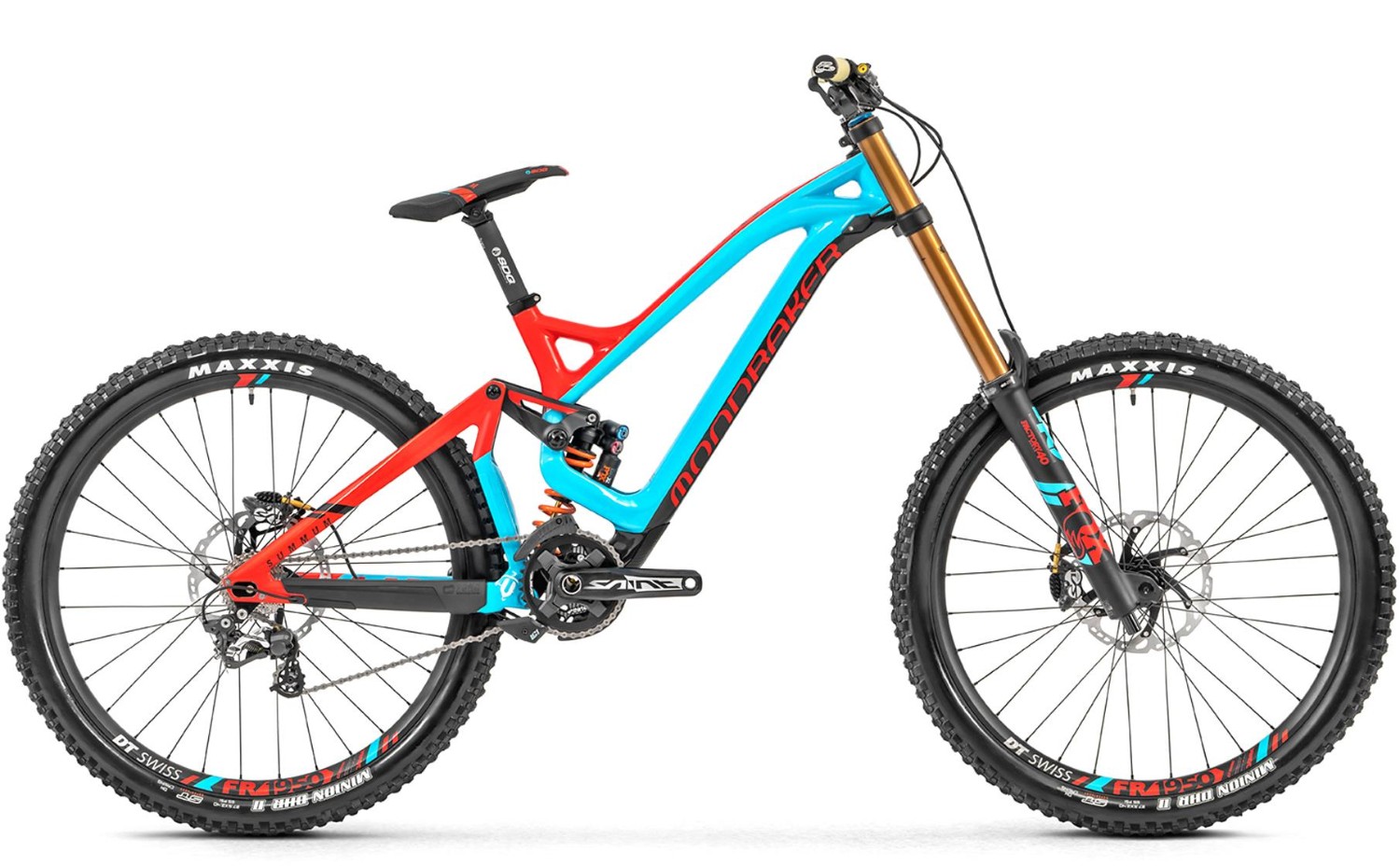

Mondraker Summum Carbon Pro Team 27.5" Mountain Bike 2019 - Downhill Full Suspension MTB

Tried and tested at the very highest level, the Mondraker Summum Carbon Pro Team is a downhill bike with an impressive World Championship DH mountain bike pedigree. With Mondraker’s Forward Geometry and Zero Suspension system combined with full Fox Factory shocks and Shimano Saint groupset this is a bike that is heading for the podium.
Key Features:
- Full stealth carbon frame with Forward Geometry for a confident ride
- Fox 40 Float FIT GRIP2 Factory fork for confident front-end control
- Fox DHX2 Factory shock controls the 205mm of rear wheel travel
- Shimano Saint groupset for rugged reliability
- DT Swiss FR1950 27.5” tubeless ready wheelset
- Sizes: Small, Medium, Large, X Large
- Colour: Blue/Red
- The Mondraker Summum Carbon Pro Team is available with 0% APR finance
Mondraker's global flagship, the most recognised Mondraker Bike ever and the World Champion winning bike. In 2016 the Summum made history achieving, for the first time ever, gold, silver and bronze medals at the UCI Downhill World Championship at Val Di Sole. The Summum showcases Mondraker's benchmark Forward Geometry and Zero Suspension System technologies.
The 2019 Summum features the same bike as the MS-Mondraker World Cup Downhill racing team with a Stealth full carbon frame, Fox 40 Factory GRIP2 205mm forks, Fox DHX2 Factory rear shock with an SLS spring, Shimano Saint 10 Speed drivetrain and brakes.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Summum Sizing
See the table below to find the right size Mondraker Summum Sizing.
Height |
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
|
Read our bike size guide for more information on sizing.
Summum Geometry
Frame Size |
Small |
Medium |
Large |
X Large |
Seat Tube Length |
400mm |
400mm |
400mm |
400mm |
Top Tube Length |
575mm |
600mm |
622mm |
647mm |
Bottom Bracket Drop |
0mm |
0mm |
0mm |
0mm |
Bottom Bracket Height |
350mm |
350mm |
350mm |
350mm |
Chain Stay Length |
445-460mm |
445-460mm |
445-460mm |
445-460mm |
Seat Tube Angle, Actual |
65 Degrees |
65 Degrees |
65 Degrees |
65 Degrees |
Seat Tube Angle, Effective |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
Head Tube |
65 Degrees |
65 Degrees |
65 Degrees |
65 Degrees |
Fork Offset |
52mm |
52mm |
52mm |
52mm |
Wheelbase |
1200mm |
1225mm |
1250mm |
1280mm |
Head Tube Length |
112mm |
112mm |
122mm |
122mm |
Reach |
397mm |
422mm |
442mm |
468mm |
Stack |
597mm |
597mm |
606mm |
606mm |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
