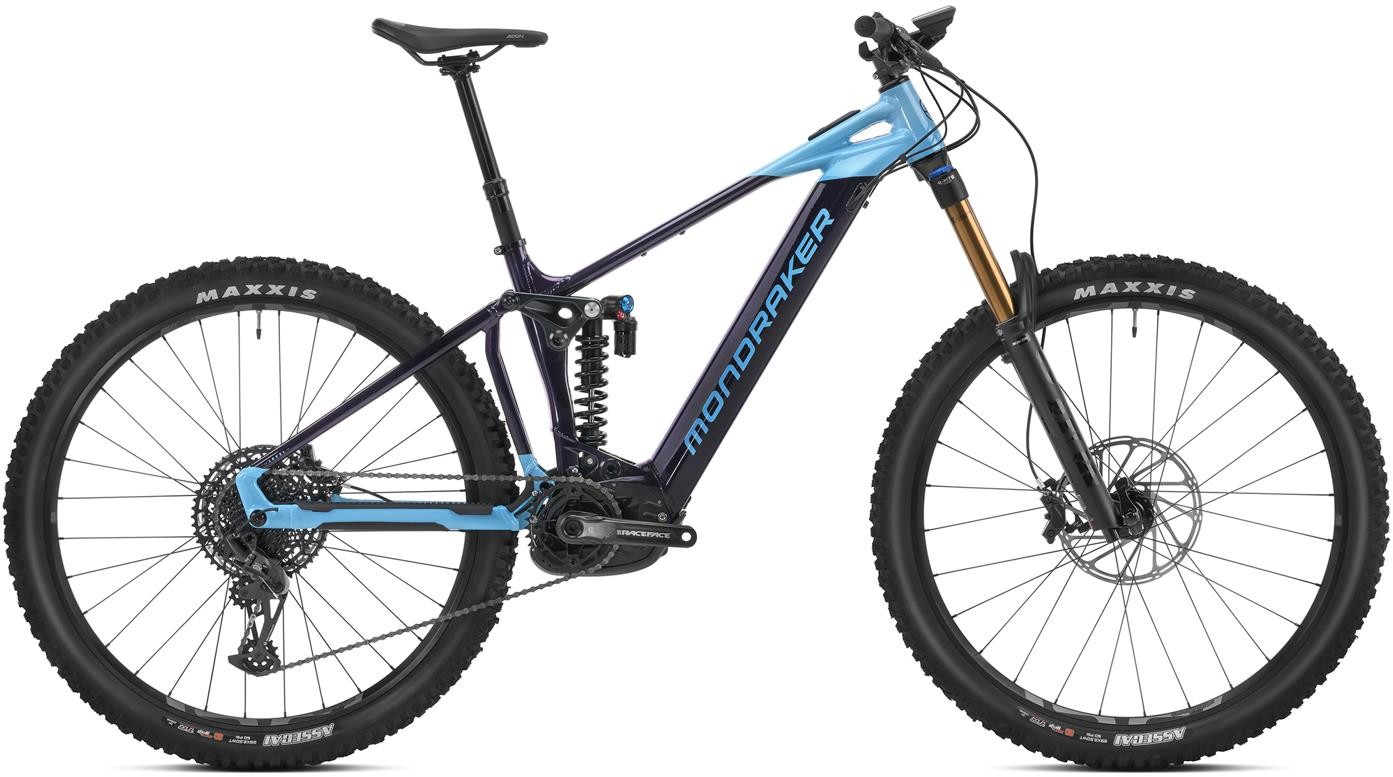

Mondraker Level RR 2023 - Electric Mountain Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, oversize 17mm axles, integrated dropout speed sensor |
Fork | Fox 38 29 Float FIT GRIP2 Factory Kashima, 180mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
Rear Shock | Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings |
Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Front Brake | Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Brake Lever | SRAM Code R, tool-free reach adjust |
Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
Speed | 12 |
Rims | e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Rear Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
Saddle | FIZIK Terra Aidon X5 145mm |
Chainset | Race Face Aeffect ebike, 165mm. Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Bottom Bracket | Integrated |
Chain | SRAM SX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1210, 11-50T, 12s |
Pedals | Resin Platform |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Performance Line CX Cruise (25Km/h) Smart System |
User Interface | Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller |
Chaser Sizing
See the table below to find the right size Mondraker Chaser.
Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
>195cm |
Size |
Small |
Small / Medium |
Medium |
Medium / Large |
Large |
Large / X Large |
Large |
Read our bike size guide for more information on sizing.
Chaser Geometry
Size |
S |
M |
L |
XL |
Seat Tube Length |
380mm |
420mm |
470mm |
500mm |
Top Tube Length |
605mm |
635mm |
660mm |
685mm |
Bottom Bracket Drop |
-15mm |
-15mm |
-15mm |
-15mm |
Bottom Bracket Height |
345mm |
345mm |
345mm |
345mm |
Chainstay Length |
475mm |
475mm |
475mm |
475mm |
Seat Angle, Actual |
75 Degrees |
75 Degrees |
75 Degrees |
75 Degrees |
Seat Tube Angle, Effective |
75 Degrees |
75 Degrees |
75 Degrees |
75 Degrees |
Head Tube Angle |
67 Degrees |
67 Degrees |
67 Degrees |
67 Degrees |
Fork Offset |
42mm |
42mm |
42mm |
42mm |
Wheelbase |
1206mm |
1238mm |
1266mm |
1290mm |
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
Reach |
450mm |
475mm |
495mm |
515mm |
Stack |
579mm |
597mm |
615mm |
624mm |
