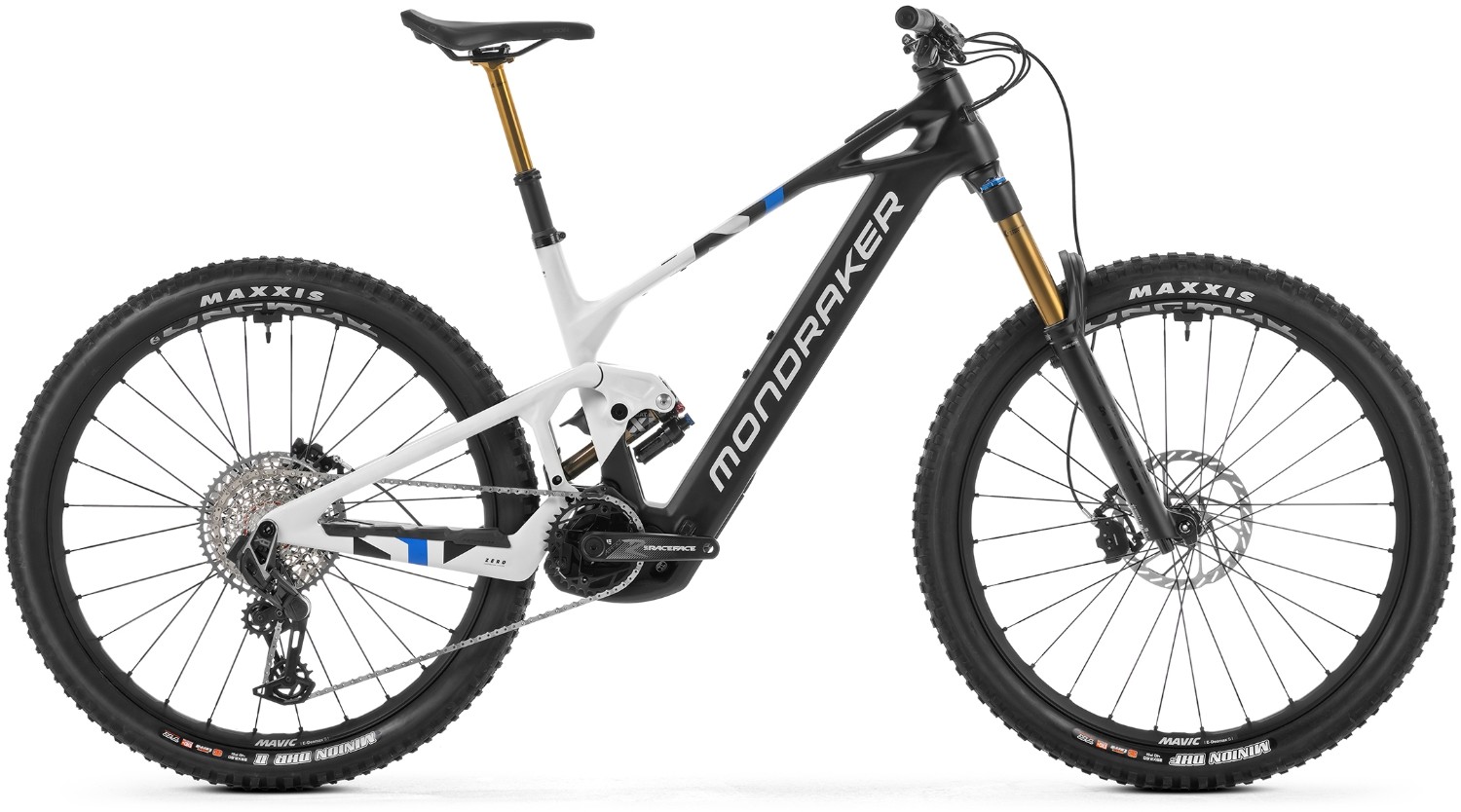

Mondraker Crafty Carbon RR S 2025 - Electric Mountain Bike
The Crafty Carbon RR S delivers trail-blazing performance with its Stealth Air Carbon frame, Bosch Performance CX motor, and premium Fox suspension. Its advanced geometry, top-tier components, and durable Maxxis tyres make it a versatile choice for demanding riders.
Key Features
- Frame: Full Stealth Air Carbon, 150mm travel, Forward Geometry, internal removable battery.
- Front Suspension: Fox 38 Float GRIPX2 Factory Kashima, 160mm travel.
- Rear Suspension: Fox Float-X Factory Kashima EVOL LV, 150mm travel.
- Drivetrain: SRAM X0 Eagle AXS, T-Type, 12-speed for precise shifting.
- Brakes: SRAM Maven Silver 4-piston, 200mm rotors for confident stopping power.
- Wheels: Mavic E-Deemax S 29″ with Maxxis Minion DHF and DHR II 29x2.6″ tyres.
- Standout Feature: ONOFF S6 carbon handlebars, 800mm wide for precise control.
- Finance: Available with 0% APR finance options.
Drive Information
- Motor: Bosch Performance Line CX GEN4 Smart System, 85Nm max torque.
- Battery: Bosch Powertube 600Wh for long-lasting rides.
- User Interface: Bosch Purion 400 display, Mini Remote, and System Controller.
The Mondraker Crafty Carbon RR S is designed for riders who demand precision and power on the trails. Its Stealth Air Carbon frame ensures a perfect blend of strength and lightweight agility. The Forward Geometry improves stability and control, while the Updated Zero Suspension System offers a responsive ride over rough terrain.
Fox Factory Kashima-coated suspension provides 160mm of front travel and 150mm at the rear, ensuring a smooth ride even on the toughest descents. The SRAM X0 Eagle AXS drivetrain delivers seamless 12-speed shifting, and the SRAM Maven Silver brakes provide reliable stopping power.
Mavic E-Deemax wheels, paired with Maxxis Minion tyres, offer excellent grip and durability for all-mountain adventures. The Bosch Performance CX motor and 600Wh battery deliver powerful assistance with a natural feel, complemented by the intuitive Purion display and controls.
Whether tackling steep climbs or navigating technical descents, the Mondraker Crafty Carbon RR S is ready to push your limits and elevate your riding experience.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, HHG internal cable routing, oversize 15mm axles |
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Rear Shock | Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Front Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever | Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust |
| Rear Mech | Sram X0 Eagle AXS, T-Type, 12s |
| Shifters | Sram Eagle AXS Pod MMX, 12s |
| Speed | 12 |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Seat Post | Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm |
| Saddle | Ergon SM-10 |
| Chainset | Race Face Aeffect-R ebike, 160mm. Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |
| Battery Size (WH) | Bosch PowerTube 600Wh |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| User Interface | Purion 400 / Bosch Mini Remote / Bosch System Controller |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
