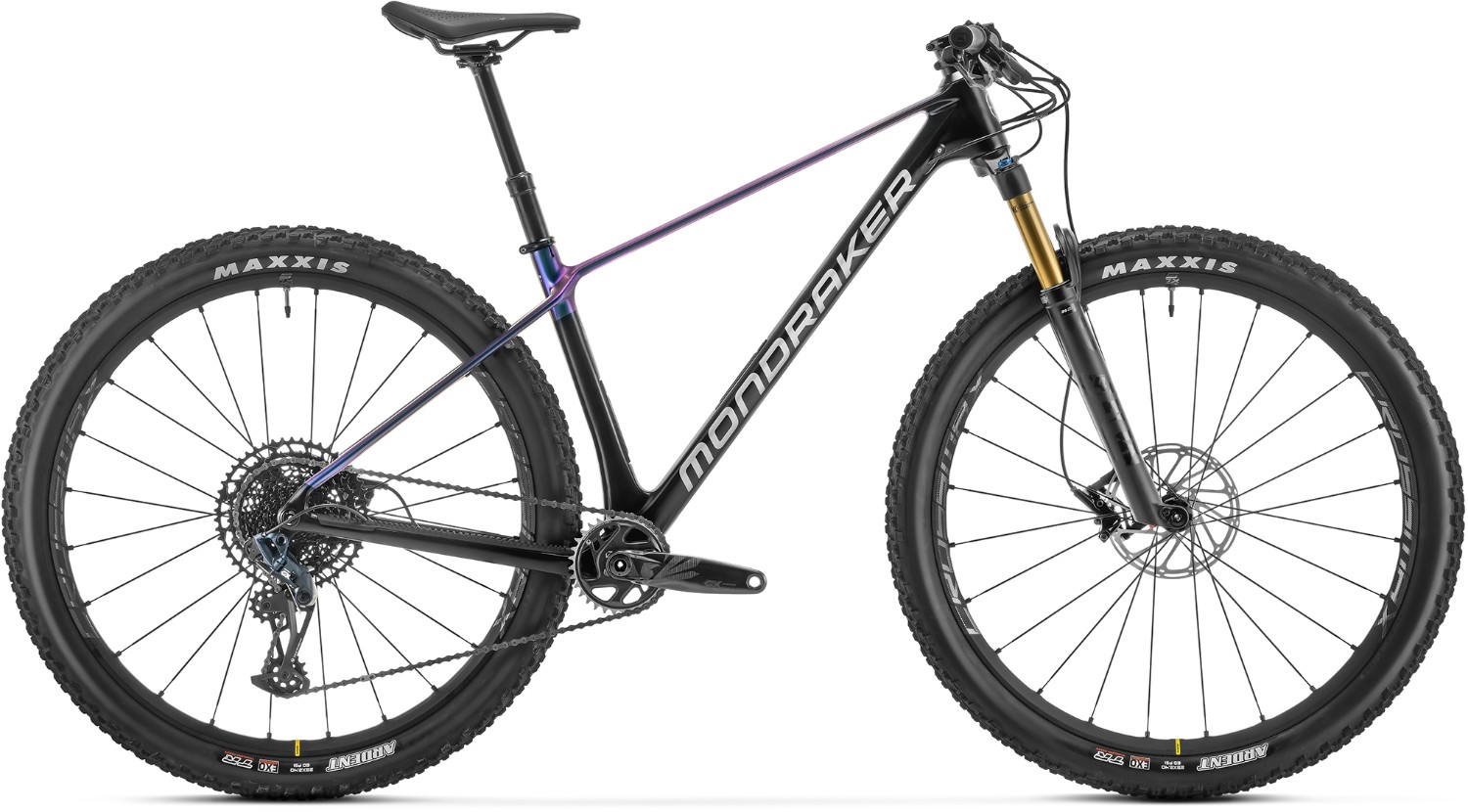

Mondraker Chrono Carbon DC RR Mountain Bike 2024 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible |
| Fork | Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload |
| Headset | Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45° |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Bars | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Front Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
| Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub |
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Tyre | Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
| Rear Tyre | Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Saddle | Mondraker MDK Series, SRX, steel rail |
| Chainset | Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55. 34T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Pedals | Resin Platform |
| Weight | 11,6 kg |
Chrono Sizing
See the table below to find the right size Mondraker Chrono.
|
Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
>195cm |
|
Size |
|
Medium |
Medium/Large |
Large |
Large / X Large |
X Large |
X Large |
Read our bike size guide for more information on sizing.
Chrono Geometry
|
Frame Size |
S |
M |
L |
XL |
|
Seat Tube Length |
295mm |
430mm |
5470mm |
520mm |
|
Top Tube Length |
590mm |
610mm |
630mm |
650mm |
|
Bottom Bracket Drop |
-65mm |
-65mm |
-65mm |
-65mm |
|
Bottom Bracket Height |
305mm |
305mm |
305mm |
305mm |
|
Chain Stay Length |
430mm |
430mm |
430mm |
430mm |
|
Seat Tube Angle, Actual |
72 Degrees |
72 Degrees |
72 Degrees |
72 Degrees |
|
Seat Tube, Effective |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
|
Head Tube Angle |
70 Degrees |
70 Degrees |
70 Degrees |
70 Degrees |
|
Fork Offset |
46mm |
46mm |
46mm |
46mm |
|
Wheelbase |
1082mm |
1101mm |
1122mm |
1143mm |
|
Head Tube Length |
85mm |
90mm |
100mm |
115mm |
|
Reach |
411mm |
430mm |
447mm |
463m |
|
Stack |
605mm |
610mm |
619mm |
632mm |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
