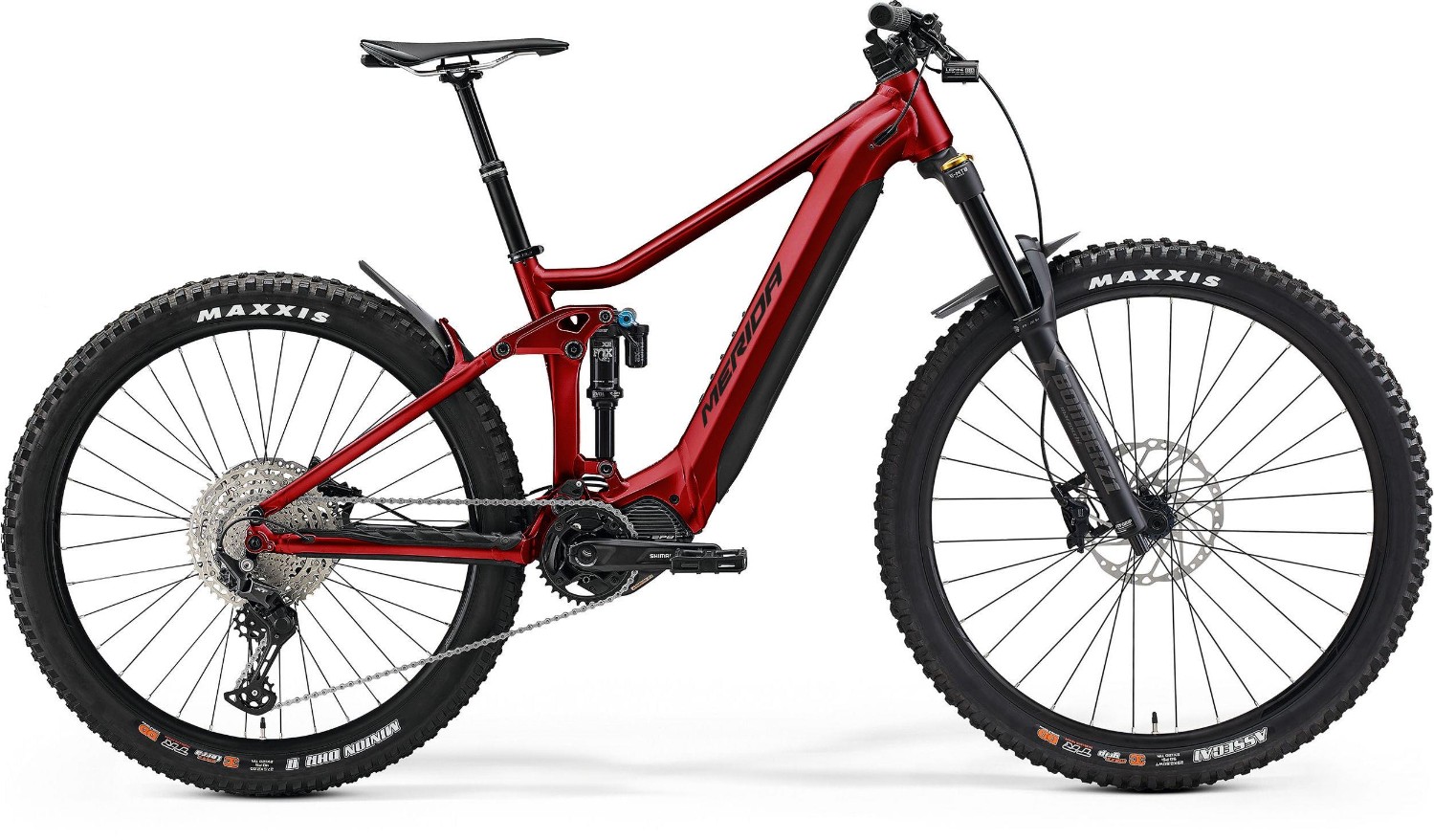

Merida eOne-Sixty 700 2023 - Electric Mountain Bike
The Merida eOne-Sixty mountain bike is a hard-hitting enduro-ready e-bike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST' in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few.
Key features:
- Hydroformed 6061 Double butted aluminium with integrated battery frame
- Marzocchi Z1 Ebike+ forks with 160mm of bump soaking travel
- FOX Float DPX2 shock takes care of the 160mm of rear travel
- Shimano 1x12 gears give enough range to climb anything
- Shimano SLX brakes offer all weather stopping power
- Sizes: S (41.5cm) , M (43cm) L (45cm) XL (47cm)
- Colours: Red/Black, Teal/Anthracite
- The Merida EOne-Sixty 700 is available with 0% APR finance
Drive information:
- Motor: Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
- Battery: 630 Wh (xs frame size - 504Wh)
- Interface: Shimano SC-E7000
The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry.
To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite III - Hydroformed 6061 double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8". |
| Fork | Marzocchi Z1 Ebike+; Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6" |
| Rear Shock | Fox Float DPX2 Performance; platform |
| Headset | Merida-8152 |
| Stem | Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
| Bars | Merida Expert eTR; 780mm wide; 20mm rise |
| Front Brake | Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor |
| Rear Brake | Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor |
| Brake Lever | Shimano SLX |
| Rear Mech | Shimano XT RDM8100 Shadow+ 12 |
| Shifters | Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever |
| Speed | 12 |
| Rims | Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Shimano SLX; 110x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip |
| Rear Tyre | Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR |
| Seat Post | Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M/L), 170mm (XL) |
| Saddle | Merida Expert CC; V-mount including Merida multitool |
| Chainset | Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e12T EPT |
| Cassette | Shimano M6100 10-51 teet |
| Pedals | VP Components, VPE-527 |
| Battery Size (WH) | 630 Wh (xs = 504) |
| Motor | Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm |
| User Interface | Shimano SC-E7000 |
Merida eOne-Sixty 2023 Size Chart
|
Size |
Height cm |
Height feet & Inches |
|
XS (41cm) |
157 – 165 |
5’1” – 5’5” |
|
S (42cm) |
165 -171 |
5’5” – 5’7” |
|
M (44cm) |
171 - 179 |
5’7” – 5’11” |
|
L (47cm) |
179 - 187 |
5’11” – 6’2” |
|
XL (50cm) |
187 - 198 |
6’2” – 6’6” |
Merida eOne-Sixty 2023 Geometry
|
Frame Size |
XS |
S |
M |
L |
XL |
|
Tire Sizes |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
29/27.5" |
|
Frame Size cm |
41 |
42 |
44 |
47 |
50 |
|
St Seat Tube mm |
405 |
420 |
440 |
470 |
500 |
|
Top Tube mm |
563 |
584 |
605 |
629 |
652 |
|
Chain Stay Length mm |
439.5 |
439.5 |
439.5 |
439.5 |
439.5 |
|
Head Tube Angle |
65.5 |
65.5 |
65.5 |
65.5 |
65.5 |
|
Seat Tube Angle |
75.5 |
75.5 |
75.5 |
75.5 |
75.5 |
|
Bottom Bracket Drop mm |
17.05.20 |
17.5 |
17.5 |
17.5 |
17.5 |
|
Head Tube mm |
110 |
115 |
120 |
135 |
150 |
|
Fork Length mm |
571 |
571 |
571 |
571 |
571 |
|
Reach mm |
400 |
420 |
440 |
460 |
480 |
|
S Stack mm |
628.5 |
633 |
637.5 |
651.5 |
665 |
|
Wheelbase mm |
1168 |
1190 |
1212 |
1238.5 |
1265 |
|
Stand Over Height mm |
742 |
737 |
733 |
740 |
754 |
What size frame do I need if I am between sizes? - read here
