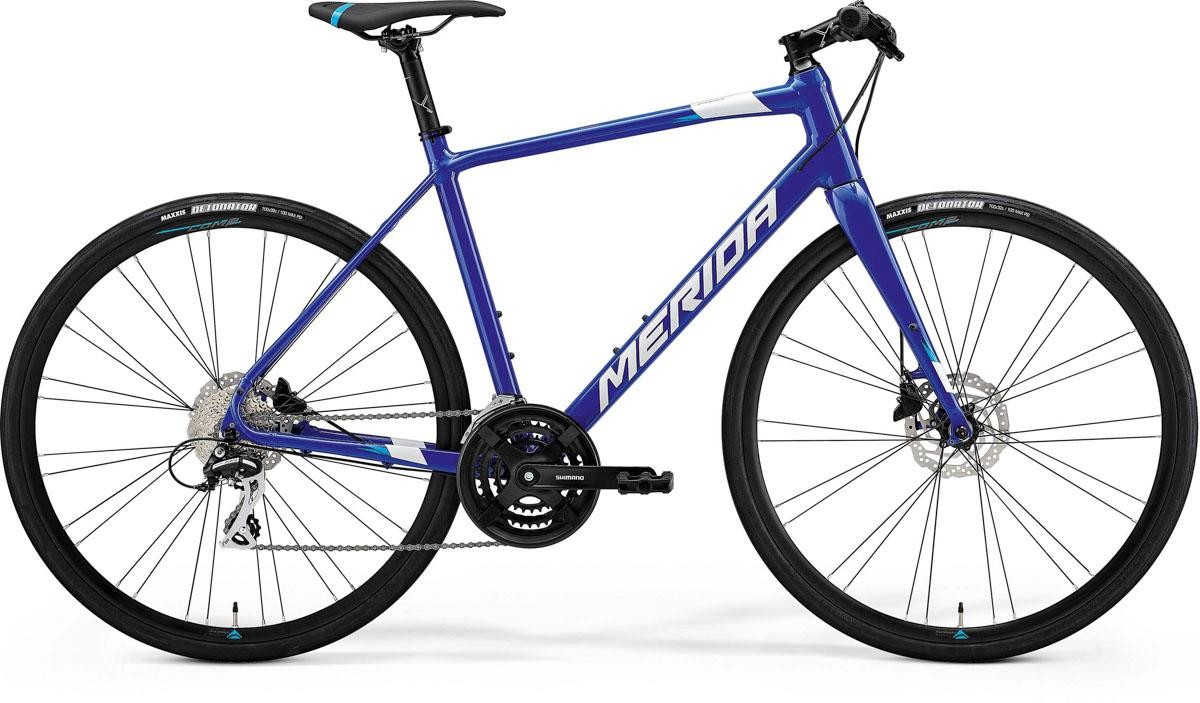

Merida Speeder 100 2021 - Hybrid Sports Bike
Redesigned for 2021 with more sporty geometry with longer reach. The frame can accomodate wider tyres making it more versatile - up to 37mm (32mm with mudguards). All models run hydraulic disc brakes for all weather reliability and come with a tapered carbon fork for light weight and steering precision. Speeder 100 highlights - 24 speed hybrid with Shimano EZ fire shifters, Shimano chainset and Shimano hydraulic disc brakes
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lightweight 6066 triple butted and hydroformed aluminium frame with smooth welding, and internal cable routing. Complete with mudguard and rack mounts |
| Fork | Speeder CF2; Tapered; carbon |
| Headset | Merida M2341 Neck |
| Stem | Merida Comp CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 80 mm-XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
| Bars | Merida Comp TK; aluminium; 600mm wide; Flat |
| Front Brake | Shimano BR-MT200 with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano BR-MT200 with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano EF505 |
| Front Mech | Shimano TY710 |
| Rear Mech | Shimano Acera-X |
| Shifters | Shimano ST-EF505-8 EZ-fire |
| Speed | 24 |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm profile; Material: aluminium |
| Front Hub | Joytech D471SBT-SC-CL; 100x9mm; 28 spokes; centerlock; Quick Release |
| Rear Hub | Shimano TX505; 135x9mm; 32 spokes; Centerlock; Quick release |
| Spokes | Black stainless |
| Front Tyre | Maxxis Detonator; 700 x 32C; wire bead |
| Rear Tyre | Maxxis Detonator; 700 x 32C; wire bead |
| Seat Post | Merida Comp CC; aluminium; 30.9mm diameter; 12mm lay back |
| Saddle | Merida Comp SL; V-mount |
| Chainset | Shimano TY301; 48-38-28 teeth chainwheel with 170 mm all sizes length crank |
| Bottom Bracket | FSA TH-7420ST, Cartridge Bearing |
| Chain | Sunrace CN-M84 |
| Cassette | Sunrace CSM668; 11-32 teeth; 8 speed |
| Pedals | VP Components, VPE-891 |
Merida Speeder Size Chart
|
|
Height (cm) |
Height (in) |
|
XS |
155 - 164 |
5' 1" - 5' 5" |
|
S |
164 - 169 |
5' 5" - 5' 7" |
|
S - M |
169 - 175 |
5' 7" - 5' 9" |
|
M - L |
175 - 180 |
5' 9" - 5' 11" |
|
L |
180 - 186 |
5' 11" - 6' 1" |
|
XL |
186 - 195 |
6' 1" - 6' 5" |
What size frame do I need if I am between sizes? - read here
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida Speeder 100 2021 - Hybrid Sports Bike.
This product is no longer available.
