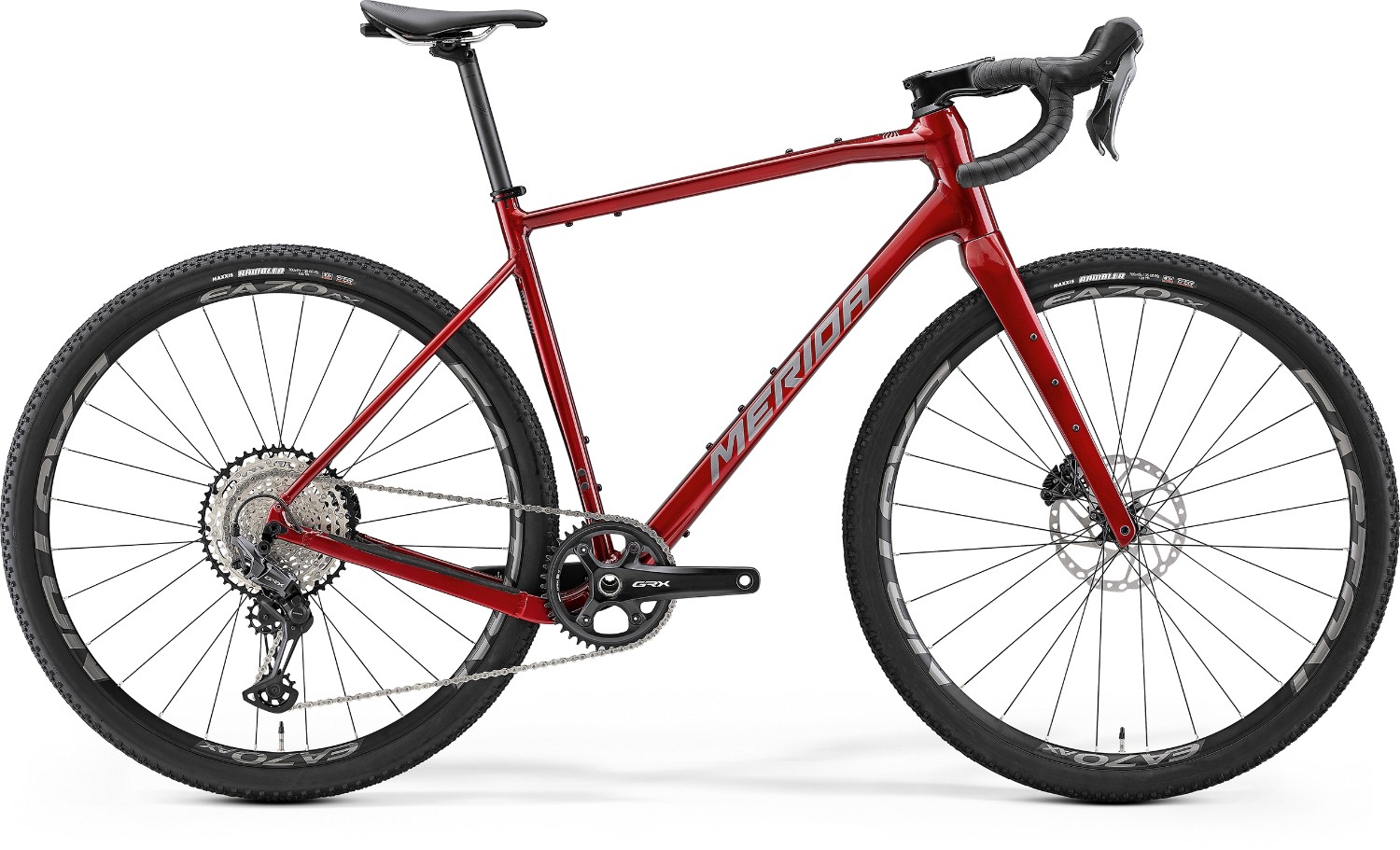

Merida Silex 700 2024 - Gravel Bike
The Merida Silex 700 is built on the foundation of Merida's ground-breaking design philosophy. Its Lite II 6066 triple-butted hydroformed aluminium frame, featuring internal cable routing and inboard disc mounts, provides exceptional stability and control. With a 1.5-degree slacker head angle and larger volume tyres, it conquers rough terrains with ease. The bike's powerful hydraulic disc brakes, Shimano GRX820 drivetrain, and Easton EA70 AX wheelset ensure unparalleled performance on any trail, making every ride an adventure.
Key Features:
- Lite II 6066 triple-butted hydroformed aluminium frame with internal cable routing and threaded BB
- Silex CF2 II full carbon fork with tapered steerer and 100 x 12mm axle standard
- Shimano GRX820 1x12-speed for precise and smooth shifting on challenging terrains
- Shimano GRX820 hydraulic disc brake calipers with 160mm rotors for reliable stopping power
- Easton EA70 AX wheelset with 24mm inner rim width and 20mm rim depth for durability and control
- Maxxis Rambler 45mm tyres with Kevlar bead, folding, and EXO technology for superior grip and puncture resistance
- Available with 0% Finance
The Silex 700 offers rugged performance with exceptional comfort. Its innovative design, coupled with a 1x12-speed drivetrain, ensures a seamless riding experience. This bike makes off-road adventures more accessible and exciting than ever before.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II - 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with mudguards) |
| Fork | Silex CF2 II; Full carbon; tapered steerer, 100 x 12mm axle standard; Max tyre size: 700 x 45c (42c with mudguards) |
| Headset | Merida-8158 Semi Integrated HS |
| Stem | Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise. Stem length: 80mm all sizes with Garmin + GoPro/Light Mount |
| Bars | Merida Expert GRII; aluminium; Width: 400mm (XS,S), 420mm (M) , 440mm (L/XL) |
| Front Brake | Shimano GRX820 hydraulic disc brake caliper with Shimano RT64 160mm rotor |
| Rear Brake | Shimano GRX820 hydraulic disc brake caliper with Shimano RT64 160mm rotor |
| Brake Lever | Shimano GRX820 |
| Rear Mech | Shimano GRX822 |
| Shifters | Shimano GRX820 |
| Speed | 12 |
| Rims | Part of wheelset - Easton EA70 AX; 24mm inner rim width; 20mm rim depth; aluminium |
| Front Hub | Part of wheelset - Easton EA70 AX; 100x12mm; Centerlock; aluminium with Merida Expert TR axle |
| Rear Hub | Part of wheelset - Easton EA70 AX; 42x12mm; Centerlock; aluminium with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | part of wheelset |
| Front Tyre | Maxxis Rambler; 700 x 45C; Kevlar bead, folding; TR; EXO |
| Rear Tyre | Maxxis Rambler; 700 x 45C; Kevlar bead, folding; TR; EXO |
| Seat Post | MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, material: Carbon |
| Saddle | Merida Expert SL with V-mount; including Merida minitool |
| Chainset | Shimano GRX820; 42 tooth chainset. Crank length: 170mm (XS,S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | Shimano SM-BBR60 |
| Chain | Shimano M7100 |
| Cassette | Shimano CS-M7100; 10-51 teeth; 12 speed |
| Pedals | Resin Platform |
Merida Silex 2024 Sizing
|
|
XS |
S |
M |
L |
XL |
|
Rider Height (Inch) |
5’3" – 5’5” |
5’4" – 5’9” |
5’7" – 5’11” |
5’10" – 6’2” |
6'1" – 6’5” |
|
Ride Height (cm) |
162 - 167 |
165 - 177 |
173 - 185 |
181 - 192 |
188 - 200 |
Merida Silex 2024 Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| TYRE SIZE | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBE LENGTH | 440mm | 470mm | 500mm | 530mm | 560mm |
| TOP TUBE LENGTH | 550mm | 565mm | 580mm | 600mm | 620mm |
| CHAIN STAY LENGTH | 430mm | 430mm | 430mm | 430mm | 430mm |
| HEAD TUBE ANGLE | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg |
| SEAT TUBE ANGLE | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg |
| BOTTOM BRACKET DROP | 75mm | 75mm | 75mm | 75mm | 75mm |
| HEAD LENGTH | 130mm | 150mm | 170mm | 190mm | 210mm |
| FORK LENGTH | 415mm | 415mm | 415mm | 415mm | 415mm |
| REACH | 392mm | 402mm | 412mm | 426mm | 441mm |
| STACK | 570mm | 588mm | 607mm | 626mm | 645mm |
| WHEEL BASE | 1048mm | 1065mm | 1082mm | 1104mm | 1126mm |
| STAND OVER HEIGHT | 744mm | 771mm | 798mm | 825mm | 852mm |
