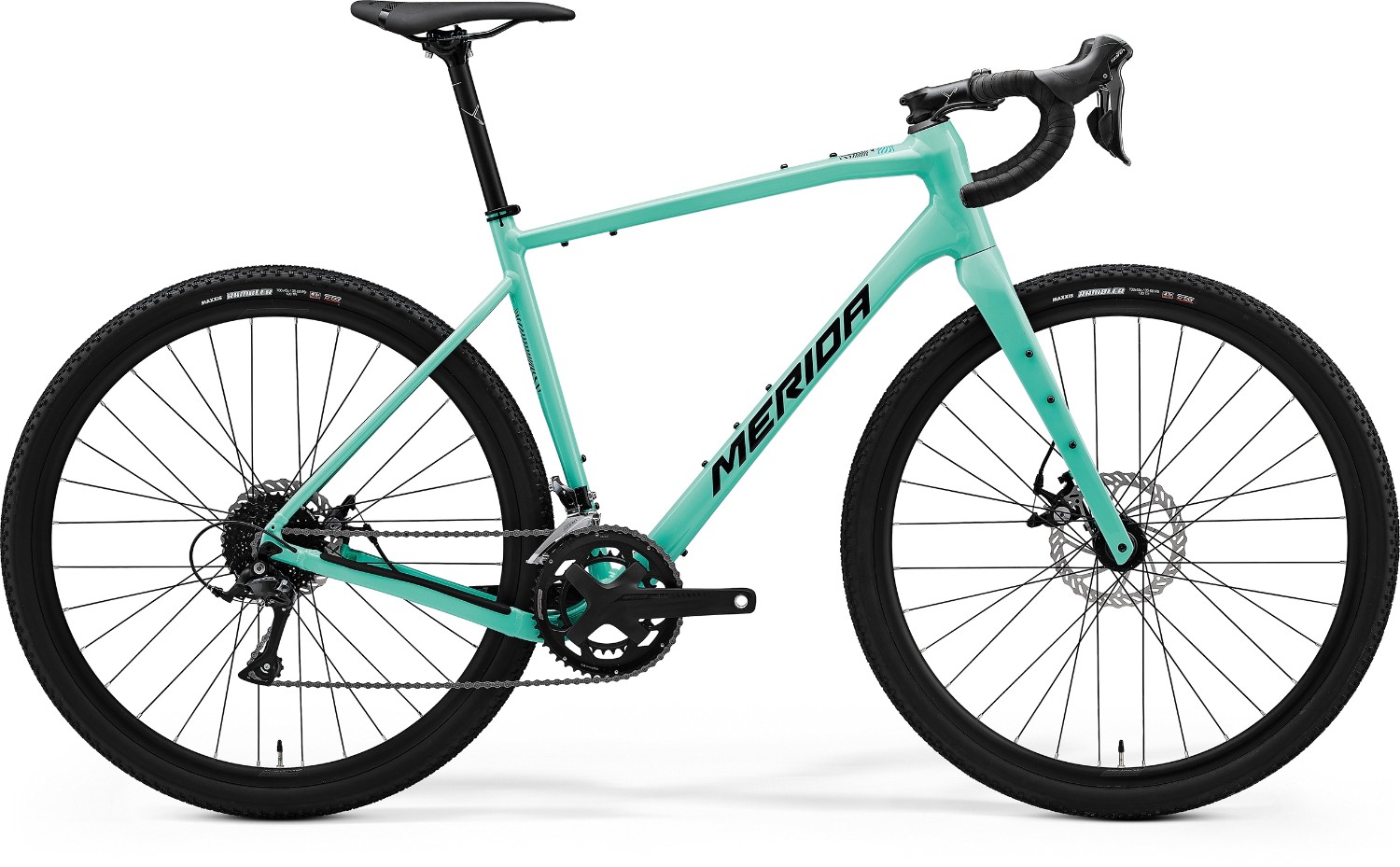

Merida Silex 200 2024 - Gravel Bike
The Merida Silex 200 is engineered for the ultimate off-road experience. Its Lite II 6066 triple-butted hydroformed aluminium frame, coupled with a full carbon Silex CF2 II fork, offers remarkable stability and agility. The bike's modern MTB-inspired geometry, including a 1.5-degree slacker head angle and larger volume tyres, ensures confident off-road handling. With a Shimano Sora 2x9-speed drivetrain, mechanical disc brakes, and Maxxis Rambler 700 x 45c tyres, the Silex 200 delivers precision, reliability, and exceptional grip on any surface.
Key Features:
- Lite II 6066 triple-butted hydroformed aluminium frame with internal cable routing
- Silex CF2 II full carbon with tapered steerer, 100 x 12mm axle standard
- Shimano Sora 2x9-speed for precise shifting and versatile gearing options on varied terrains
- Promax DSK-330R mechanical disc brake calipers with 180mm front and 160mm rear rotors for consistent stopping power.
- Merida Comp SL II rims with 23mm inner rim width, 24mm rim depth, and tubeless readiness for superior traction and durability.
- Maxxis Rambler 700 x 45c with Kevlar bead, folding, and EXO technology for puncture resistance and excellent off-road performance.
- Available with 0% Finance
The Silex 200 is accessible to all adventure enthusiasts. Its sleek design and versatile components make it the perfect choice for riders who crave the thrill of exploring new horizons and riding day to day. Discover the joy of off-road cycling with the Merida Silex 200.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II - 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with mudguards) |
| Fork | Silex CF2 II; Full carbon; tapered steerer, 100 x 12mm axle standard; Max tyre size: 700 x 45c (42c with mudguards) |
| Headset | Merida-8158 Semi Integrated HS |
| Stem | Merida Comp CC; 31.8mm diameter; aluminium; -7 degree rise. Stem length: 80mm all sizes |
| Bars | Merida Expert GRII; aluminium; Width: 400mm (XS,S), 420mm (M) , 440mm (L/XL) |
| Front Brake | Promax DSK-330R mechanical disc brake caliper with Promax 180V 180mm rotor |
| Rear Brake | Promax DSK-330R mechanical disc brake caliper with Promax 160V 160mm rotor |
| Brake Lever | Shimano Sora |
| Front Mech | Shimano Sora |
| Rear Mech | Shimano Sora; GS |
| Shifters | Shimano Sora |
| Speed | 18 |
| Rims | Merida Comp SL II; 23mm inner rim width; 24mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | VP 173SB; 100x12mm; 32 spokes with Merida Expert TR axle |
| Rear Hub | VP 273SB; 142x12mm; 32 spokes with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Maxxis Rambler; 700 x 45C; Kevlar bead, folding; TR; EXO |
| Rear Tyre | Maxxis Rambler; 700 x 45C; Kevlar bead, folding; TR; EXO |
| Seat Post | MERIDA COMP CC, material: aluminium, 27.2mm diameter, 5mm setback |
| Saddle | Merida Comp SL with V-mount |
| Chainset | FSA Omega; 48-32 tooth chainset. Crank length: 170mm (XS,S), 172.5mm (M), 175mm (L,XL) |
| Bottom Bracket | FSA MegaExo BB-4000 |
| Chain | KMC M99 |
| Cassette | Shimano CS-HG200; 11-34 teeth; 9 speed |
| Pedals | Resin Platform |
Merida Silex 2024 Sizing
|
|
XS |
S |
M |
L |
XL |
|
Rider Height (Inch) |
5’3" – 5’5” |
5’4" – 5’9” |
5’7" – 5’11” |
5’10" – 6’2” |
6'1" – 6’5” |
|
Ride Height (cm) |
162 - 167 |
165 - 177 |
173 - 185 |
181 - 192 |
188 - 200 |
Merida Silex 2024 Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| TYRE SIZE | 28" | 28" | 28" | 28" | 28" |
| SEAT TUBE LENGTH | 440mm | 470mm | 500mm | 530mm | 560mm |
| TOP TUBE LENGTH | 550mm | 565mm | 580mm | 600mm | 620mm |
| CHAIN STAY LENGTH | 430mm | 430mm | 430mm | 430mm | 430mm |
| HEAD TUBE ANGLE | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg | 69.5 deg |
| SEAT TUBE ANGLE | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg | 74.5 deg |
| BOTTOM BRACKET DROP | 75mm | 75mm | 75mm | 75mm | 75mm |
| HEAD LENGTH | 130mm | 150mm | 170mm | 190mm | 210mm |
| FORK LENGTH | 415mm | 415mm | 415mm | 415mm | 415mm |
| REACH | 392mm | 402mm | 412mm | 426mm | 441mm |
| STACK | 570mm | 588mm | 607mm | 626mm | 645mm |
| WHEEL BASE | 1048mm | 1065mm | 1082mm | 1104mm | 1126mm |
| STAND OVER HEIGHT | 744mm | 771mm | 798mm | 825mm | 852mm |
