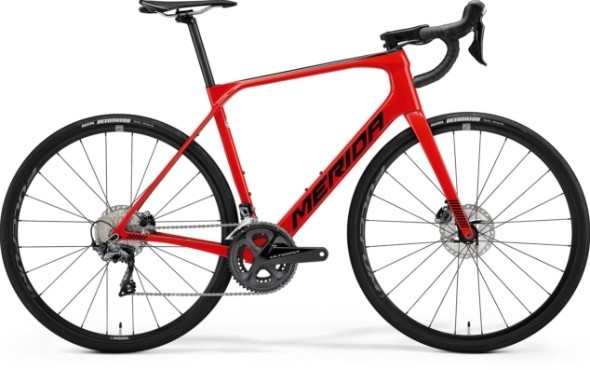

Merida Scultura Endurance 6000 - Nearly New – XL 2023 - Road Bike

Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | CF3 carbon, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c |
Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Max. tyre size: 700 x 35c (700 x 32c with mudguard) |
Headset | Merida-8151 Semi integrated |
Stem | Merida Expert CW; aluminium; 31.8mm diameter; -8 degree rise - Stem length: 80mm (XXS), 90mm (XS), 100mm (S/M), 110mm (L), 120mm (XL) |
Bars | Merida Expert SL; aluminium; Width: 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL) |
Front Brake | Shimano Ultegra; hydraulic disc brake caliper with Shimano MT800; 160mm rotor |
Rear Brake | Shimano Ultegra; hydraulic disc brake caliper with Shimano RT800; 160mm rotor |
Front Mech | Shimano Ultegra |
Rear Mech | Shimano Ultegra; GS |
Shifters | Shimano Ultegra Disc |
Speed | 22 |
Rims | Part of wheelset - Fulcrum Racing 800 DB; 19mm inner rim width; 34mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
Front Hub | Part of wheelset - Fulcrum Racing 800 DB; 100x12mm; Center lock; With Merida Expert SL axle |
Rear Hub | Part of wheelset - Fulcrum Racing 800 DB; 142x12mm; Center lock; . With Merida Expert SL axle; including removable lever; 6/4mm allen key |
Spokes | part of wheelset |
Front Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead; folding |
Rear Tyre | Maxxis Detonator; 700 x 32C; Kevlar bead; folding |
Seat Post | Merida Expert CC; Carbon; 27.2mm diameter; 15mm lay back |
Saddle | Merida Expert SL; V-mount; including Merida minitool |
Chainset | Shimano Ultegra; 50-34 tooth chainset. Crank length: 165mm (XXS,XS), 170mm (S), 172.5mm (M), 175mm (L,XL) |
Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
Chain | KMC X11 |
Cassette | Shimano CS-HG700 11-34 teeth |
Pedals | Resin Platform |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida Scultura Endurance 6000 - Nearly New – XL 2023 - Road Bike.
This product is no longer available.
