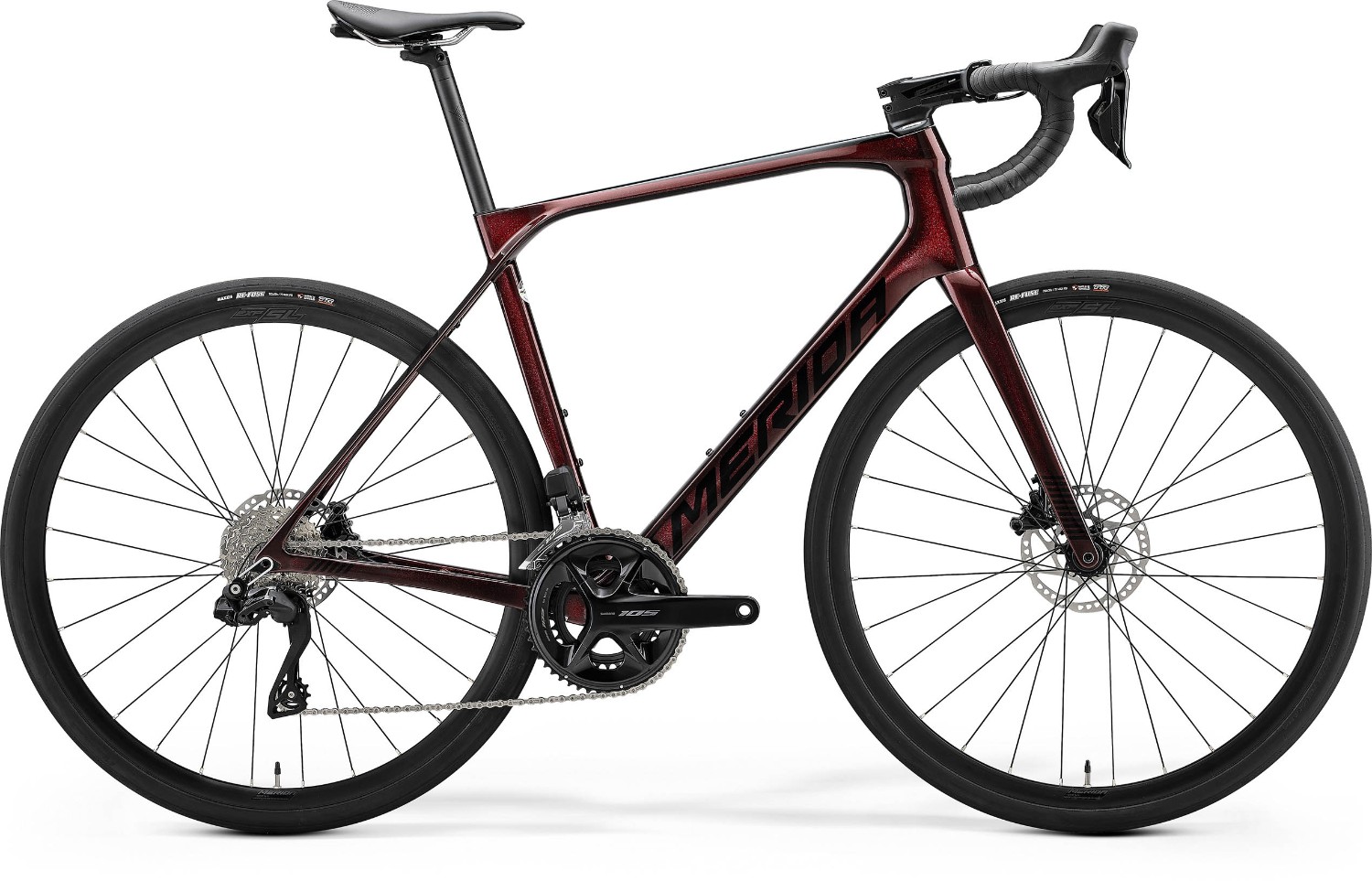

Merida Scultura Endurance 6000 2024 - Road Bike
Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.
The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed
To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.
Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.
All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard) |
| Fork | Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard) |
| Headset | FSA ACR |
| Stem | FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S,M), 110mm (L), 120mm (XL) |
| Bars | Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL) |
| Front Brake | Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor |
| Rear Brake | Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor |
| Brake Lever | Shimano 105 |
| Front Mech | Shimano 105 Di2 |
| Rear Mech | Shimano 105 Di2 |
| Shifters | Shimano 105 disc Di2 |
| Speed | 24 |
| Rims | Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included) |
| Front Hub | Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Comp SL axle |
| Rear Hub | Joytech D872SB; 12x142mm; 28 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key |
| Spokes | Double Butted Black stainless |
| Front Tyre | Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding |
| Rear Tyre | Maxxis Re-Fuse; 700 x 32C; Kevlar bead, folding |
| Seat Post | Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon |
| Saddle | Merida Expert SL with V-mount; including Merida minitool |
| Chainset | Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL) |
| Bottom Bracket | Shimano BB71-41B, Pressfit 86.5 |
| Chain | Shimano CN-M6100-12 |
| Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
| Pedals | Not Included |
Merida Scultura Endurance Size Chart
| FRAME SIZE | HEIGHT (cm) | HEIGHT (ft) |
| XXS | 150 - 158 | 4'11" - 5'2" |
| XS | 159 - 165 | 5'3" - 5'5" |
| S | 166 - 173 | 5'5" - 5'8" |
| M | 174 - 182 | 5'9" - 5'11" |
| L | 183 - 189 | 6'0" - 6'2" |
| XL | 190 - 200 | 6'3" - 6'7" |
