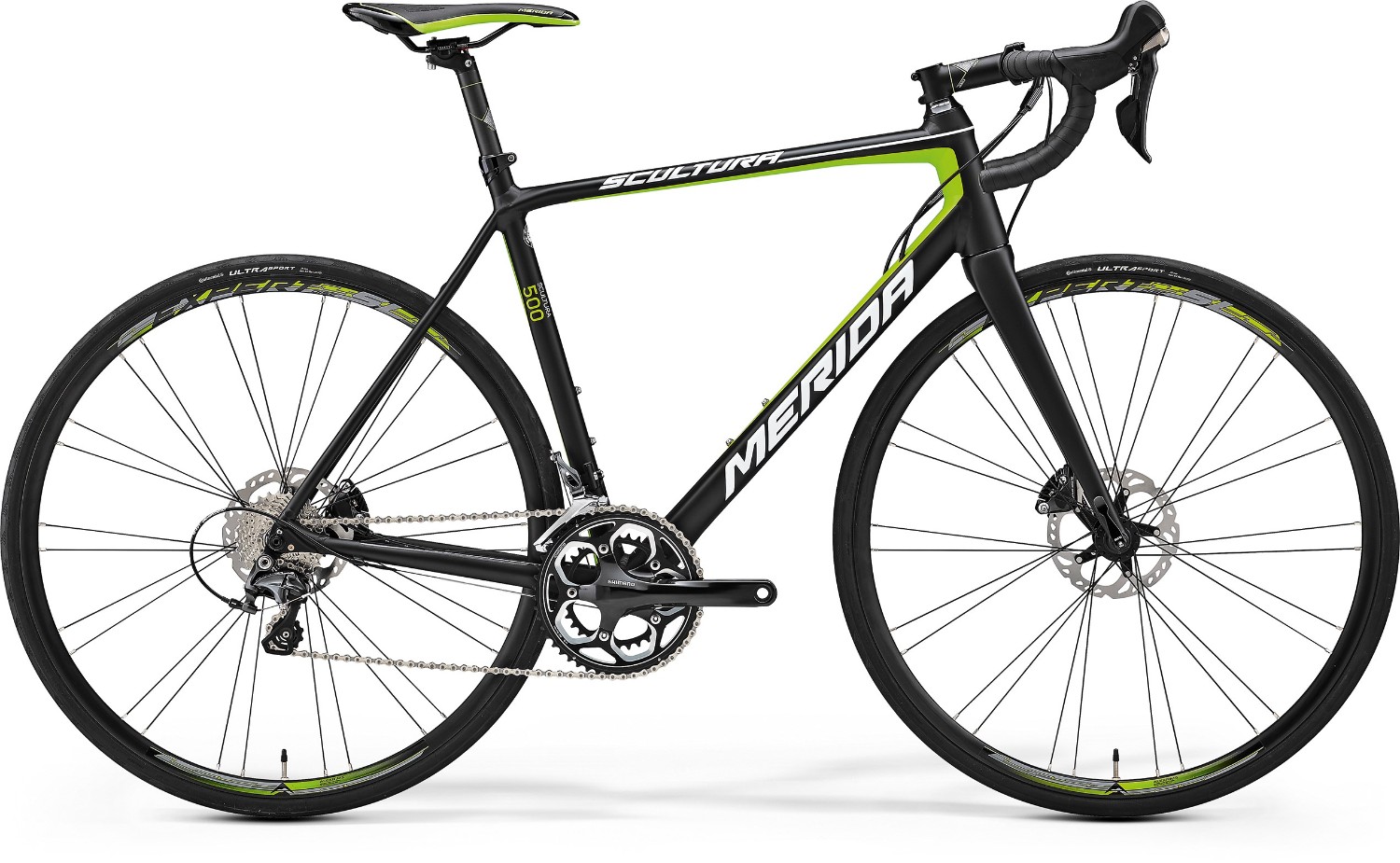

Merida Scultura 500 Disc 2017 - Road Bike

With the Merida Scultura Disc 500 road bike you’re getting an advanced aluminium frame with racing pedigree and new for this year – disc brakes.

The Scultura Disc 500 is built with a lightweight 6066 aluminium frame with triple butted and hydroformed tubes for the best strength to weight ratio. Flex stay seat stays (only 10mm thick) soak up road vibrations for comfort on rough conditions.

Up front a carbon fork reduces frame weight and helps absorb road impact. When matched to an X-taper headtube the front end is super stiff for precision cornering.

Clad to the frame is a pro level Shimano Ultegra 2x11 speed drivetrain offering super crisp and precise shifting across a wide range of gears (one step down from top of line Dura Ace). Powerful Shimano hydraulic disc brakes offer consistent and controlled braking in all weather conditions.

From road races to sportives and the morning commute, the Merida Scultura Disc 500 is a versatile all-rounder road bike.

Key Features

• Very lightweight aluminium frame
• Scultura Composite fork for precision cornering
• Shimano disc brakes for confidence in all weather
• Smooth & precise 2x11 speed Shimano Ultegra drivetrain
• Smooth rolling Merida wheels
• Size: 44cm, 47cm, 50cm, 54cm, 56cm, 59cm
• Colour: Green/Matt Black
• The Merida Scultura Disc 500 is available on 0% APR finance

The Merida Scultura 500 Disc 2017 Features are:

Frame: Lightweight 6066 aluminium triple butted frame with tapered headtube for precise steering and Pressfit 86 bb for pedalling stiffness. Internal cable routing and aero profiled tubing.

Fork: Full carbon with tapered carbon steerer and 12mm bolt through

Headset: FSA BB410P/55E 1-1/8"/1.5" with H2246A:15mm neck H:19L 20.6L

Bars: Merida Expert double butted 6061 aluminium compact drop

Stem: Merida Expert 3d forged 6061 aluminium - 5 degrees

Speed: 22

Front Mech: Shimano Ultegra double

Rear Mech: Shimano Ultegra 11 speed

Shifters Shimano Ultegra disc, 22 speed

Chainset: Shimano RS500 50-34

Bottom Bracket: Pressfit 86

Cassette: Shimano CS-5800, 11 speed,11-28

Chain: KMC X11, 11 speed

Front Brake: Shimano RS805 hydraulic disc, 160mm rotor

Rear Brake: Shimano RS805 hydraulic disc, 160mm rotor

Rims: Merida Expert SL disc - 22mm profile, 17mm inner width

Front Hub: Merida alloy centrelock disc hub with 12mm bolt through axle

Rear Hub: Merida alloy centrelock disc hub with 12mm bolt through axle

Spokes: Double butted stainless steel (Black)

Tyres: Continental Ultra Sport II 25mm Kevlar bead Front, Continental Ultra Sport II 25mm Kevlar bead Rear

Seatpost: Merida Expert carbon 27.2mm with 15mm lay back

Pedals: Not Included
