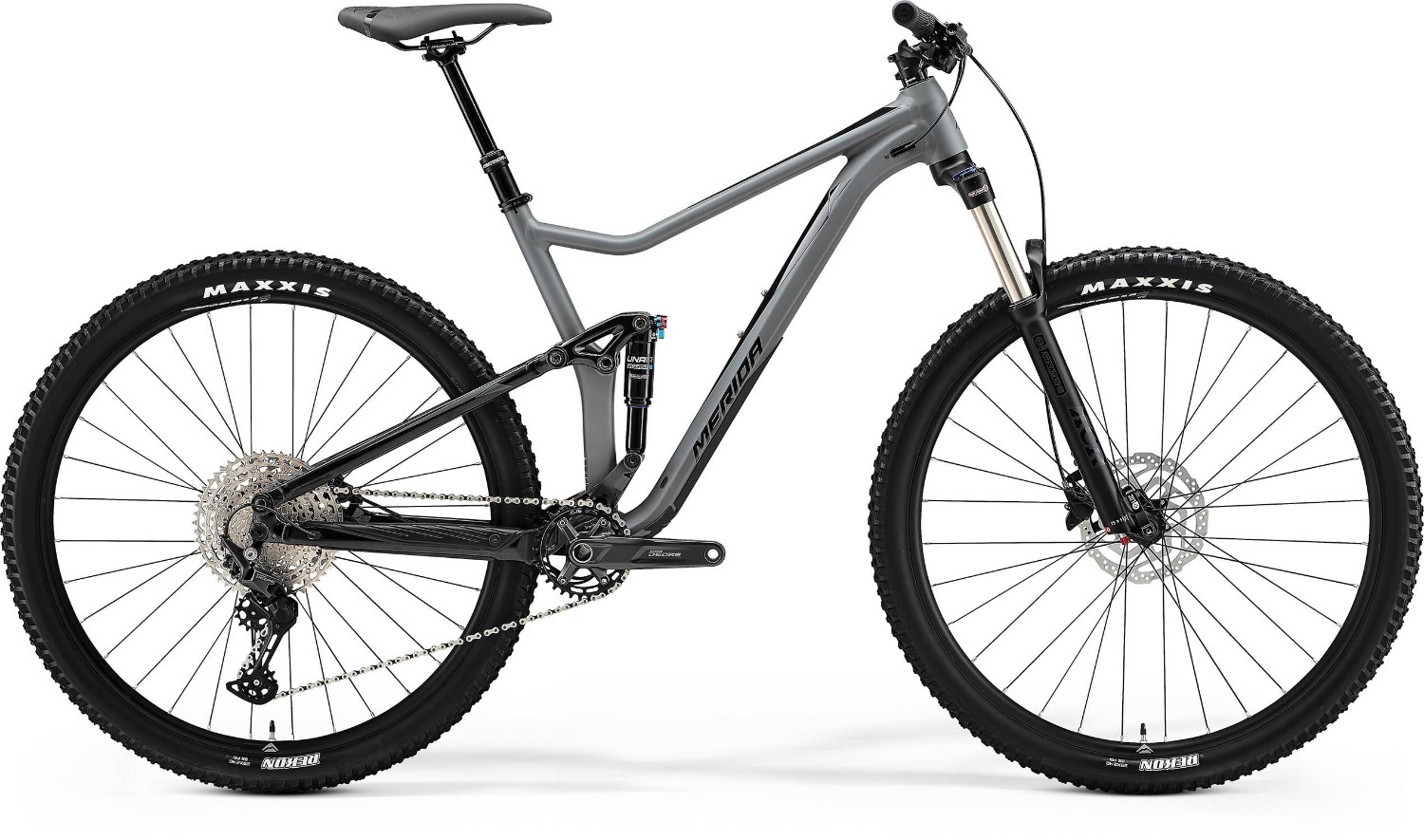

Merida One-Twenty 400 Mountain Bike 2023 - Trail Full Suspension MTB
![Merida One-Twenty 400 Mountain Bike 2023 - Trail Full Suspension MTB product image](https://tredz.azureedge.net/prodimg/244371_1_Supersize.jpg)
Merida's most versatile full suspension bike, as with all of the range, the One-Twenty is over forked running 130mm forks with plush 120mm rear travel.
Key features:
- 6066 triple butted hydroformed aluminium smooth welding frame
- Suntour XCR34 fork with 130mm if bump soaking travel
- Suntour Unair shock takes care of the 120mm of rear travel
- Shimano 1x11 gears give enough range to climb anything
- Tektro brakes offer all weather stopping power
- Sizes: S (16") , M (17.5") , L (19") , XL (20.5")
- Colours: Grey/Black
- The Merida One-Twenty 400 is available with 0% APR Finance.
The designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays that’s easy to maintain. The rear shock is held in place with trunnion mounts which due to the wider mounting increases frame stiffness and reduces shock wear.
The designers can run shorter shocks and longer stroke allowing more scope for suspension tuning. All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt. While very much a trail bike at heart, the modern yet balanced trail bike geometry, paired with fantastic frame stiffness, created a mid-travel bike that is super capable on rough trails but also carries speed perfectly on less technically demanding tracks.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Lite – 6066 triple butted, hydroformed aluminium, smooth welding. Tapered head tube, Boost axle standard. Internal cable routing, Smart Entry cable clamping. BB92 BB standard, Max. tyre size 29" x 2.35" |
Fork | Suntour XCR34 LOR; Air; 130mm travel; Tapered; lockout; 51mm fork offset. Max. tyre size: 29" x 2.4" |
Rear Shock | Suntour Unair TR LOR8; lockout |
Headset | FSA NO.47/50 |
Stem | Merida Comp CC; aluminium; 31.8mm diameter; -6 degree rise - Stem length: 60mm (all sizes) |
Bars | Merida Expert CC; aluminium; 740mm wide; 10mm rise |
Front Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor |
Rear Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 180 mm rotor |
Brake Lever | Tektro HD-M275 |
Rear Mech | Shimano Deore M5100 Shadow+ |
Shifters | Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever |
Speed | 11 |
Rims | Merida Comp CC; 20mm inner rim width; Aluminium |
Front Hub | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
Rear Hub | Shimano MT400-B; 148x12mm; 32 spokes; Center lock; including removable lever with 4/6mm Allen key |
Spokes | Black stainless |
Front Tyre | Maxxis Rekon; 29" x 2.4"; wire bead |
Rear Tyre | Maxxis Rekon; 29" x 2.4"; wire bead |
Seat Post | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M), 150mm (L/XL) |
Saddle | Merida Comp SL; V-mount |
Chainset | Shimano Deore M5100; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL) |
Bottom Bracket | Shimano MT500-PA pressfit |
Chain | KMC X11 |
Cassette | KMC X11 |
Pedals | Resin Platform |
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
