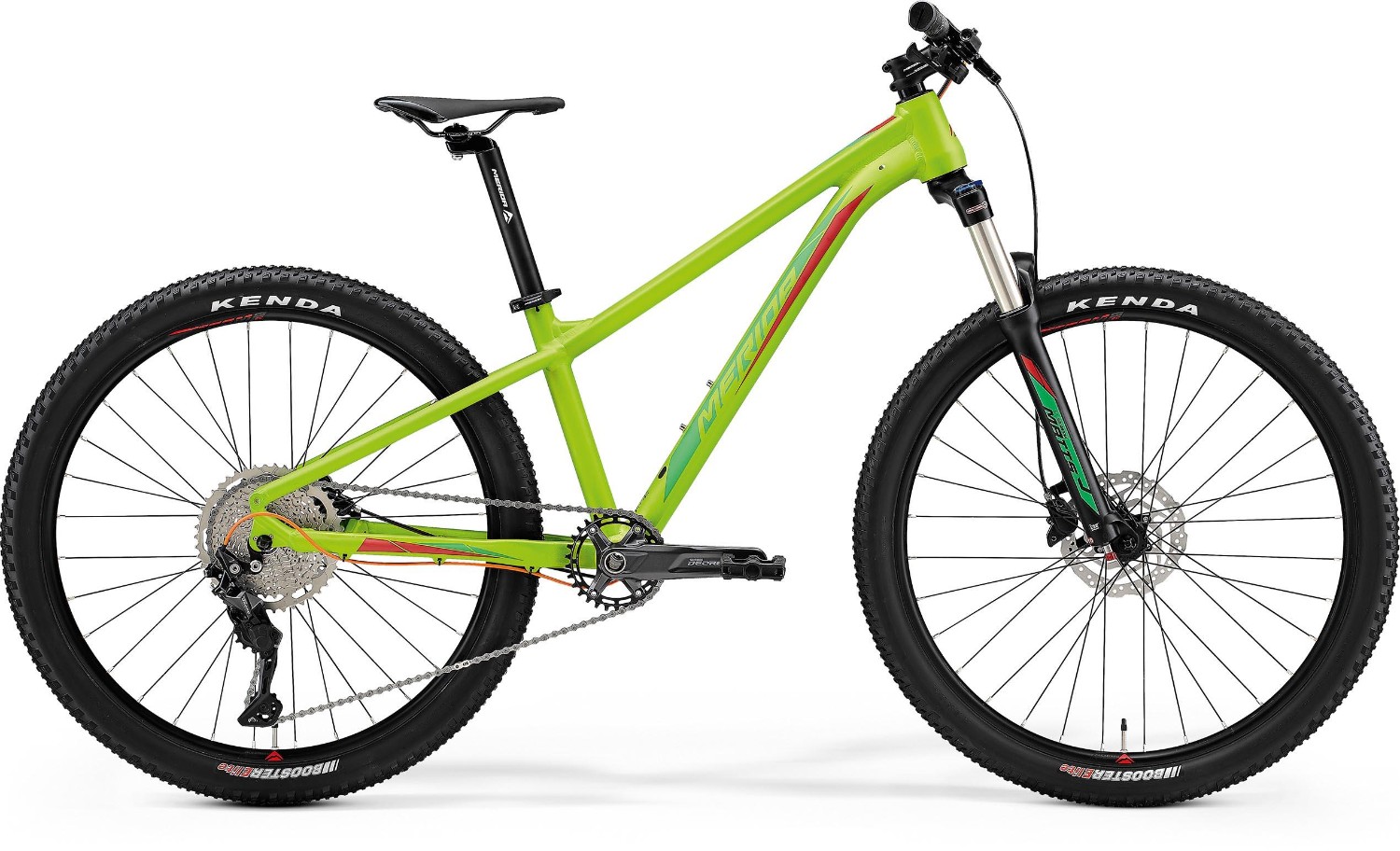

Merida Matts J.Champion 2023 - Junior Bike
Everything a young bike rider needs to progress to being the champion of tomorrow - and nothing they don’t. The Matts J.Champion has a lightweight aluminium frame married to quality components that allow kids all the advantages offered by our adult bikes, but with finishing kit suited to their needs. A proper air damped suspension fork and hydraulic disc brakes guarantee control on real mountain bike terrain, while a wide-range Shimano drivetrain make hills easy to climb. Suits heights from approx. 137-150 cm tall.
Supplied with fast rolling 26" wheels, the bike can be upgraded with 27.5" wheels at a later stage, extending its life.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | TFS - 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted disc brake. Internal cable routing and mounts for mudguards and kick stands. |
| Fork | Suntour XCR32 LOR; Air; 100mm travel; Lockout; 42mm fork offset |
| Headset | Merida M2345 |
| Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 60mm |
| Bars | Merida CC; aluminium; 620mm width; 15mm rise |
| Front Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 160 mm rotor |
| Rear Brake | Tektro HD-M275; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Tektro HD-M275 |
| Rear Mech | Shimano Deore M5120 Shadow+ |
| Shifters | Shimano Deore M4100 |
| Speed | 10 |
| Rims | Merida CC; 17mm inner rim width; Aluminium |
| Front Hub | Shimano TX505; 100x9mm wide; 32 spoke holes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm wide; 32 spokes; Center lock |
| Spokes | Black steel |
| Front Tyre | Merida K1227; 26" x 2.2"; Kevlar bead, folding; |
| Rear Tyre | Merida K1227; 26" x 2.2"; Kevlar bead, folding; |
| Seat Post | Merida Comp CC; aluminium; 30.9mm diameter; in-line |
| Saddle | Merida Expert JR |
| Chainset | Shimano Deore M5100; 30 tooth chainset. Crank length: 170mm-XS |
| Bottom Bracket | Attached |
| Chain | KMC X10 |
| Cassette | KMC X10 |
| Pedals | VP Components, VPE-891 |
Merida Matts Bike Sizing
See the table below to find the right size Merida Matts.
|
Height |
Frame Size |
Approx. |
|
155 – 165cm |
14 – 15” |
35 – 38cm |
|
165 – 170cm |
15 – 16” |
38 – 41cm |
|
170 – 175cm |
16 – 17” |
41 – 43cm |
|
175 – 180cm |
17 – 18” |
43 – 46cm |
|
180 – 185cm |
19 – 20” |
46 – 48cm |
|
185 – 190cm |
20 – 21” |
48 – 53cm |
|
190 -195cm |
21 – 22” |
53 – 56cm |
|
195 – 200cm |
22 – 23” |
56 – 58cm |
Read our bike size guide for more information on sizing.
