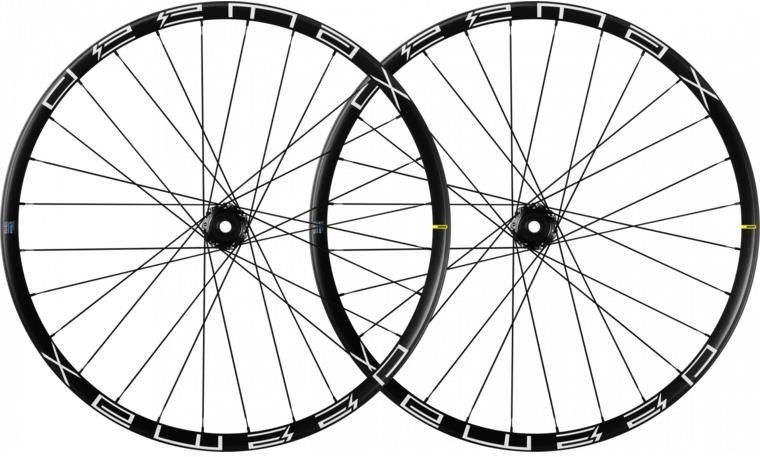

Mavic E-Deemax 35 CL Boost MS 27.5" Wheelset

A brand new 35mm E-bike specific rim that’s super strong, tubeless ready and with PFP technology. The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the E-Deemax reliability and toughness within reach.

Key Features:

• Strong and durable - Welded rim with Pinch Flat Protection for : Less risk of flat A super strong rim profile A perfectly sealed rim profile
• E-Bike specific and reliable construction - 28 wide double butted spokes Super reliable ID360 double ratchet freewheel system Bigger flange diameter hubs
• Tubeless ready technology - A tubeless rim profile with tubeless tape make it easy to ride tubeless tires for more traction and less risk of flat

The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 35 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tire cuts and punctures. The rim is welded for added reliability and features a 35mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 35 is available with 6-bolt or center lock brake rotors in 27” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.

Specifications:

Rims

• Drilling: traditional
• E-Bike specific rim profile
• Tire: UST Tubeless and tubetype
• Internal width: 35 mm
• ETRTO size 27.5": 584x35TC
• Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
• Asymmetrical rim design

SUP welding technology

Spokes

• Shape: straight pull, flat
• Count: 28 front and rear
• Lacing: front and rear crossed 3

Hubs

• Hub available with 6-bolt or Center Lock® brake rotors
• Axles: Front 15X110 Boost ; Rear 12X148 Boost
• Instant Drive 360 freewheel technology
• QRM Auto bearing preload technology

Versions

• Disc standard : 6 Bolts or Center Lock®
• Hub width : Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatible Adapters and freewheel bodies

Boost : Torque Caps (LV2374400)

Intended use

• ASTM CATEGORY 5 : GRAVITY RIDING FOCUSED ON THE DESCENT

Delivered with

• UST valve and accessories
• Pre-installed tubeless rim tape
• Replacement spokes (2 with the front wheel and 4 with the rear)

Occasionally, without notice, manufacturers change product design and/or specifications.
