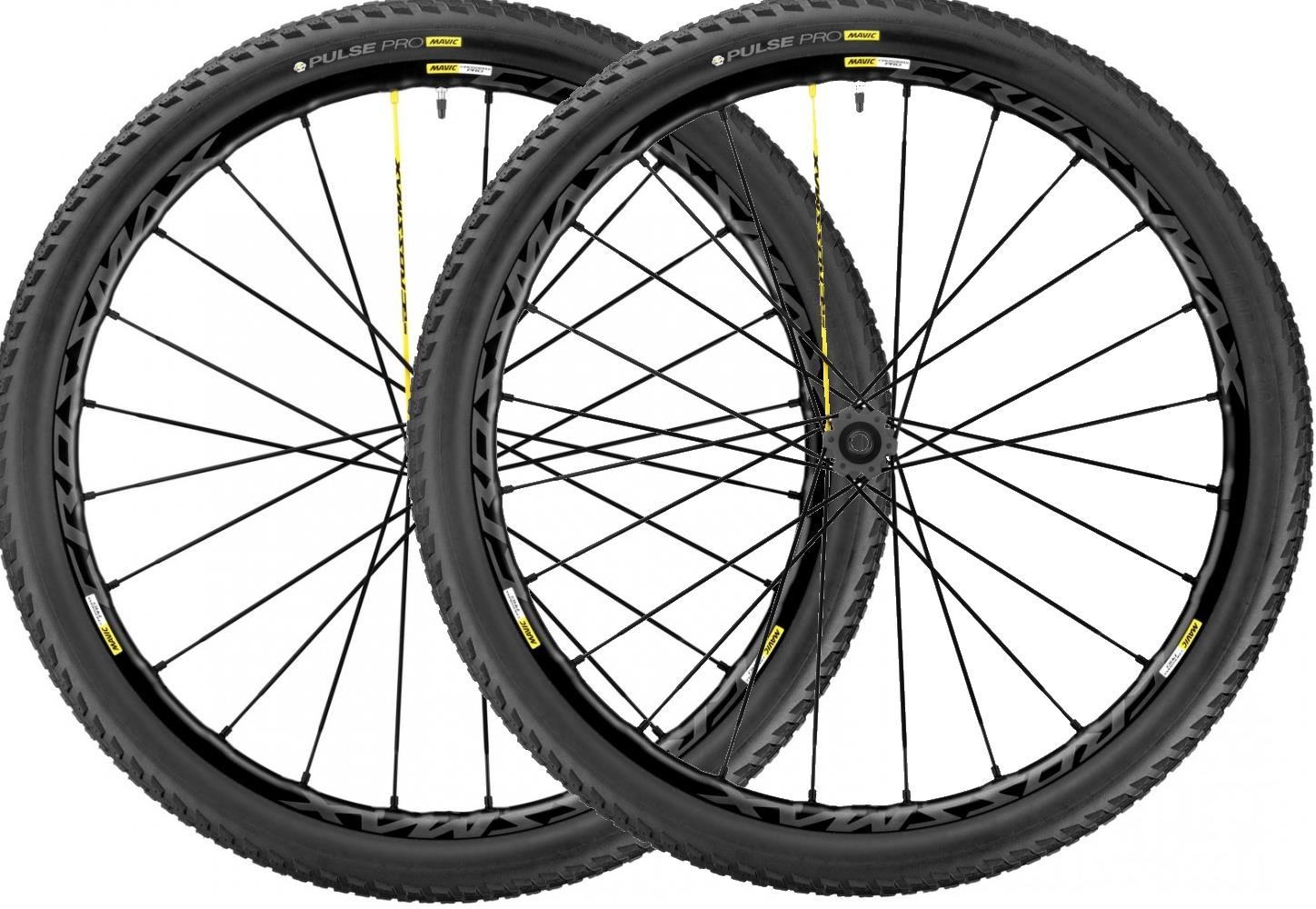

Mavic Crossmax Pro WTS MTB Wheels 27.5" - 2017

Lightweight enough for racing, yet strong enough for all day trail rides, the Mavic Crossmax Pro WTS MTB Wheels in 27.5" make for an excellent upgrade for any cross country or trail bike.

Using Mavic’s ISM 4D weight savings technology, the Crossmax rims have been machined between the spokes to remove any excess material, while keeping strength high. They are made from Maxtal alloy, a high strength-to-weight aluminium and feature Mavic’s SUP join, for even great strength.  The hookless, 22mm internal diameter rims hit that balance between tyre support and reduced rolling resistance. These rims have been designed to work perfectly with tubeless systems, and come with a tubeless kit.

The hubs have both alloy bodies as well as axles, for lightweight rolling, and an ITS-4 alloy freehubs to efficiently transfers power. Sealed cartridge bearings make maintenance easy and the bodies are alloy for weight savings as are the axles. The rear wheels come supplied with 12x142mm adaptors, while the front can be converted to quick release with adaptors available separately. These wheels are also available with a SRAM XD driver freehub or standard Shimano and in Boost spacing (front: 15x110mm/rear: 12x148mm).

Mavic builds these wheels with their unique Zicral alloy spokes. They are lighter than steel, yet maintain the strength and stiffness. The weak point of normal J-bend spokes is removed with the use of straight-pull spokes, allowing for less spokes to be used and keeping the wheels lightweight. There are 24 front and rear with a 2 cross pattern in front and Mavic’s Isopulse pattern in the rear. The spokes are bladed for even more rigidity and double butted, giving an even lighter weight.

The Pulse Pro tyres offers low rolling resistance and high speed. The X-mix dual compound rubber has harder, low-profile centre knobs to keep rolling fast, while softer, higher side knobs offer greater grip in the corners. These tyres are UST tubeless ready.

Key Features:

• ISM4D machined rim is lighter without compromising on strength
• 24 beefy Zicral spokes with Isopulse lacing to the rear ensure stiffness and responsiveness
• High tech iconic WTS
• Includes the core Mavic alloy technologies : Fore, UST, ISM4D, Zicral
• Wider 22mm, hookless profile rim: increased comfort, control and traction
• Pulse Pro tire in 2.1 or 2.25
• Light and strong single ply casing
• X-mix dual compound offering a combination of safe grip and speed
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
• Mavic Crossmax Pro WTS MTB Wheels 27.5” are available with 0% APR finance

Versions:

• Shimano | 6 Bolt | 2.10"/2.25" tyres - Compatible with: Shimano 10/11 speed, SRAM 10 speed
• SRAM XD | 6 Bolt | 2.10"/2.25" tyres - Compatible with: SRAM 11 speed
• Lefty Supermax| 6 Bolt | 2.25" tyres - Compatible with: Cannondale Lefty
• Shimano Boost | 6 Bolt | 2.25" tyres - Compatible with: Shimano 10/11 speed, SRAM 10 speed (Front 110mm hub, rear 148mm)
• SRAM XD Boost | 6 Bolt | 2.25" tyres - Compatible with: Shimano 10/11 speed, SRAM 10 speed (Front 110mm hub, rear 148mm)

Hub Sizing:

• Front - 6 bolts 15mm (9mm QR adapter included)
• Rear - 6 bolts 12x135 & 12x142
• Sizing -Boost (front 110, rear 148) or Non-Boost (front 100, rear 135/142)

Weight:

• Pair 27.5" without tyre: 1535 grams

Rims:

• Material: Maxtal
• Joint: SUP
• Drilling: Fore
• Weight reduction: ISM 4D
• Valve hole diameter: 6.5 mm
• Tyre: UST Tubeless and tubetype
• Internal width: 22 mm
• ETRTO size 27.5": 584x22ss
• Hookless profile

Spokes:

• Material: Zicral
• Shape: straight pull, bladed, double butted
• Count: 24 front and rear
• Lacing: front crossed 2, rear Isopulse

Hubs:

• Rear body: aluminium
• Front body: carbon with aluminium flanges
• Axle material: aluminium
• Sealed cartridge bearings
• Freewheel: ITS-4 alloy
• Tyre:
• Pulse Pro
• UST Tubeless Ready
• Front and Rear Tread: Dual Compound
• Casing: 127 TPI
• Dimension 27.5": 2.10 or 2.25

In the box:

• BX601 quick releases
• Front QR adapters(with pair or front wheel only)
• Rear 12x142mm adapters (with pair or rear wheel only)
• UST valve and accessories
• Multifunction adjustment wrench

Occasionally, without notice, manufacturers change product design and/or specifications.
