(no reviews)Product ID: 272284

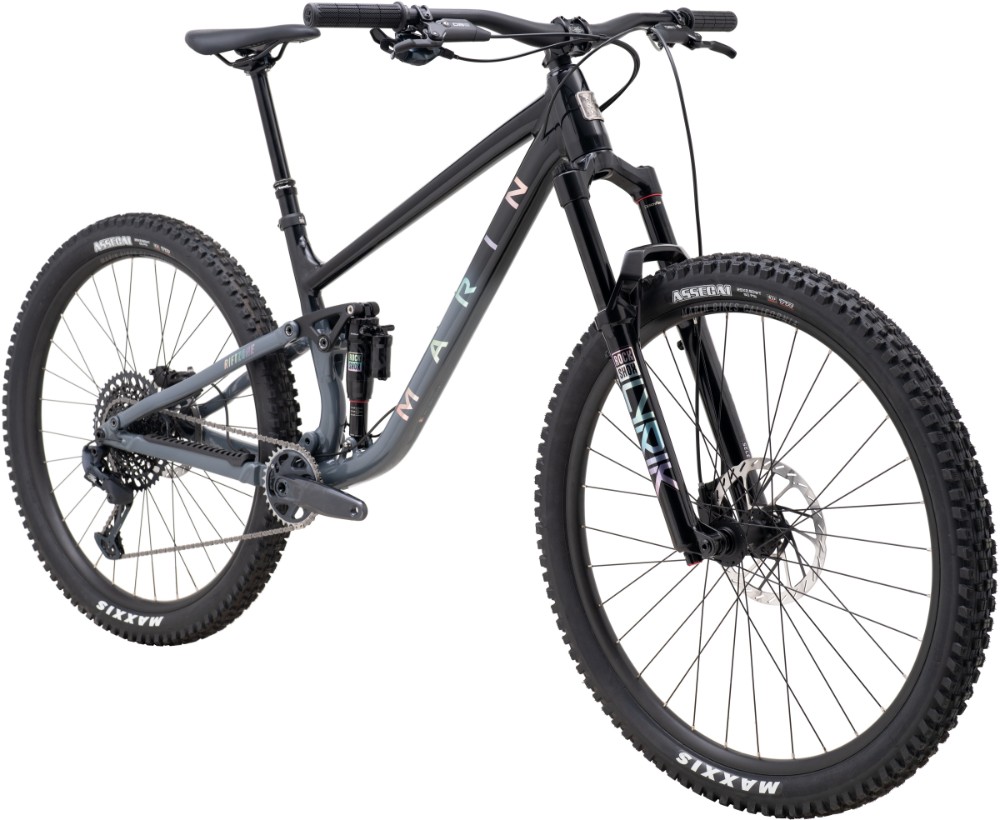

Marin Rift Zone XR 27.5 Mountain Bike 2025 - Trail Full Suspension MTB
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
"XR" means Extra Rad over here at Marin, and with that, the Rifty XR gets an extra spicy build. Starting out front, the fork is RockShox's supreme Lyrik Select+ model, now sporting 150mm of travel. Not wanting to leave the rear in the lurch, the Super Deluxe Select+ shock balances out the bouncy bits. SRAM's wide-range 12-speed GX Eagle drivetrain helps get the power to the rear wheel, while SB8 4-piston brakes offer impeccable braking performance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Fork | Rock Shox Lyrik Select +, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset |
| Rear Shock | Rock Shox Super Deluxe Select +, 210x55mm, 25xM8 Hardware, Custom Tune |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin CNC Stem, 35mm Length, 35mm Bar Bore |
| Bars | Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Front Brake | Sram DB8 4-Piston Hydraulic Disc Brakes, HSC 200mm Rotor |
| Rear Brake | Sram DB8 4-Piston Hydraulic Disc Brakes, HSC 180mm Rotor |
| Brake Lever | Sram DB8 Hydraulic Disc Brakes |
| Rear Mech | SRAM GX Eagle Lunar |
| Shifters | Sram GX Eagle Lunar MMX Mount |
| Speed | 12 |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Front Hub | Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h |
| Rear Hub | Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Rear Tyre | Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Seat Post | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Chainset | Sram GX Eagle Lunar MMX Mount |
| Bottom Bracket | Sram DUB MTB 73 |
| Chain | Sram DUB MTB 73 |
| Cassette | Sram NX Eagle |
Marin Rift Zone Size Chart
|
Size |
Height (cm) |
Height (Feet) |
|
S |
160 – 168 |
5’3” – 5’6” |
|
M |
168 - 178 |
5’6” – 5’10” |
|
L |
178 – 188 |
5’10” – 6’2” |
|
XL |
188 - 193 |
6’2” – 6’4” |
What size frame do I need if I am between sizes? - read here
