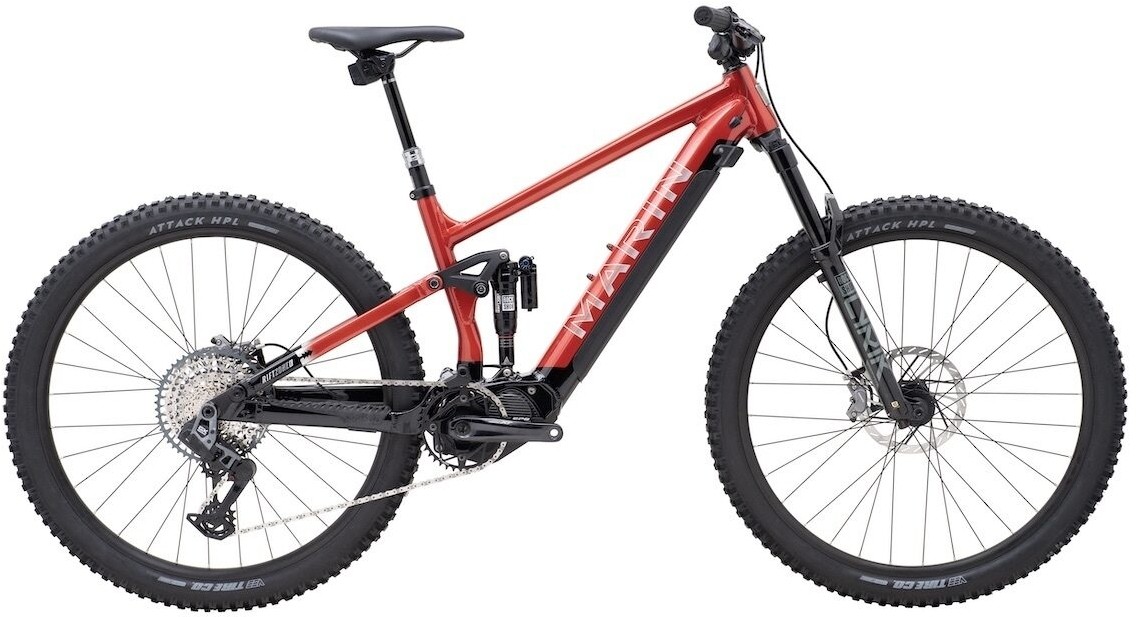

Marin Rift Zone E XR AXS 2025 - Electric Mountain Bike
Designed from the ground up around durable Shimano motor and battery units, the 2024 Marin electric mountain bike line-up is our most capable to date.
XR stands for EXTRA RAD. We turned the Rifty E up another notch with this one - RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tire Co rubber, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes. And the cherry on top? SRAM AXS T-Type mech with wireless shifting and a wireless RockShox Reverb dropper post. Our highest spec, highest tech Rifty E ever.
Rift Zone E models are built upon our Series 4 aluminium frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.
Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analogue version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 4 Alloy Frame, 15N/Amm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Fork | Rock Shox Lyric Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset |
| Rear Shock | Rock Shox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Bars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Front Brake | Sram Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor |
| Rear Brake | Sram Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor |
| Brake Lever | SRAM Code Bronze Stealth |
| Rear Mech | SRAM GX AXS |
| Shifters | SRAM AXS Pod |
| Speed | 12 |
| Rims | Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Front Hub | Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H |
| Rear Hub | Formula DC-711, 110x15, 6-Bolt, 32H |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Maxxis Assegai 29x2.5", 3C Maxx Grip, EXO+, Tubeless Compatible |
| Rear Tyre | Maxxis Assegai 29x2.5", 3C Maxx Grip, EXO+, Tubeless Compatible |
| Seat Post | Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm |
| Saddle | Marin E-MTB Saddle |
| Chainset | Shimano XT M8150, 160mm Length, 38T Steel Sram Chainring |
| Bottom Bracket | N/A |
| Chain | SRAM GX |
| Cassette | Sram CS-XS-1275, 10-52T |
| Pedals | Marin MTB Plastic |
| Battery Size (WH) | Shimano BT-EN806, Internal 630Wh |
| Motor | Shimano Steps EP801 Drive Unit, 250W, 85Nm |
Marin Rift Zone Size Chart
|
Size |
Height (cm) |
Height (Feet) |
|
S |
160 – 168 |
5’3” – 5’6” |
|
M |
168 - 178 |
5’6” – 5’10” |
|
L |
178 – 188 |
5’10” – 6’2” |
|
XL |
188 - 193 |
6’2” – 6’4” |
What size frame do I need if I am between sizes? - read here
