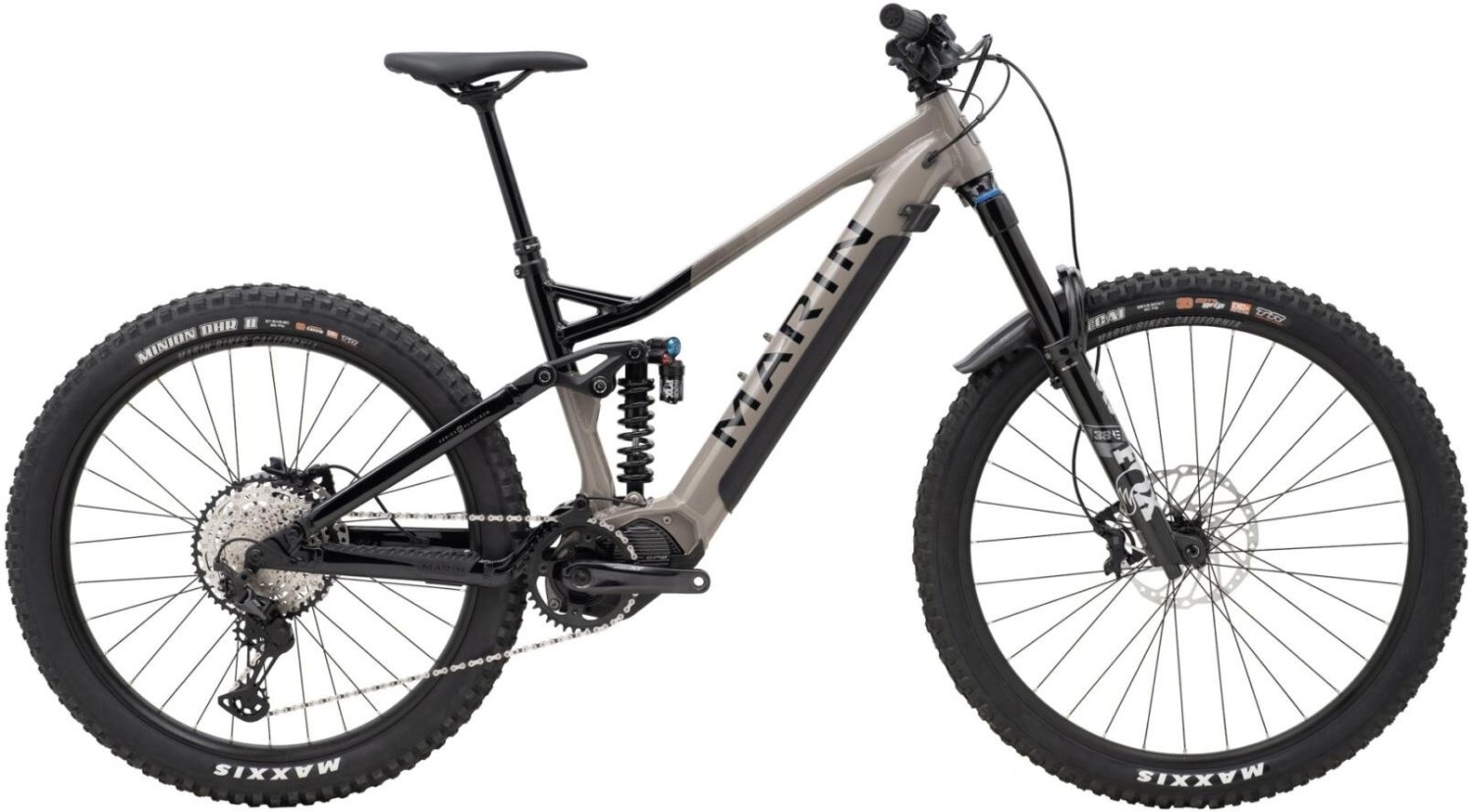

Marin Alpine Trail E2 2025 - Electric Mountain Bike
- Series 4 alloy frame for a comfortable off-road riding position
- Fox 38 Performance Elite suspension fork 160mm for trail control
- Fox Float DHX2 Performance Elite shock soaks up the roughest trails
- Shimano XT 12-speed drivetrain for reliable shifting and efficient pedalling
- Shimano SLX 4-piston hydraulic disc brakes for confident braking
- Maxxis Assegai 29x2.5" front tyre and Maxxis Minion DHR II 27.5x2.8" rear tyre
- Available with 0% APR finance
- Motor: Shimano EP8, maximum torque information not provided
- Battery: BT-8N/A36, internal 630Wh capacity
- User Interface: SC-E6N/A display, intuitive and user-friendly remote switch
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 4 Alloy Frame, 150mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor |
| Fork | Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender |
| Rear Shock | Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin CNC Stem, 35mm Length, 35mm Bar Bore |
| Bars | Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Front Brake | Shimano SLX, 4-Piston Hydraulic Disc Brake, 203mm Rotor |
| Rear Brake | Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor |
| Brake Lever | Shimano SLX Levers, I-Spec EV |
| Rear Mech | Shimano XT 12-Speed, SGS |
| Shifters | Shimano SLX 12-Speed, I-Spec EV |
| Speed | 12 |
| Rims | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible |
| Front Hub | Shimano MT-410B, 110x15mm, Centerlock Disc, 32H |
| Rear Hub | Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Front Tyre | Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, EXO+, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8”, 3C Maxx Terra, EXO+, Tubeless Compatible |
| Rear Tyre | Front: Maxxis Assegai 29x2.5", 3C MaxxTerra, EXO+, Tubeless Compatible Rear: Maxxis Minion DHR II 27.5x2.8”, 3C Maxx Terra, EXO+, Tubeless Compatible |
| Seat Post | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
| Saddle | Marin E-MTB Saddle |
| Chainset | Shimano XT M8150, 160mm Length |
| Chain | KMC E12S, E-Bike Specific Chain |
| Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Pedals | Marin MTB Plastic |
| Battery Size (WH) | BT-8N/A36, Internal 63N/AWh |
| Motor | Shimano EP801; 85Nm |
| User Interface | SC-E6N/AN/A Display |
Marin Alpine Trail E 2024 Size Chart
|
Size |
Height (cm) |
Height (Feet) |
|
S |
160 – 168 |
5’3” – 5’6” |
|
M |
168 - 178 |
5’6” – 5’10” |
|
L |
178 – 188 |
5’10” – 6’1” |
|
XL |
188 - 193 |
6’1” – 6’4” |
What size frame do I need if I am between sizes? - read here
Marin Alpine Trail E 2024 Geometry
|
Size |
S |
M |
L |
XL |
|
Stack mm |
613 |
622 |
631 |
640 |
|
Reach mm |
445 |
465 |
485 |
505 |
|
Head Tube Angle |
63° |
63° |
63° |
63° |
|
Head Tube Length mm |
100 |
110 |
120 |
130 |
|
Seat Tube Angle |
78° |
78° |
78° |
78° |
|
Seat Tube Length mm |
390 |
400 |
425 |
430 |
|
Top Tube Effective mm |
575 |
597 |
619 |
641 |
|
BB Height mm |
340.5 |
340.5 |
340.5 |
340.5 |
|
BB Drop mm |
28 |
28 |
28 |
28 |
|
Chain Stay mm |
435 |
435 |
435 |
435 |
|
Wheel Base mm |
1215 |
1239 |
1264 |
1288 |
|
Stand Over Height mm |
681.6 |
681.4 |
686.8 |
689.8 |
|
Fork Offset mm |
44 |
44 |
44 |
44 |
|
Seat Post Diameter mm |
30.9 |
30.9 |
30.9 |
30.9 |
|
Handlebar Width mm |
780 |
780 |
780 |
780 |
|
Stem Length mm |
35 |
35 |
35 |
35 |
|
Crank Length mm |
160 |
160 |
160 |
160 |
