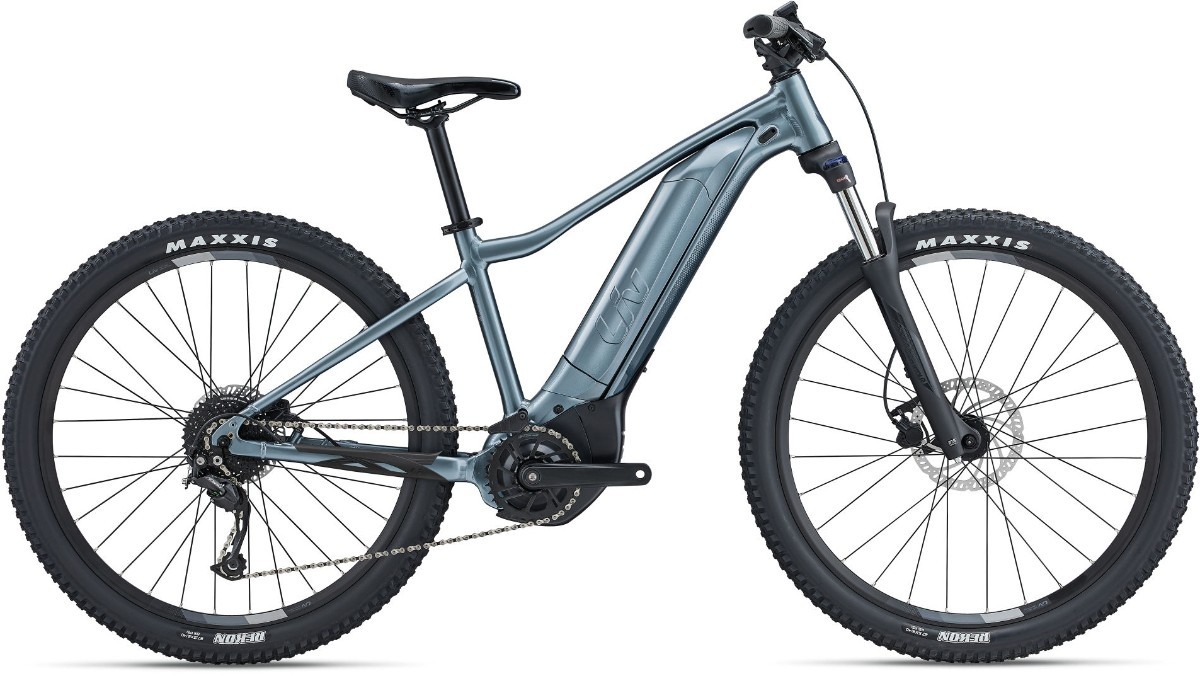

Liv Tempt E+ 2 - Nearly New – S 2024 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA18 kickstand mount |
| Fork | SR Suntour XCM 32 ATB Coil, NLO, 29"/27.5", 100mm travel, Tapered 1½ - 1⅛" steerer (XS-S: 27.5", M-L: 29") |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L) |
| Front Brake | Tektro HD-M286, hydraulic disc, 180mm[F], 160mm[R] |
| Rear Brake | Tektro HD-M286, hydraulic disc, 180mm[F], 160mm[R] |
| Brake Lever | Tektro HD-M286 |
| Rear Mech | Shimano Alivio, M3100, 9-speed |
| Shifters | Shimano Altus |
| Speed | 9 |
| Rims | Liv, GX03V, 27.5 / 29, Alluminum(XS-S: 27.5, M-L: 29er) |
| Front Hub | Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Rear Hub | Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 27.5x2.4" / 29 x 2.4" Wire Bead 60TPI (XS-S: 27.5, M-L: 29er) |
| Rear Tyre | Maxxis Rekon 27.5x2.4" / 29 x 2.4" Wire Bead 60TPI (XS-S: 27.5, M-L: 29er) |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv Sport |
| Chainset | FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T |
| Chain | KMC e.9 Sport, e-bike optimized |
| Cassette | Shimano CS-HG200, 11-36T |
| Pedals | Aluminum Platform |
| Battery Size (WH) | EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion |
| Motor | SyncDrive Core, 50Nm, Powered by Yamaha |
| User Interface | RideControl Dash, full color LCD screen |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Liv Tempt E+ 2 - Nearly New – S 2024 - Electric Mountain Bike.
This product is no longer available.
