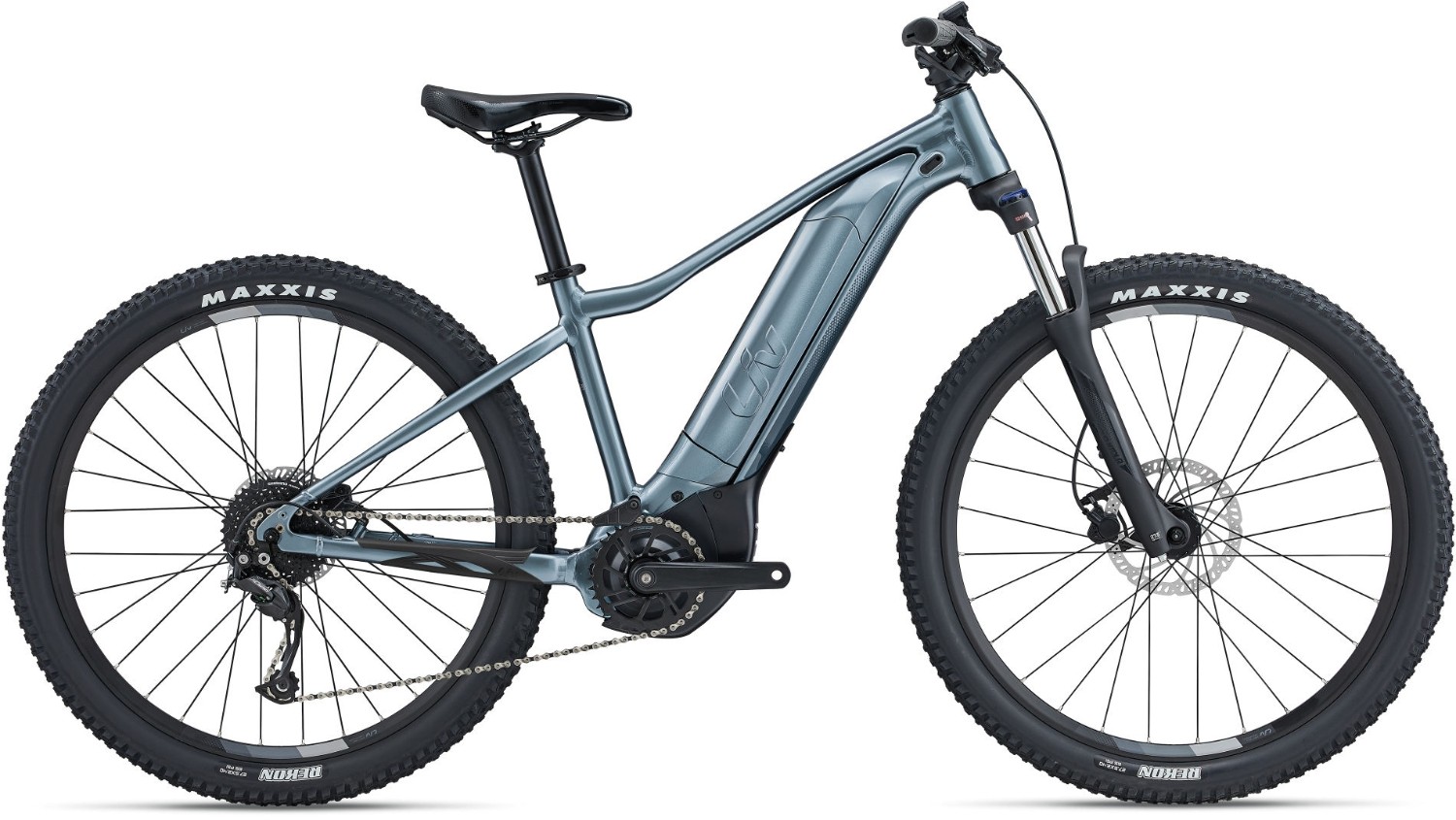

Liv Tempt E+ 2 2024 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA18 kickstand mount |
| Fork | SR Suntour XCM 32 ATB Coil, NLO, 29"/27.5", 100mm travel, Tapered 1½ - 1⅛" steerer (XS-S: 27.5", M-L: 29") |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L) |
| Front Brake | Tektro HD-M286, hydraulic disc, 180mm[F], 160mm[R] |
| Rear Brake | Tektro HD-M286, hydraulic disc, 180mm[F], 160mm[R] |
| Brake Lever | Tektro HD-M286 |
| Rear Mech | Shimano Alivio, M3100, 9-speed |
| Shifters | Shimano Altus |
| Speed | 9 |
| Rims | Liv, GX03V, 27.5 / 29, Alluminum(XS-S: 27.5, M-L: 29er) |
| Front Hub | Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Rear Hub | Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Rekon 27.5x2.4" / 29 x 2.4" Wire Bead 60TPI (XS-S: 27.5, M-L: 29er) |
| Rear Tyre | Maxxis Rekon 27.5x2.4" / 29 x 2.4" Wire Bead 60TPI (XS-S: 27.5, M-L: 29er) |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv Sport |
| Chainset | FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T |
| Chain | KMC e.9 Sport, e-bike optimized |
| Cassette | Shimano CS-HG200, 11-36T |
| Pedals | Aluminum Platform |
| Battery Size (WH) | EnergyPak 500, 36V 13.8Ah Rechargeable Lithium-Ion |
| Motor | SyncDrive Core, 50Nm, Powered by Yamaha |
| User Interface | RideControl Dash, full color LCD screen |
Liv Tempt Size Chart
|
Inside leg / Height |
26” / 66cm |
27” / 69cm |
28” / 71cm |
29” / 74cm |
30” / 76cm |
31” / 79cm |
32” / 81cm |
33” / 84cm |
34” / 86cm |
35" / 88CM |
36" / 90CM |
|
5’0” / 152cm |
XS |
XS |
XS |
|
|
|
|
|
|
||
|
5’1” / 155cm |
XS |
XS |
XS |
XS |
|
|
|
|
|
||
|
5’2” / 157cm |
XS |
XS |
XS |
XS |
XS |
|
|
|
|
||
|
5’3” / 160cm |
XS |
XS |
S |
S |
S |
|
|
|
|
||
|
5’4” / 163cm |
S |
S |
S |
S |
S |
|
|
|
|
||
|
5’5” / 165cm |
S |
S |
S |
S |
S |
|
|
|
|
||
|
5’6” / 168cm |
|
S |
S |
S |
S |
S |
|
|
|
||
|
5’7” / 170cm |
|
|
S |
S |
S |
M |
M |
|
|
||
|
5’8” / 173cm |
|
|
|
M |
M |
M |
M |
M |
|
||
|
5’9” / 175cm |
|
|
|
M |
M |
M |
M |
M |
|
||
|
5’10” / 178cm |
|
|
|
|
M |
M |
M |
M |
M |
||
|
5’11” / 180cm |
|
|
|
|
M |
M |
M |
M |
M |
||
|
6’0” / 183cm |
|
|
|
|
|
M |
M |
L |
L |
L |
L |
|
6'1" / 185cm |
L |
L |
L |
L |
L | L | |||||
| 6'2" / 188cm | L | L | L | L | L | L | |||||
| 6'3" / 190cm | L | L | L | L | L | L |
What size frame do I need if I am between sizes? - read here
