(no reviews)Product ID: 271231

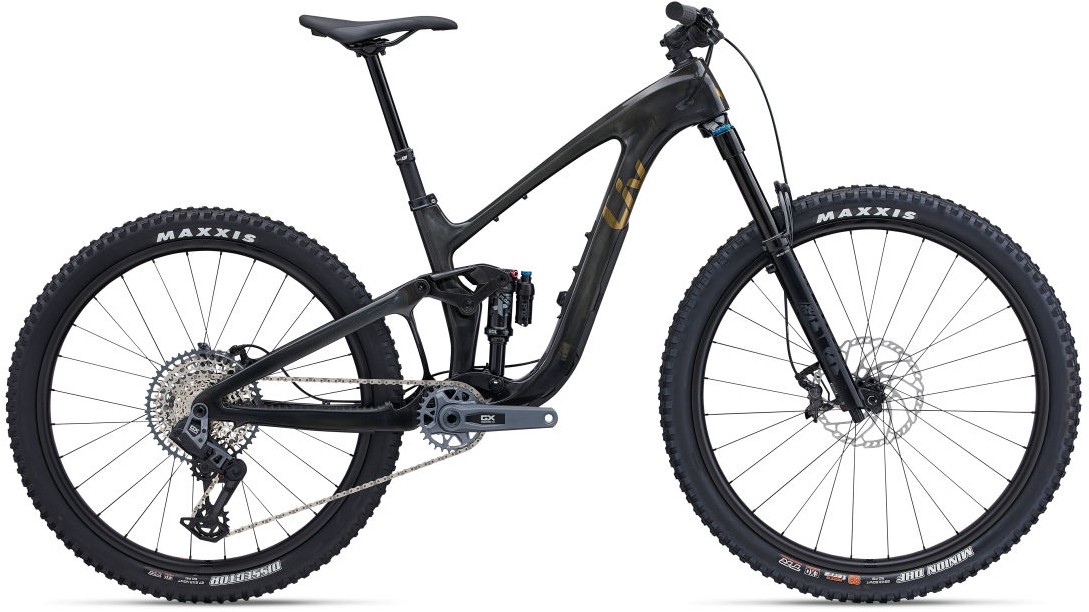

Liv Intrigue X Advanced 1 Mountain Bike 2025 - Trail Full Suspension MTB
Extremely customisation with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.
Key Performance Factors
Performance Mid Travel Trail
Key Performance Factors
Performance Mid Travel Trail
Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry
For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customise the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimise your riding position for better handling and s
Best of Both Wheels
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your se
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage |
| Fork | Fox 36 Performance Elite, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
| Rear Shock | Fox Float X Performance Elite, 185x52.5, custom tuned for Liv |
| Stem | Giant Contact SL, 35mm |
| Bars | Giant Contact SLR TR35, 20mm rise, composite |
| Front Brake | Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm |
| Rear Brake | Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm |
| Brake Lever | Shimano XT BL-8100 |
| Front Mech | N/A |
| Rear Mech | SRAM GX Eagle Transmission AXS |
| Shifters | SRAM AXS Pod, 1x12 |
| Speed | 12 |
| Rims | Giant TRX 27.5""/29"" hookless carbon wheelsystem 30mm rim inner width 40mm outer width 72t, POE, 28 SP spokes, DBL technology XD driver body 27.5""R/29""F for frame sizes XS/S 29""F&R for frame sizes for M/L |
| Front Hub | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Rear Hub | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Front Tyre | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Rear Tyre | Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Seat Post | Giant Contact Switch, adjustable dropper, remote XS&S: 140-170mm travel / 30.9 x 470mm M&L: 170-200mm travel / 30.9 x 530mm |
| Saddle | Liv Sylvia |
| Chainset | SRAM GX T-Type, 30t, 55mm chainline |
| Bottom Bracket | SRAM DUB, press fit |
| Chain | SRAM GX T-Type |
| Cassette | SRAM GX CS 1275 T-Type, 10x52 |
| Pedals | Resin Platform |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Liv Intrigue X Advanced 1 Mountain Bike 2025 - Trail Full Suspension MTB.
This product is no longer available.
