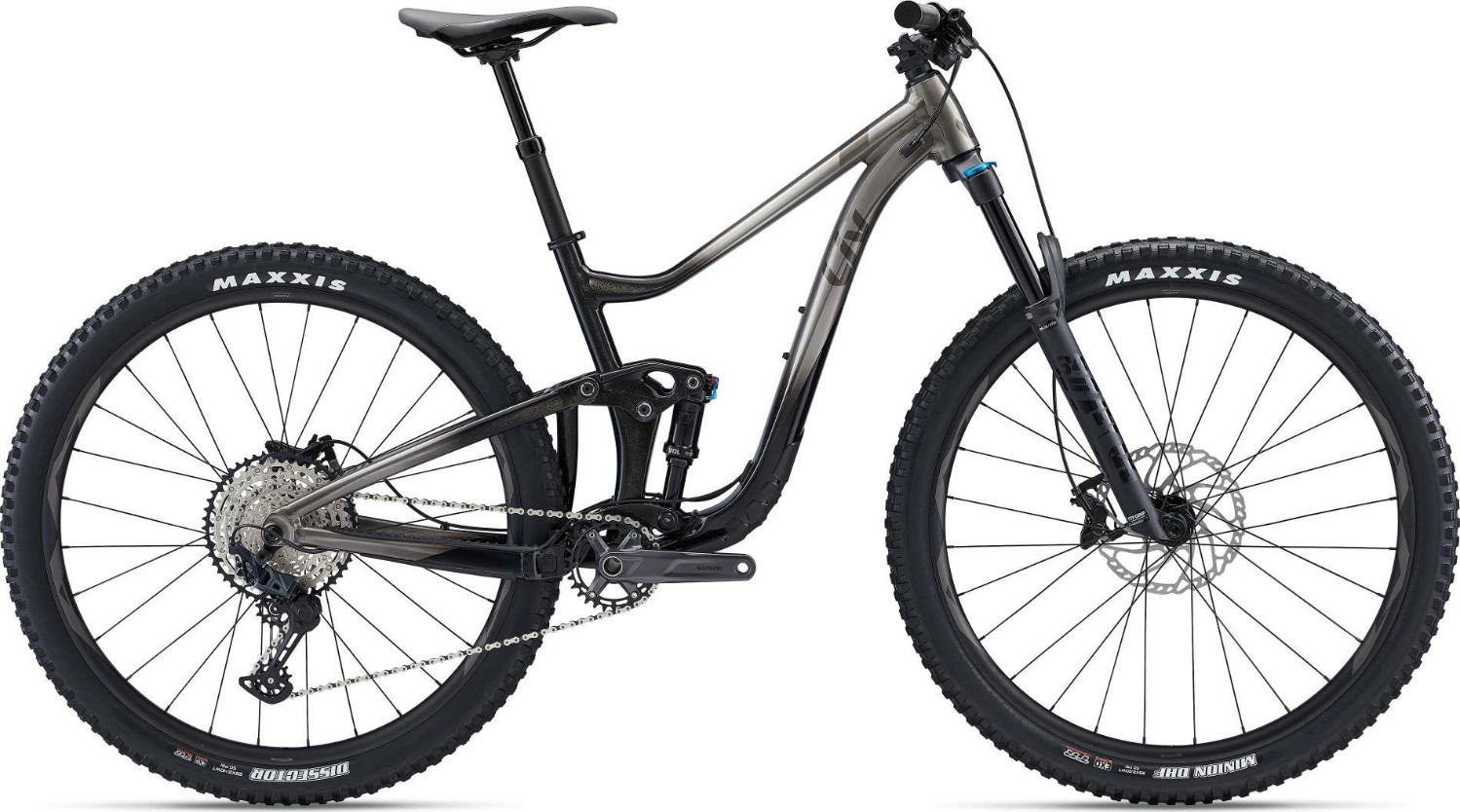

Liv Intrigue 29 1 Mountain Bike 2024 - Trail Full Suspension MTB
Ready for rough trails and dynamic descents, the Liv Intrigue 29 1 is designed with an ALUXX SL-Grade Aluminium frame and Maestro suspension for excellent trail stability. The custom-tuned Fox suspension and responsive Shimano SLX drivetrain give you the traction and control needed to explore new paths and overcome tough obstacles.
Key Features
- Frame: ALUXX SL-Grade Aluminium with 125mm Maestro Suspension, flip-chip adjustability
- Front Suspension: Fox 36 Float Performance, 140mm travel, custom tuned for Liv
- Rear Suspension: Fox Float DPS Performance, 125mm travel, custom tuned for Liv
- Drivetrain: Shimano SLX M7100, 1x12-speed for smooth, precise shifting
- Brakes: Shimano BR-MT520 hydraulic, 203mm front / 180mm rear rotors
- Wheels: Giant AM 29, 29-inch tubeless-ready, 30mm inner width
- Tyres: Maxxis Minion DHF 29x2.5" (front) and Dissector 29x2.4" (rear), tubeless
- Finance Option: Available with 0% APR finance
The Liv Intrigue 29 1 is engineered with versatility and performance in mind, blending a lightweight yet strong aluminium frame with reliable 29” wheels to roll effortlessly over roots, rocks, and rough ground. The Maestro suspension system, tailored specifically for women, provides a balanced, responsive ride that enhances traction and control on technical trails.
With the flexibility of a flip-chip, you can fine-tune your geometry for either fast, flowy trails or more aggressive terrain, making the Intrigue an adaptable partner for diverse riding conditions. The high-quality Shimano SLX drivetrain and powerful Shimano hydraulic brakes ensure responsive shifting and solid stopping power, rounding out a bike that’s made to inspire confidence and excitement on every ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminum front and rear triangles, 125mm Maestro Suspension, flip chip |
| Fork | Fox 36 Float Performance, 140mm, GRIP damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |
| Rear Shock | Fox Float DPS Performance, 185/50, custom tuned for Liv |
| Stem | Giant Contact SL, 35mm S:50mm, M:50mm, L:50mm |
| Bars | Giant Contact TR35, alloy, 35mm S:760mm, M:760mm, L:780mm |
| Front Brake | Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Rear Brake | Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Lever | Shimano MT501 |
| Rear Mech | Shimano SLX M7100 |
| Shifters | Shimano SLX M7100, 1x12 |
| Speed | 12 |
| Rims | Giant AM 29, tubeless ready, sleeve-joint, 30mm inner width |
| Rear Hub | Giant Boost, sealed |
| Spokes | Sapim |
| Front Tyre | Maxxis Minion DHF 29x2.5WT, EXO, TR, tubeless |
| Rear Tyre | Maxxis Dissector 29x2.4WT, EXO, TR, tubeless |
| Seat Post | Giant Contact Switch dropper, remote S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia |
| Chainset | Shimano M511, 30t S:170mm, M:170mm, L:170mm |
| Bottom Bracket | Shimano, press fit |
| Chain | KMC X-12 |
| Cassette | Shimano SLX M7100, 10x51 |
| Pedals | Not Included |
Liv Intrigue Sizing
|
|
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
|
<5’0 |
XS |
XS |
XS |
|
|
|
|
|
|
|
5’1 |
XS |
XS |
XS |
XS |
|
|
|
|
|
|
5’2 |
XS |
XS |
XS |
XS |
XS |
|
|
|
|
|
5’3 |
XS |
XS |
S |
S |
S |
|
|
|
|
|
5’4 |
S |
S |
S |
S |
S |
|
|
|
|
|
5’5 |
S |
S |
S |
S |
S |
|
|
|
|
|
5’6 |
|
S |
S |
S |
S |
S |
|
|
|
|
5’7 |
|
|
S |
S |
S |
M |
M |
|
|
|
5’8 |
|
|
M |
M |
M |
M |
M |
|
|
|
5’9 |
|
|
|
M |
M |
M |
M |
|
|
|
5’10 |
|
|
|
|
M |
M |
M |
M |
M |
|
5’11 |
|
|
|
|
M |
M |
M |
M |
M |
|
6’ |
|
|
|
|
|
M |
M |
|
|
Read our bike size guide for more information on sizing.
Liv Intrigue Geometry
|
|
X Small |
Small |
Medium |
|
SEAT TUBE LENGTH (mm) |
380 |
406 |
445 |
|
SEAT TUBE ANGLE |
74.5° |
74.5° |
74.5° |
|
TOP TUBE LENGTH (mm) |
565 |
580 |
595 |
|
HEAD TUBE LENGTH (mm) |
95 |
100 |
105 |
|
HEAD TUBE ANGLE |
66.5° |
66.5° |
66.5° |
|
FORK RAKE (mm) |
44 |
44 |
44 |
|
TRAIL (mm) |
110 |
110 |
110 |
|
WHEELBASE (mm) |
1135 |
1151 |
1167 |
|
CHAIN STAY LENGTH (mm) |
438 |
438 |
438 |
|
BOTTOM BRACKET DROP (mm) |
15 |
15 |
15 |
|
STACK (mm) |
577 |
582 |
587 |
|
REACH (mm) |
405 |
418 |
432 |
|
STAND OVER HEIGHT (mm) |
692 |
711 |
738 |
|
HANDLEBAR WIDTH (mm) |
760 |
760 |
780 |
|
STEM LENGTH (mm) |
40 |
40 |
50 |
|
CRANK LENGTH (mm) |
165 |
170 |
170 |
|
WHEEL SIZE |
27.5" |
27.5" |
27.5" |
