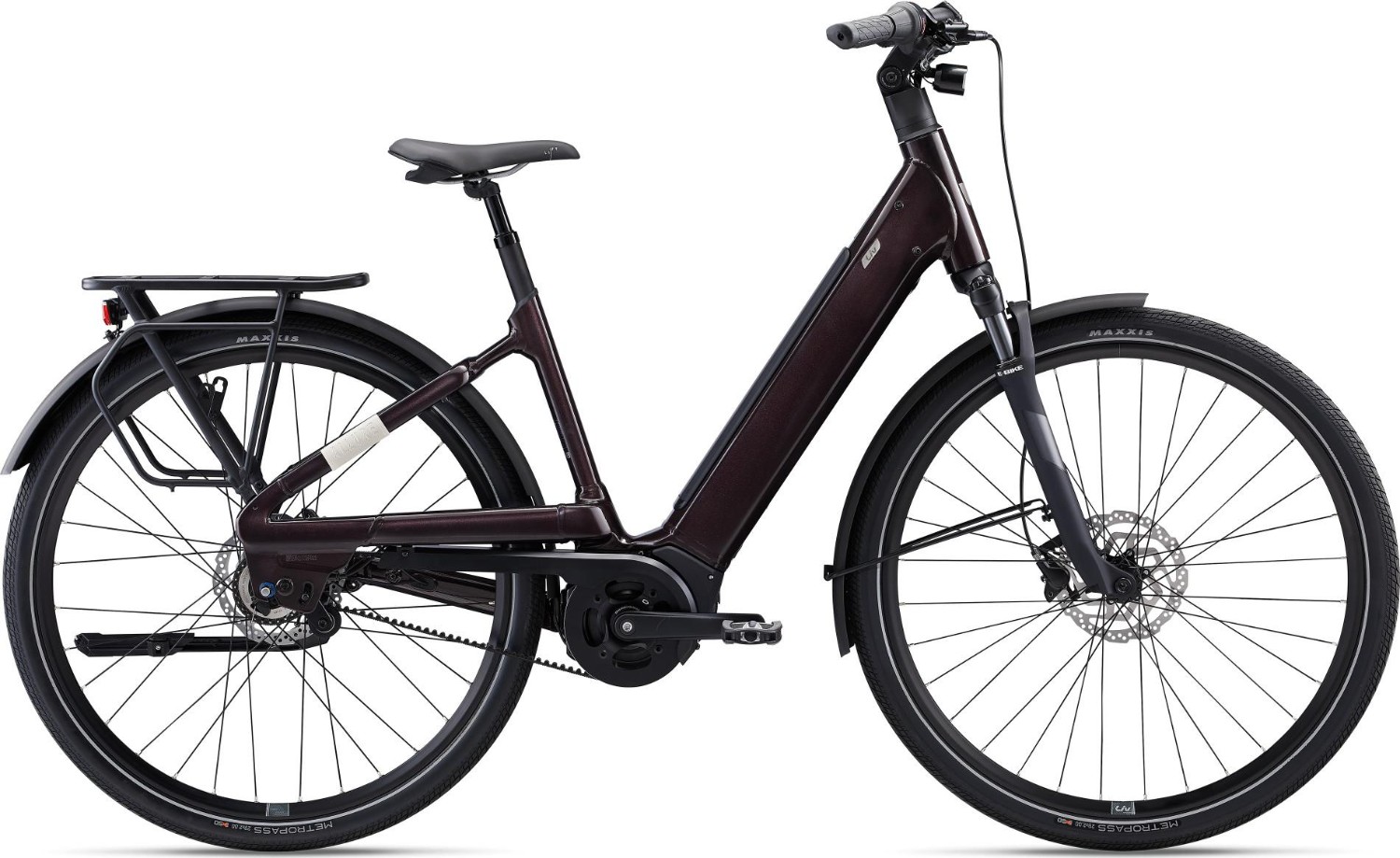

Liv Allure E+ 1 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount |
| Fork | RST VIV Air, TNL+, Lock-out, 50mm, 15x100 |
| Stem | Giant Contour, EVO display integrated, adjustable |
| Bars | Giant Contour GT, cable integrated, 30° back sweep 31.8mm |
| Front Brake | Shimano BR-MT200, hydraulic disc, 180mm [F/R] |
| Rear Brake | Shimano BR-MT200, hydraulic disc, 180mm [F/R] |
| Brake Lever | Shimano BL-MT200 |
| Shifters | Shimano Nexus 5-speed RevoShift |
| Speed | 5 |
| Rims | Liv GX03V, 700c aluminium |
| Front Hub | Shimano HB-MT400 100x15mm thru-axle Disc [F], Shimano Nexus 5 Disc brake [R] |
| Rear Hub | Shimano HB-MT400 100x15mm thru-axle Disc [F], Shimano Nexus 5 Disc brake [R] |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Metro Pass 622x50, 60tpi, Wire Bead, Reflective, ECE-R75 |
| Rear Tyre | Maxxis Metro Pass 622x50, 60tpi, Wire Bead, Reflective, ECE-R75 |
| Seat Post | Suspension 2-bolt micro-adjustable, 30.9x300mm [S, M, L] Forged aluminum 30.9x250mm [XS] |
| Saddle | Selle Royal Lift |
| Chainset | Gates CDXtm CenterTrack 46T front sprocket |
| Chain | Gates CDXtm Carbon Drive CenterTrack belt |
| Cassette | Gates CDXtm stainless steel 28T rear sprocket |
| Pedals | Not Included |
| Battery Size (WH) | EnergyPak Smart Compact 500Wh |
| Motor | SyncDrive Sport, 70Nm, Powered by Yamaha |
| User Interface | RideDash Evo |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
