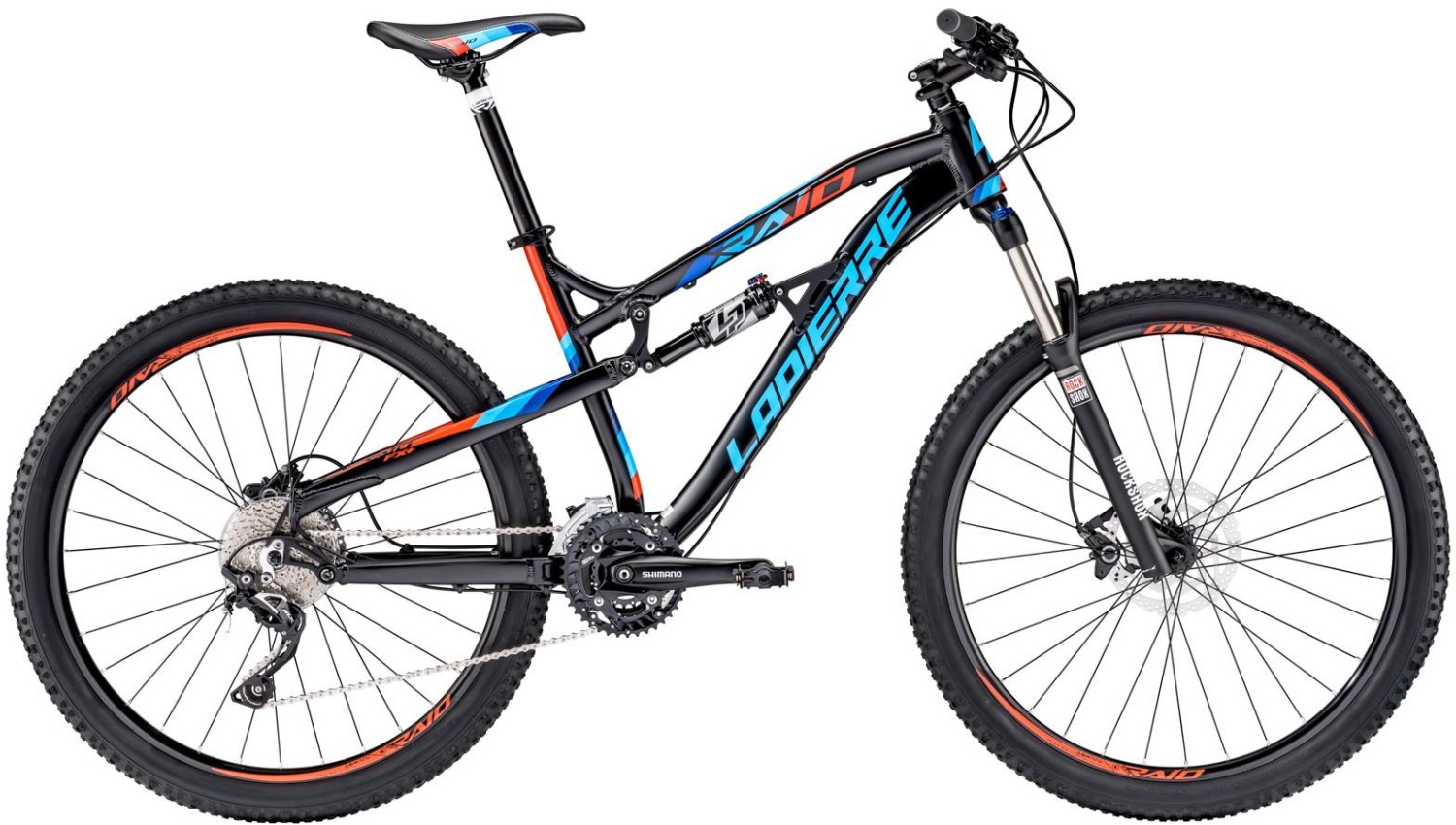

Lapierre Raid FX+ 27.5" Mountain Bike 2016 - Trail Full Suspension MTB
Get ready to hit the trails. The Lapierre Raid FX+ is a 120mm full sus MTB that delivers proper trail performance at an affordable price point.
120mm of suspension travel
The 6061 aluminium frame is robust and perfectly designed for trail riding. With 120mm of suspension travel front and rear smooths out the bumps on the trail. With dialled trail geometry the Raid FX+ is stable at speed and nimble in the tight.
RockShox fork
Both the plush RockShox 30 Silver fork and Lapierre shock feature adjustable damping so you can set the bike up to match the terrain. The rear suspension features a four bar linkage design which is ideal for pedalling and braking over rough ground.
Shimano drivetrain
The Shimano SLX/Deore 3x10 speed drivetrain offers a wide range of gears for taking on all the hills while the hydraulic disc brakes deliver confident stopping power in all conditions.
The Lapierre Raid FX+ is an ideal first mountain bike for UK trail riding.
Key Features:
- 6061 alloy frame for rugged off-road riding
- 120mm of full suspension travel to tame the trails
- RockShox fork for plush suspension control
- Hydraulic disc brakes for confident stopping
- Sizes: S (39cm), M (44cm), L (50cm), XL (55cm)
- Colour: Black/Blue/Red
- The Lapierre Raid FX+ is available with 0% APR finance
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Raid Fx 27.5" Alloy 6061 Disc 120mm |
| Fork | Rockshox 30 Silver Turnkey 27.5" Air 120mm |
| Headset | Fsa Orbit 1.5z Sc Top Cap |
| Stem | Lapierre Raid As-dc1 7° Ø: 31.8mm |
| Bars | Lapierre Raid Hb-rb11l W: 720mm R: 15mm Ø: 31.8mm |
| Front Brake | Shimano Hydraulic Altus Brm355 |
| Rear Brake | Shimano Hydraulic Altus Brm355 |
| Front Mech | Shimano Deore Fdm610e6x E-type |
| Rear Mech | Shimano Slx Rdm670sgs 10-speed |
| Shifters | Shimano Deore Slm610 3x10-speed |
| Speed | 30 |
| Rims | Mach1 Er20 27.5 |
| Front Hub | Shimano Ahbrm33b 32h Black Qr9mm Centerlock |
| Rear Hub | Shimano Afhrm33bzb 32h Black Qr10mm Centerlock |
| Front Tyre | Schwalbe Impac Trailpac 27.5x2.25 |
| Rear Tyre | Schwalbe Impac Trailpac 27.5x2.25 |
| Seat Post | Lapierre Raid Sp-dc1 Ø: 31.6mm L: 350mm |
| Chainset | Shimano Deore Fcm523c002xl 40x30x22 |
| Bottom Bracket | Shimano Abbes300b18 |
| Cassette | Shimano Deore Kcshg5010136 11x36 10-speed |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Lapierre Raid FX+ 27.5" Mountain Bike 2016 - Trail Full Suspension MTB.
This product is no longer available.
