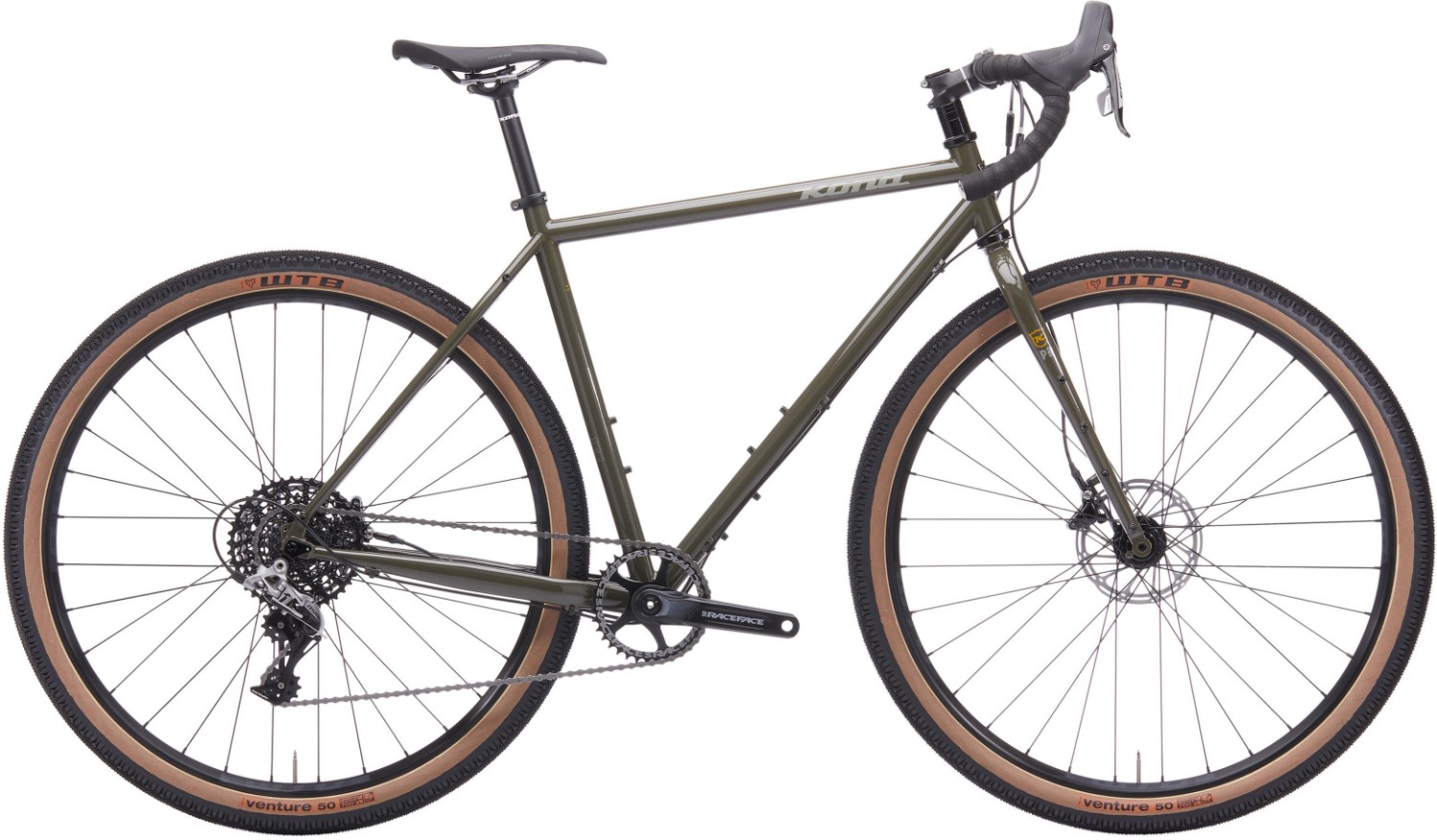

Kona Sutra LTD 2020 - Gravel Bike
“The Kona Sutra LTD is a drop-bar bike “designed by mountain bikers, for mountain bikers.” As simple as that statement may sound, the result is one of the most versatile, category-shattering rigs in the mainstream bike market.” – Logan Watts, Bikepacking.com
Key Features:
- Steel frame and fork for a forgiving ride
- SRAM Rival 1x11spd drivetrain offers precise shifting
- SRAM Rival Hydraulic disc brakes offer consistent stopping power
- WTB rims with 700x50 WTB Venture tyres
- Sizes: 46, 48.5, 52, 54, 56, 58cm
- Colours: Earth Grey
- The Kona Sutra LTD is available with 0% APR finance
Once upon a time a bunch of mountain bikers dreamed up something wild: a drop-bar bike that felt like a mountain bike and rode like a mountain bike but had the speed of a road bike. It was made of steel for that added bump absorption and ride quality, had powerful SRAM Rival 1 hydraulic disc brakes, a 1x drivetrain and beefy yet fast-rolling 700x50c tires. It had a wider bar with a 16-degree flare that made for more aggressive descending. The Sutra LTD came to reality in all of its dreamy glory and is an absolute riot on-road or off.
Very few materials offer as much shock absorption, durability and supple-ride characteristics as steel. We’ve never strayed from cycling’s original material and have worked tirelessly to adapt, refine and innovate Kona Cromoly framesets as rider demands continue to evolve.
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Kona Cromoly Butted |
| Fork | Kona Project Two Cromoly Disc Touring Fork |
| Headset | FSA TH848 |
| Stem | Kona Road Deluxe |
| Bars | Kona Road |
| Front Brake | SRAM Centerline 160mm |
| Rear Brake | SRAM Centerline 160mm |
| Brake Lever | SRAM Rival 1 HRD |
| Rear Mech | SRAM RIVAL 1 |
| Shifters | SRAM RIVAL 1 |
| Speed | 11 |
| Rims | WTB KOM Light Team i25 TCS |
| Front Hub | Formula 100x12mm |
| Rear Hub | Formula 142x12mm |
| Spokes | Stainless Black 14g |
| Front Tyre | WTB Venture TCS 700x50c |
| Rear Tyre | WTB Venture TCS 700x50c |
| Seat Post | Kona Deluxe Thumb w/Offset 27.2mm |
| Saddle | WTB SL8 Pro |
| Chainset | 36t Narrow/Wide |
| Bottom Bracket | RaceFace 73mm |
| Chain | Sram PC1110 |
| Cassette | SRAM XG1150 10-42t 11spd |
| Pedals | Basic Resin Flat |
Kona Sutra Sizing and Geometry
|
HEIGHT/INCHES |
frame size |
|
4'10"-5'1" |
46-48 cm |
|
5'0"-5'3" |
48-50 cm |
|
5'2"-5'7" |
48-52 cm |
|
5'6"-5'10" |
52-54 cm |
|
5'9"-6'0" |
52-56 cm |
|
5'11"-6'2" |
54-58 cm |
|
6'1"-6'5" |
56-58 cm |
Kona Sutra Geometry (mm)
|
FRAME SIZE |
46 |
48.5 |
52 |
54 |
56 |
58 |
|
ST LENGTH |
460 |
485 |
520 |
540 |
560 |
580 |
|
TT LENGTH |
527 |
540 |
553 |
569 |
585 |
603 |
|
REACH |
374 |
380 |
385 |
386 |
390 |
395 |
|
STACK |
549 |
558 |
568 |
598 |
618 |
640 |
|
STANDOVER |
745 |
765 |
785 |
810 |
830 |
850 |
|
HT ANGLE |
71.0° |
71.0° |
71.0° |
71.0° |
71.0° |
71.0° |
|
HT LENGTH |
95 |
105 |
115 |
147 |
168 |
191 |
|
ST ANGLE |
74.5° |
74.0° |
73.5° |
73.0° |
72.5° |
72.0° |
|
CS LENGTH |
445 |
445 |
445 |
445 |
445 |
445 |
|
BB DROP |
72 |
72 |
72 |
72 |
72 |
72 |
|
BB HEIGHT |
283 |
283 |
283 |
283 |
283 |
283 |
|
WHEELBASE |
1031 |
1039 |
1047 |
1059 |
1070 |
1083 |
|
FRONT CENTER |
596 |
604 |
613 |
624 |
635 |
648 |
|
FORK LENGTH |
415 |
415 |
415 |
415 |
415 |
415 |
|
FORK OFFSET |
50 |
50 |
50 |
50 |
50 |
50 |
