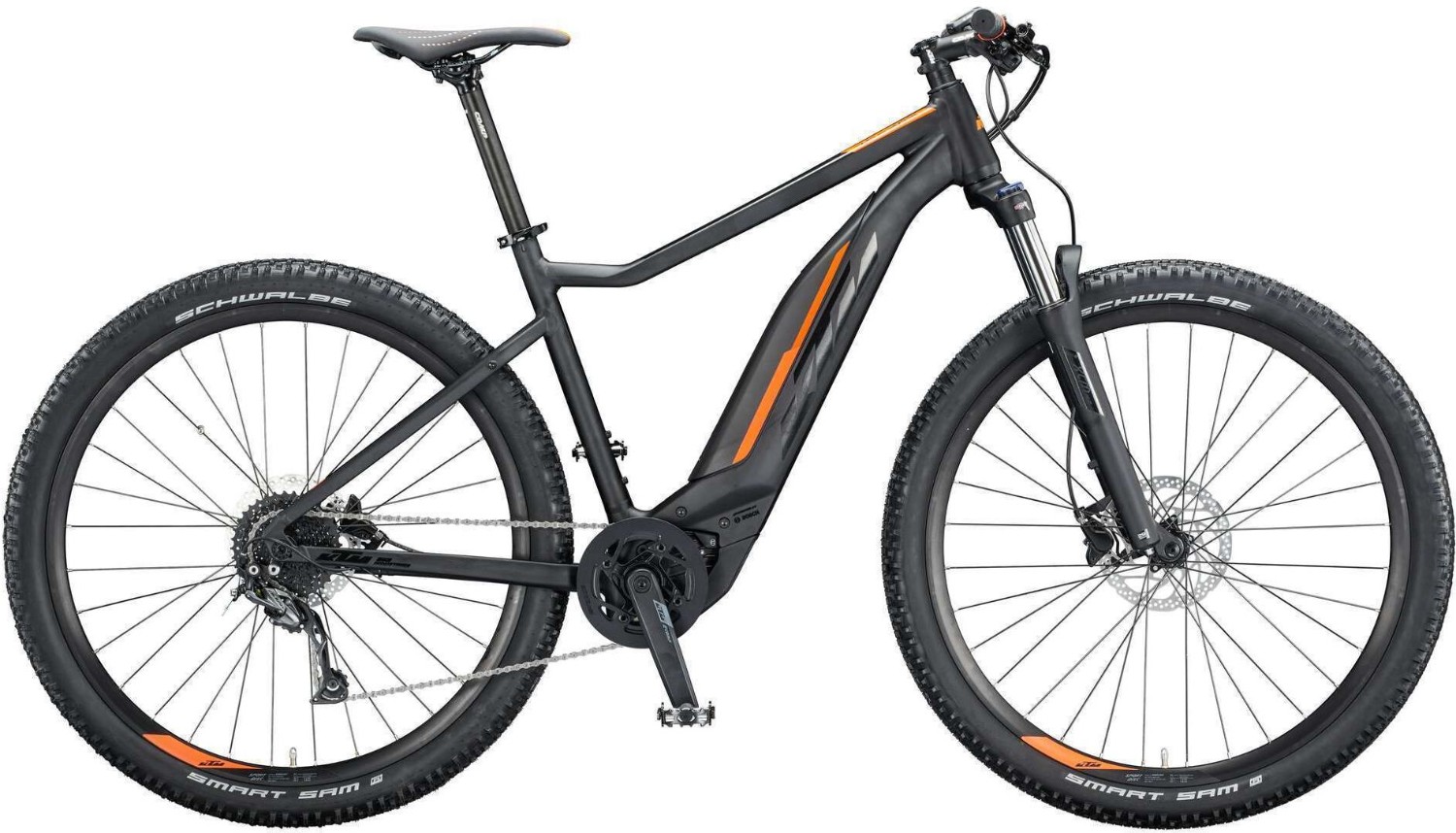

KTM Macina Action 291 29" 48cm 2021 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Macina MTB 29" |
| Fork | Suntour XCM 34 coil 29 "NLO 100mm 15x110 taper |
| Stem | KTM Comp ST-92A, 7° |
| Bars | KTM Comp flat 2X |
| Front Brake | Shimano MT200 2-Piston |
| Rear Brake | Shimano MT200 2-Piston |
| Rear Mech | Shimano Alivio M4000-9 SGS shadow |
| Shifters | Shimano Altus M2010-9 w / display |
| Speed | 9 |
| Rims | Ambrosio sport 23mm, 32H |
| Front Tyre | Schwalbe Smart Sam, 57-622, K-Guard |
| Rear Tyre | Schwalbe Smart Sam, 57-622, K-Guard |
| Seat Post | KTM Comp SP-DC1K 30.9/400 |
| Saddle | KTM Line MTB |
| Chainset | KTM Delta 170mm (ISIS) 16T - 3mm boost |
| Bottom Bracket | KTM COMP ISIS 170mm Q16 |
| Chain | Shimano E6070-9 e-bike |
| Cassette | Shimano HG200-9 / 11-36 |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerPACK 500Wh |
| Motor | Bosch Performance CX Gen. 4 - 25km / h (75Nm) |
| User Interface | Bosch PURION LCD |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the KTM Macina Action 291 29" 48cm 2021 - Electric Mountain Bike.
This product is no longer available.
