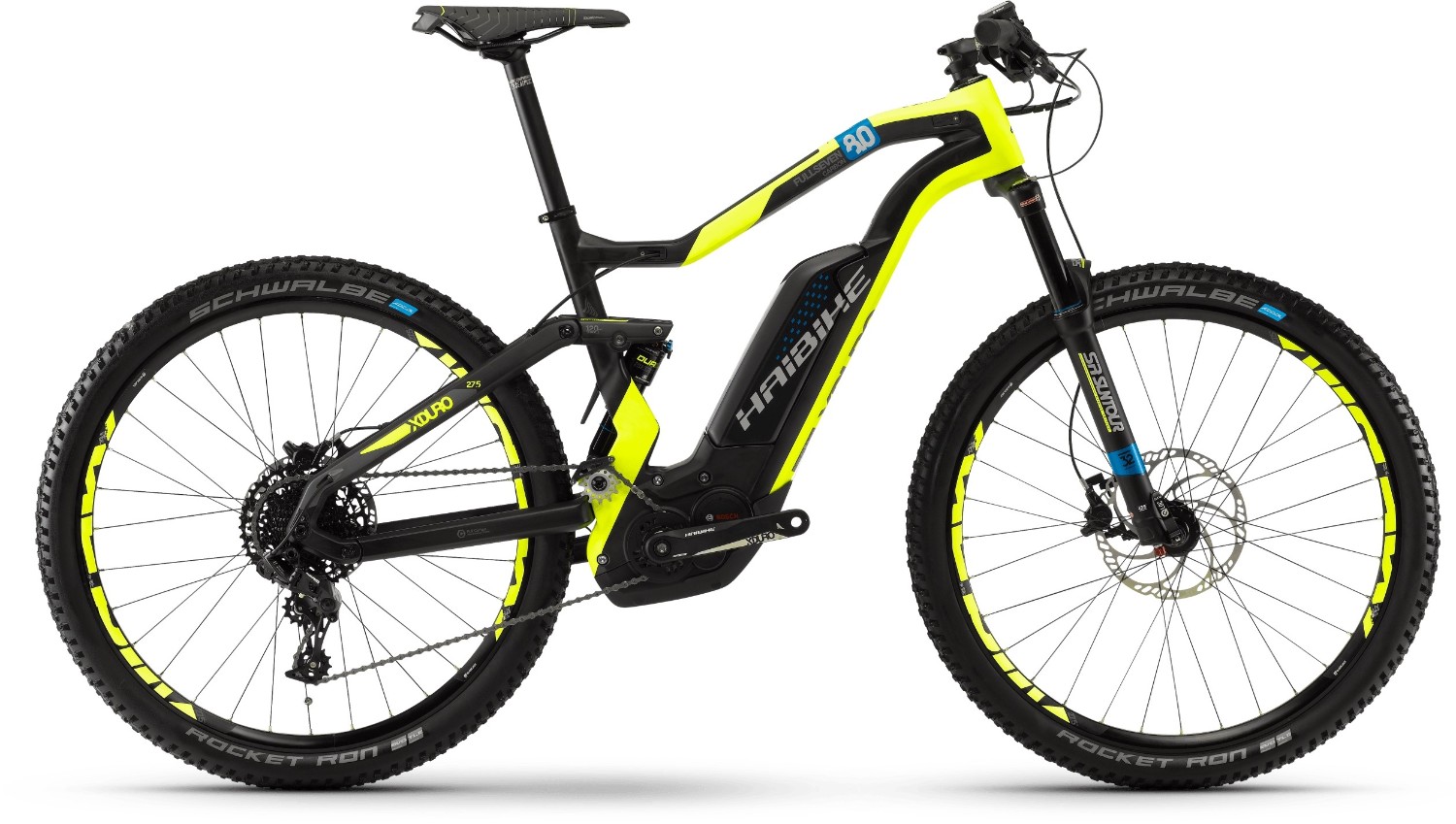

Haibike xDuro Fullseven Carbon 8.0 27.5" 2018 - Electric Mountain Bike

Ride further with less effort. The Haibike xDuro FullSeven Carbon 8.0 is an electric mountain bike that is built around a stiff carbon fibre frame and offers a powerful boost to your natural pedalling power. With 120mm of full suspension travel the FullSeven Carbon is ideal for trail centre adventures as well as cross-country loops.

Key Features:

• High Modulus UD-Monocoque carbon frame
• Suntour Axon RL fork for 120mm of plush suspension travel with lockout
• Suntour Duair shock controls the 120mm of rear wheel travel
• SRAM NX 1x11 speed drivetrain for a wide gear range
• Magura MT4 hydraulic disc brakes for powerful speed control
• Sizes: 40cm, 45cm, 50cm
• Colour: Carbon/Yellow
• The Haibike XDuro FullSeven Carbon 8.0 is available with 0% APR finance

Drive information:

• Drive unit: Bosch Performance CX, 250W, 75Nm, 25km/h
• Display: Bosch Purion
• Battery: Bosch PowerPack, 500 Wh
• Charger: Bosch compact charger 4A

The legendary lightweight XDURO FullSeven Carbon models offer a unique range of ePerformance mountain bikes with suspension travel of up to 120 mm for tackling light to medium terrain.

The Haibike SkidPlate:

Especially eMTBs often suffer from impacts or stone chipping which damage the low-situated motor severely. Therefore, we were the first manufacturer to introduce the SkidPlate back in 2012, a protection element which protects the bottom side of the motor.

Bottom side protection

Here the concept of a 'sacrifice part' applies: Similar to a helmet, the SkidPlate absorbs impact forces by deformation or destruction which would otherwise damage the significantly more expensive motor.

Plastic as ideal raw material

This is why we also use a special, shock-resistant plastic. This material conducts the incoming forces very well but stays dimensionally stable even under severe deformation at the same time compared to other materials which do not switch back to their original shape after deformation. The production in the corresponding colour perfectly hide scratches and smaller damage. If required, the SkidPlate can simply and cheaply be exchanged.

The Haibike SES system:

Bosch motors pose two challenges for engineers at once when developing an efficient chassis: its construction size and its relatively small sprocket. Usually, the chainstay bearing has to be installed close to the point of contact between chain and sprocket. Due to the small size, this would result in the bearing running directly through the motor which is, of course, impossible. Therefore, we created a simple but efficient concept: the Haibike Sprocket Equalizing System (S.E.S).

For a perfect chassis

First of all, we move the chainstay bearing up. Thus, we achieve an optimized wheel lifting effect (the bike moves away from the obstacle) on the one hand, and on the other a short wheelbase (as the bearing point is not located between motor and rear wheel).

A pulley prevents influences on the drive unit

In order to avoid the inevitable influence of the chassis on the chain during suspension, we axially place the pulley directly on the chainstay. Additionally, we integrated a chain guiding on the pulley. Together with the chain guiding on the Haibike sprocket, a chain drop is almost impossible.

The Haibike StepIn battery integration:

Lower tube batteries have always posed a big problem for developers as a large volume has to fit on a relatively filigrane frame. The Haibike StepIn concept, however, proves that there are technologically and optically convincing solutions.

Convincing optical and technologic solutions

In order to reduce the optical 'weight' of the bike, we are integrating the Bosch battery slightly in the lower tube. With a combination of hydroforming tubes and Special casting components, we are including the battery optically in the frame and thus can save the common, tolerance-afflicted welding of the mounting areas. Furthermore, this solution reduces the distance between motor and battery by 11mm.

The Haibike FullCarbon interface:

Usually, the Bosch motor is screwed onto the carbon frame's mounting plates through an adapter which increases the bike's weight, construction size and tolerances. This is why we developed the FullCarbon concept which solves all problems elegantly.

Direct screwing

The motor is screwed directly onto the carbon frame without using additional adapters. In the developing process, we decided to eliminate the metal cores in the Interface. Instead, the shape of carbon is optimally designed to transfer the forces into the frame. Hence, the weight and construction size is reduced and, at the same time, the stability and precision is increased.

The Haibike UD carbon frames:

Being one of the first manufacturers on the ePerformance market, Haibike uses carbon as frame material since 2014. We use our long classic frame manufacturing experience here. Numerous European and World Championships, as well as one silver medal at the Olympic Games, were won on our Haibike carbon models.

All frame parts made of carbon

All XDURO and SDURO carbon frames are made of carbon components only (except for the SkidPlate). Every single part is laminated by hand. During this process, the carbon fibre is positioned according to a set plan, parallelly and in accordance with the later stress direction (unidirectional laminate). The advantage is that the tear strength can be used efficiently, very rigid parts can be defined and other parts can be designed with more flex.

Highly resilient and efficient

The result is a highly resilient frame which does not only translate every single bit of energy in propulsion, but also reduces the overall weight by its extraordinary low frame weight from 2.790g in a Fully and 1.950g in a Hardtail.

Bosch Performance CX Drive Unit:

The Bosch Performance CX has been specially optimized for sporty use. The motor delivers a constant maximum torque of up to 75 Nm up even to a high speed range.

The motor offers an impressive maximum torque of 75 Nm. The “Direct Flow” technique also guarantees powerful support in the lower cadence levels. Trail Control offers a dynamic power management system, that allows the rider to choose the optimum support level (50-300%) for the terrain they are riding, their riding style, and the distance they are looking to cover. “Shift detection” protects your chain by cutting off the torque from the motor during shifting for smooth gear changes.

Bosch Purion Display:

The new compact display is a combination of remote control and display. Positioned on the left of the handlebars, the display provides key information through a small, easy to read display. Its compactness and location make it ideal for extreme ePerformance bikes whose riders seek a display that is reduced to the essentials and well-protected.

All the main functions can be directly controlled: support level (Off, Eco, Tour, eMTB/Sport, Turbo), switching on and off the eBike light, walk-assist, the current speed, the day trip and the total mileage of the bike, and the range, or how far the current charge level of the battery will last in mileage. A backlight in the display makes all information easy to read even in the dark.
