(2)Product ID: 231306

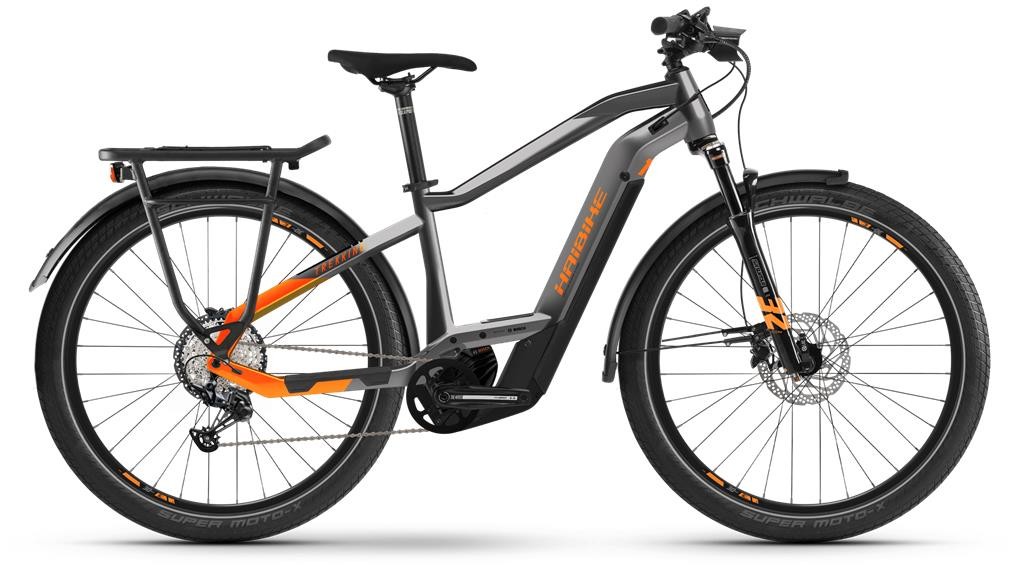

Haibike Trekking 10 2021 - Electric Hybrid Bike
With the new Trekking, 10 the sky is the limit: Commute to work in comfort, take a quick lap after work or explore the world with packed panniers. Driven by the powerful Bosch Performance CX motor Gen 4 with 85Nm, the fun keeps on going even on steep climbs. Thanks to the wide Super Moto-X tyres, 80mm suspension fork and Skybeamer lighting, you are always comfortable and safe even on long rides. Your equipment can be stored on the standard luggage rack or on the integrated Modular Rail System. Get on and ride on!
Key Features
- Frame material - Aluminium
- Drive unit - Bosch Performance CX GEN4, 85Nm, 25km/h
- Battery - Bosch PowerTube 625Wh
- Fork - SR Suntour Mobie E45 LOR, Travel: 100mm
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount, Travel: 100mm |
| Fork | SR Suntour Mobie E45 LOR Lockout, air, Travel: 80mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle |
| Headset | A-Head Alloy Tapered |
| Stem | Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 12˚ |
| Bars | Haibike Components TheBar ++ 740mm |
| Front Brake | Shimano M6120, aluminium, 203mm / Shimano M6120, aluminium, 180mm |
| Rear Brake | Shimano M6120, aluminium, 203mm / Shimano M6120, aluminium, 180mm |
| Brake Lever | Shimano M6100, aluminium |
| Front Mech | N/A |
| Rear Mech | Shimano SLX M7100, 12-speed |
| Shifters | Shimano Deore M6100, trigger switch |
| Speed | 12 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT410 |
| Spokes | Sapim Leader, black |
| Front Tyre | Schwalbe Super Moto X, 62-584, reflex |
| Rear Tyre | Schwalbe Super Moto X, 62-584, reflex |
| Seat Post | Haibike Components TheSeatpost ++, patent, 34.9mm, aluminium |
| Saddle | Haibike Components TheSaddle |
| Chainset | Shimano CN-M6100 |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano HG6100 (10-51T) |
| Pedals | VP E461 aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 625Wh |
| Motor | Bosch Performance CX GEN4, 250W, 85Nm, 25km/h |
| User Interface | Bosch Kiox |
Haibike SDuro Trekking Men's 2021 Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 48cm |
152 – 160 |
5’0” – 5’3” |
|
M / 52cm |
160 – 175 |
5’3” – 5’9” |
|
L / 56cm |
175 – 185 |
5’9” – 6’1” |
|
XL / 60cm |
185 - 195 |
6’1” – 6’5” |
|
XXL / 64cm |
190 - 200 |
6’3” – 6’7” |
What size frame do I need if I am between sizes? - read here
