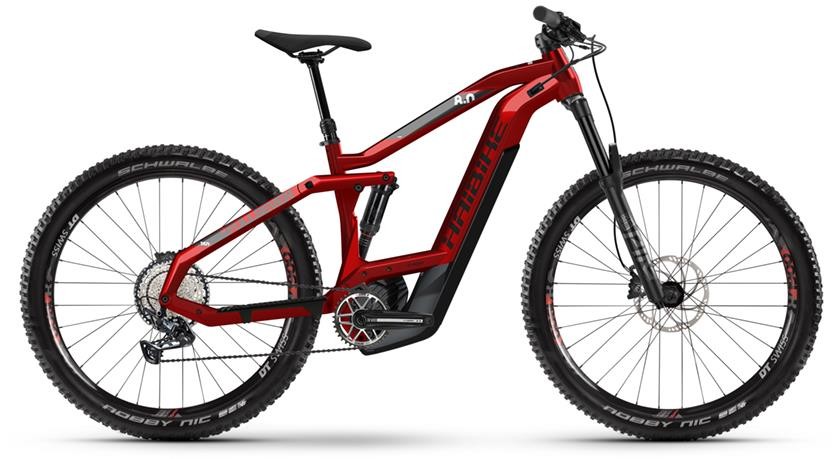

Haibike SDURO Fullseven LT 8.0 2021 - Electric Mountain Bike
The SDURO FullSeven LT 8.0 is the top model in the Long Travel e-mountain bike series. With 150mm travel, it offers ambitious trail bikers enough power to cope with challenging terrain. With the DualBattery system and mid-drive motor, the Long Travel eMTB just eats up the miles. The optional Range Extender will expand your battery capacity by 500Wh to a total of 1,125Wh, raising your eBiking experience to all new levels!
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | aluminium 6061, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm |
Fork | RockShox Yari RC air 160 |
Rear Shock | RockShox, Deluxe Select Plus, Air, 60.0 mm |
Headset | A-Head Tapered aluminium Feimin FP-H858 Alloy 1,5" |
Stem | Haibike Components |
Bars | Haibike Components |
Front Brake | Magura, MT7, 203 mm, 4-piston disc brake |
Rear Brake | Magura, MT7, 203 mm, 4-piston disc brake |
Brake Lever | Magura MT5 HC-lever aluminium carbotecture |
Rear Mech | Shimano, XT M8100 |
Shifters | Shimano, Deore SLX M7100, 12 speed |
Speed | 12 |
Rims | DT Swiss H1900 |
Front Tyre | Schwalbe Nobby Nic Evo SnakeSkin 70-584 |
Rear Tyre | Schwalbe Nobby Nic Evo SnakeSkin 70-584 |
Seat Post | Haibike Components Dropper-Post Remote 31.6 aluminium telescope Hodaka |
Saddle | Selle Royal Vivo |
Chainset | Haibike Components, The Crank ++, Aluminium |
Bottom Bracket | Integrated In Motor |
Chain | Shimano, SLX M7100 |
Cassette | Shimano, SLX M7100, 10 - 51 teeth |
Pedals | Freeridepedal |
Battery Size (WH) | 625wh |
Motor | Bosch Performance CX |
User Interface | Bosch, Purion |
Haibike Fullseven LT 2021 Size Chart
Size |
Height (cm) |
Height (Inches) |
S / 41cm |
150 - 160 |
4’11” – 5’3” |
M / 44cm |
160 – 170 |
5’3” – 5’7” |
L / 47cm |
170 – 175 |
5’7” – 5’8” |
XL / 50cm |
175 – 184 |
5’8” – 6’0” |
Haibike SDURO Fullseven LT 2021 Geometry
FRAME SIZE |
S |
M |
L |
XL |
FRAME HEIGHT (CM) |
41.0 cm |
44.0 cm |
47.0 cm |
50.0 cm |
SEAT TUBE ANGLE |
75.0° |
75.0° |
75.0° |
75.0° |
SEAT TUBE OFFSET (MM) |
15.0 mm |
15.0 mm |
15.0 mm |
15.0 mm |
SEAT ANGLE |
76.0° |
76.0° |
76.0° |
76.0° |
HEAD TUBE LENGTH |
120.0 mm |
130.0 mm |
145.0 mm |
160.0 mm |
HEAD TUBE ANGLE |
66.0° |
66.0° |
66.0° |
66.0° |
TOP TUBE HORIZONTAL |
560.0 mm |
573.0 mm |
596.0 mm |
630.0 mm |
CHAIN STAY LENGTH |
455.0 mm |
455.0 mm |
455.0 mm |
455.0 mm |
BOTTOM BRACKET DROP |
-20.0 mm |
-20.0 mm |
-20.0 mm |
-20.0 mm |
WHEELBASE |
1182.0 mm |
1196.0 mm |
1222.0 mm |
1258.0 mm |
STACK |
619.0 mm |
628.0 mm |
642.0 mm |
655.0 mm |
REACH |
410.0 mm |
420.0 mm |
440.0 mm |
470.0 mm |
What size frame do I need if I am between sizes? - read here
