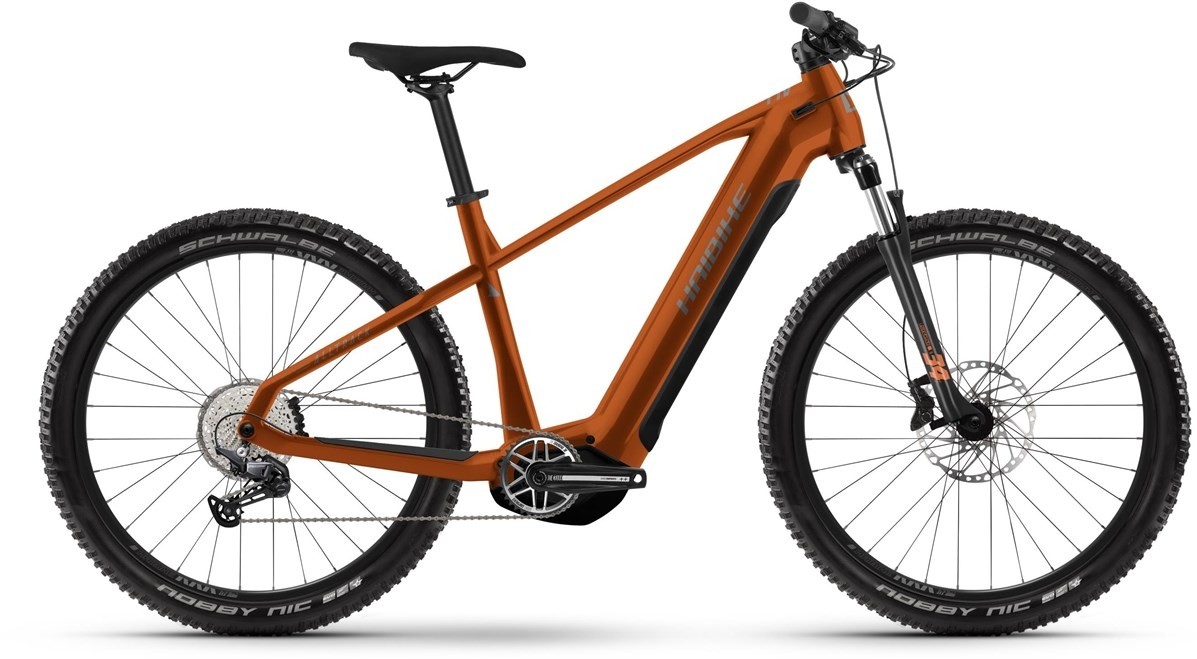

Haibike AllTrack 6 29 - Nearly New - M 2023 - Electric Mountain Bike
Are you looking for a reliable hardtail eMTB for sporty use? Then our ALLTRACK 6 is the ideal bike for your eBike adventures! The brand new, powerful Yamaha PW-S2 motor, together with the integrated 720 Wh battery ensures great range, on or off road. Robust parts such as Shimano Deore rear derailleur, powerful disc brakes and the 120 mm SR Suntour suspension fork guarantee safe and comfortable riding pleasure.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, Steckachse M12 (1.00) x 148mm, disc brake Post Mount |
| Fork | SR Suntour XCM34 NLO DS, steel spring/oil, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Headset | A-Head Tapered |
| Stem | XLC A-Head, A-head, Bar bore: 31.8mm |
| Bars | XLC 720mm |
| Front Brake | Shimano MT410, aluminium, 180mm |
| Rear Brake | Shimano MT410, aluminium, 180mm |
| Brake Lever | Shimano MT401, aluminium |
| Rear Mech | Shimano Deore M5100, 11-speed |
| Shifters | Shimano Deore M5100, trigger switch |
| Speed | 11 |
| Rims | Rodi Tryp 30, eyed, double-walled rim, aluminium |
| Front Hub | Shimano MT400-B |
| Rear Hub | Shimano MT400-B |
| Spokes | Sapim Leader, black |
| Front Tyre | Schwalbe Nobby Nic Performance, 65-622 |
| Rear Tyre | Schwalbe Nobby Nic Performance, 65-622 |
| Seat Post | patent, 34.9mm, aluminium |
| Saddle | Selle Royal Vivo Unitech |
| Chainset | steel, 38 |
| Bottom Bracket | Integrated |
| Chain | SHIMANO HG601 |
| Cassette | Shimano M5100, 11-51 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Intube, PW S2 720Wh |
| Motor | Yamaha PW-S2, 250W, 75Nm, 25km/h |
| User Interface | Yamaha Side Switch |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
