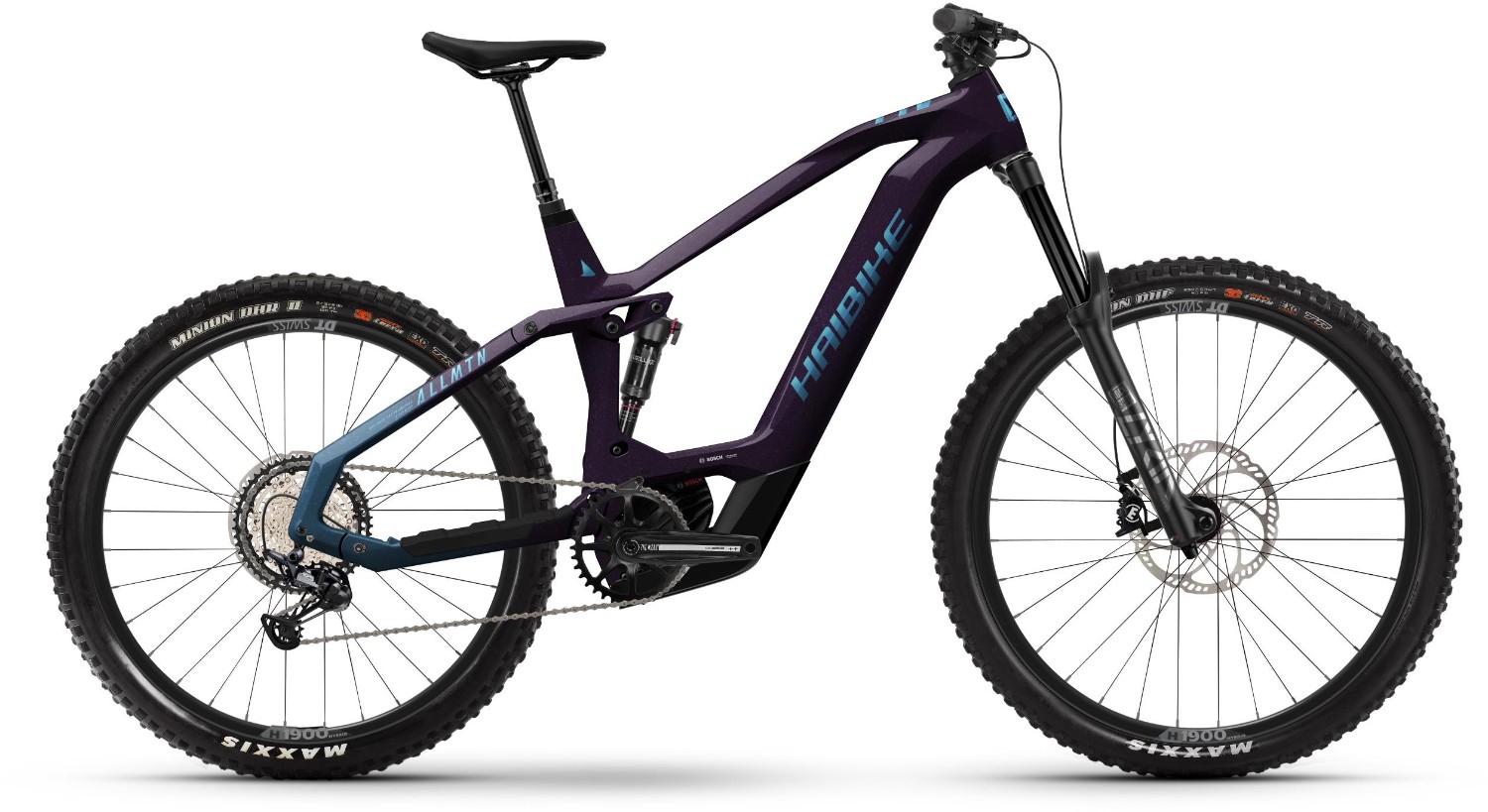

Haibike AllMtn CF 11 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Carbon/Aluminium, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 160mm |
Fork | RockShox Lyrik Select RC, air/oil, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
Rear Shock | RockShox Deluxe Select Plus, air |
Headset | Acros Cable integration |
Stem | Alu, A-head, Bar bore: 31.8mm |
Bars | Haibike Components TheBar ++ 780mm |
Front Brake | Magura MT5, 203mm |
Rear Brake | Magura MT5, 203mm |
Brake Lever | Magura MT5 HC-lever, aluminium |
Rear Mech | Shimano Deore XT M8100 Shadow Plus, 12-speed |
Shifters | Shimano Deore SLX M7100 |
Speed | 12 |
Rims | DT Swiss H1900 Wheelset |
Front Tyre | Maxxis, Minion DHF II, 65-622, 29 x 2.5 inch |
Rear Tyre | Maxxis, Minion DHF II, 65-622, 27.5 x 2.5 inch |
Seat Post | Dropper-Post Remote, telescope, 31.6mm, aluminium |
Saddle | fi'zi:k Terra Aidon X5-160 |
Chainset | Haibike Components, The Crank ++, Aluminium, Aluminium, 36 teeth |
Bottom Bracket | Integrated |
Chain | Shimano CN-M6100 |
Cassette | Shimano M6100, 10-51 teeth |
Pedals | Freeridepedal aluminium, mit Reflektor |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Performance CX Smart System, 250W, 85Nm, 25km/h |
User Interface | Bosch Kiox 300 + LED Remote |
Haibike ALLMTN CF 2022 Size Chart
Size |
Height cm |
Height inch |
S |
157 - 169 |
5’2” – 5’7” |
M |
169 - 178 |
5’7” – 5’10” |
L |
178 - 186 |
5’10” – 6’1” |
XL |
186 - 195 |
6’1” – 6’4” |
Haibike ALLMTN CF 2022 Geometry
FRAME SIZE |
S |
M |
L |
XL |
Frame Height |
41.0 cm |
44.0 cm |
47.0 cm |
50.0 cm |
Seat Tube Angle |
75.0 degrees |
75.0 degrees |
75.0 degrees |
75.0 degrees |
Seat Tube Offset |
15.0 mm |
15.0 mm |
15.0 mm |
15.0 mm |
Seat Angle |
75° |
75° |
75° |
75° |
Head Tube Length |
110.0 mm |
110.0 mm |
130.0 mm |
130.0 mm |
Head Tube Angle |
65° |
65° |
65° |
65° |
Top Tube Horizontal |
560.0 mm |
590.0 mm |
620.0 mm |
650.0 mm |
Hchain Stay Length |
460.0 mm |
460.0 mm |
460.0 mm |
460.0 mm |
Bottom Bracket Drop |
-20.0 mm |
-20.0 mm |
-20.0 mm |
-20.0 mm |
Wheelbase |
1195.0 mm |
1225.0 mm |
1258.0 mm |
1288.0 mm |
Stack |
597.0 mm |
597.0 mm |
615.0 mm |
615.0 mm |
Reach |
400.0 mm |
430.0 mm |
455.0 mm |
485.0 mm |
What size frame do I need if I am between sizes? - read here
