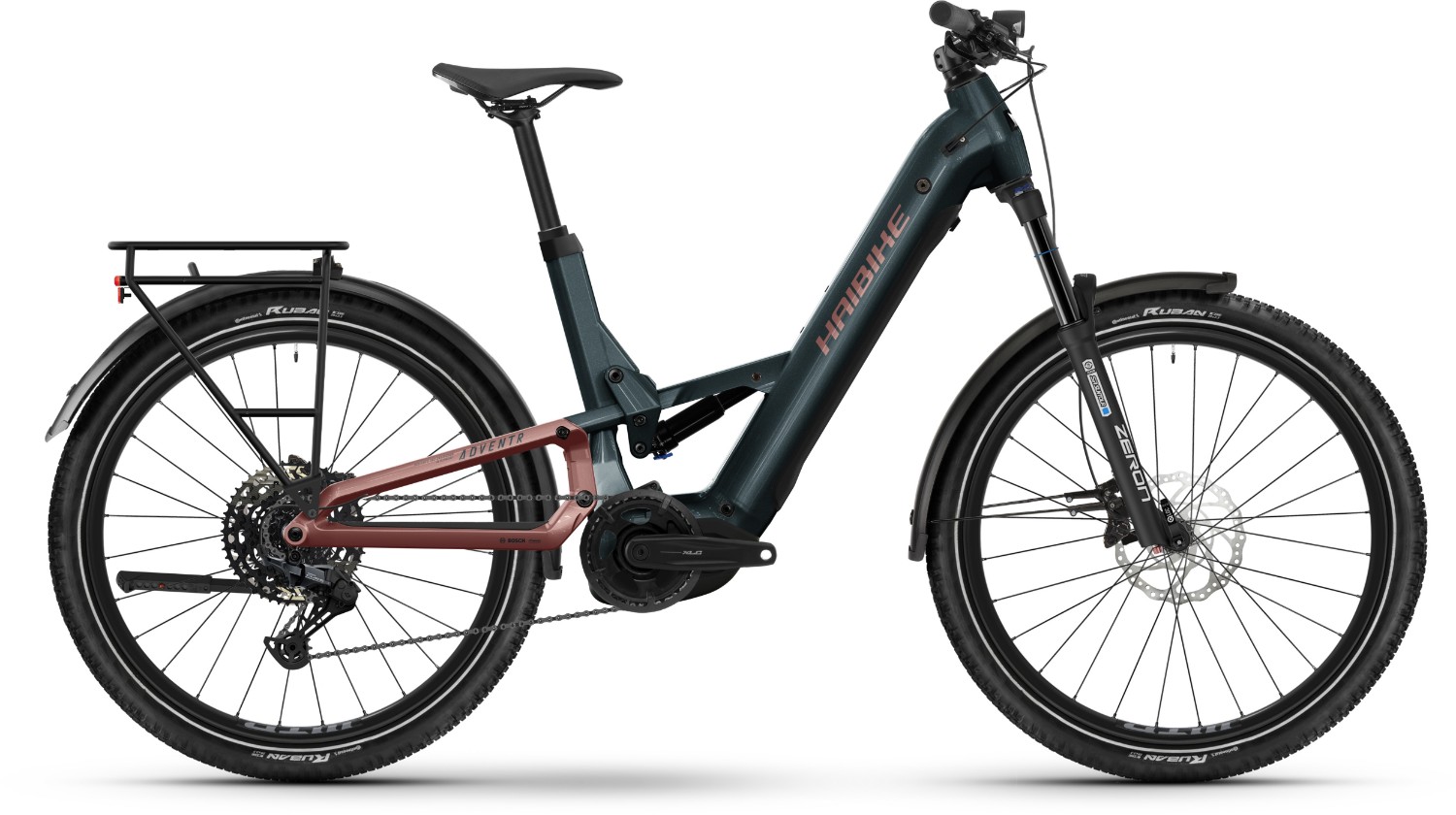

Haibike Adventr 8.5 Low 2025 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, disc brake Post Mount |
| Fork | SR Suntour Zeron 36X 120mm |
| Rear Shock | SR Suntour Edge R |
| Stem | Haibike Alloy |
| Bars | Haibike Components TheBar ++ 780 mm |
| Front Brake | Tektro Orion M745 |
| Rear Brake | Tektro Orion M745 |
| Brake Lever | Tektro Orion M745 |
| Front Mech | N/A |
| Rear Mech | Shimano Cues U6000, 10-speed |
| Shifters | Shimano Cues U6000, rapidfire |
| Speed | 10 |
| Rims | WTB ST |
| Front Hub | Haibike Components The Hub ++ through axle 15x110mm |
| Rear Hub | Haibike Components TheHub ++ Steckachse 12x148 |
| Spokes | Sapim Race |
| Front Tyre | Continental Ruban Reflex, 58-584, reflex |
| Rear Tyre | Continental Ruban Reflex, 58-584, reflex |
| Seat Post | Dropper-Post Remote, telescope, aluminium |
| Saddle | Selle Royal Vivo |
| Chainset | Included in Motor |
| Bottom Bracket | Included in motor |
| Chain | Shimano CUES LG500 |
| Cassette | Shimano Cues LG300-10 |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 600Wh |
| Motor | Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
| User Interface | Bosch Purion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
