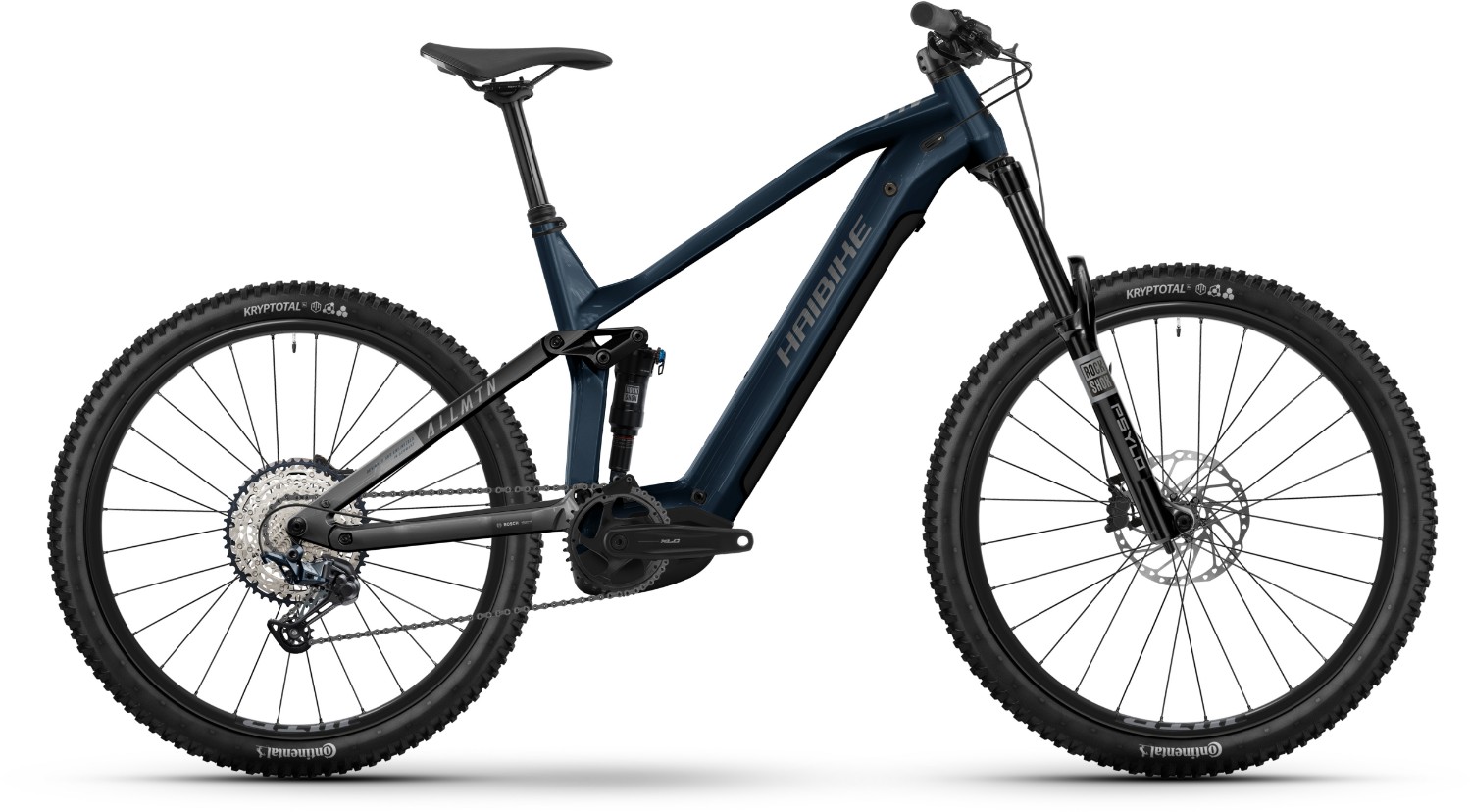

Haibike ALLMTN 6 2025 - Electric Mountain Bike
The Haibike ALLMTN 6 is engineered for riders who want to explore challenging trails and demanding climbs. With 160mm front travel, a Bosch Performance CX motor, and a long-lasting 800Wh battery, this e-MTB combines power, comfort, and control. Its mullet wheel setup ensures agility and stability for ultimate trail performance.
Key Features:
- Frame: Lightweight aluminium frame with an all-mountain geometry for stability and agility
- Front Suspension: RockShox Psylo Gold RC fork with 160mm of travel for confident trail control
- Rear Suspension: RockShox Deluxe Select+ shock with 150mm travel for smooth bump absorption
- Drivetrain: Shimano SLX M7100 12-speed drivetrain for precise and reliable shifting
- Brakes: Shimano MT420 hydraulic disc brakes for powerful and consistent stopping
- Wheels: Mullet setup with 29” front and 27.5” rear WTB ST rims for agility and stability
- Other Feature: Dropper post with remote for quick adjustments on the fly
- Finance Option: Available with 0% APR finance for flexible payment
Drive Information:
- Motor: Bosch Performance Line CX motor, 85Nm torque for powerful assistance on steep climbs
- Battery: Bosch PowerTube 800Wh for extended range on long rides
- User Interface: Bosch Kiox 300 display with LED remote for easy control and ride data
The Bosch Performance CX motor delivers 85Nm of torque, offering smooth and powerful assistance even on the steepest trails. The 800Wh PowerTube battery ensures you can ride longer, and for epic adventures, the optional range extender takes your range even further. The motor’s auto mode automatically adjusts power output based on the terrain, allowing you to focus on the ride.
Suspension duties are handled by a RockShox Psylo Gold RC fork with 160mm of travel and a RockShox Deluxe Select+ rear shock with 150mm travel, soaking up bumps and drops with ease. Shimano’s SLX 12-speed drivetrain ensures crisp and reliable gear changes, while the MT420 brakes provide powerful stopping performance in any conditions.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | aluminium, disc brake Post Mount |
| Fork | RockShox Psylo Gold RC 16mm |
| Rear Shock | RockShox Deluxe Select + |
| Stem | Haibike Alloy |
| Bars | Haibike Components TheBar ++ 780 mm |
| Front Brake | Shimano MT420 |
| Rear Brake | Shimano MT420 |
| Brake Lever | Shimano MT420 |
| Rear Mech | Shimano SLX M7100, 12-speed |
| Shifters | Shimano Deore M6100, trigger switch |
| Speed | 12 |
| Rims | WTB ST |
| Front Hub | aluminum hub |
| Rear Hub | aluminum hub |
| Spokes | Sapim Race |
| Front Tyre | Continental Kryptotal- F, 60-622 |
| Rear Tyre | Continental Xynotal Trail Endurance, 65-584 |
| Seat Post | Dropper-post remote, aluminium |
| Saddle | Prologo Proxim W400 |
| Chainset | Included in Motor |
| Bottom Bracket | Included in motor |
| Chain | Shimano M6100 |
| Cassette | Shimano M7100 |
| Pedals | freeride pedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch PowerTube 800Wh |
| Motor | Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
| User Interface | Bosch Kiox 300 + LED Remote |
Haibike AllMtn 2025 Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 45cm |
170 – 175 |
5’3” – 5’9” |
|
L / 50cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 55cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
Haibike 2025 Geometry Chart
| Size | S 41 | M 44 | L 47 | XL 50 |
|---|---|---|---|---|
| Stack | 645 | 654 | 670 | 685 |
| Reach | 420 | 437 | 455 | 472 |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Bottom Bracket Drop | 30 | 30 | 30 | 30 |
| Fork Length | 578 | 578 | 578 | 578 |
| Fork Rake/Offset | 51 | 51 | 51 | 51 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1220 | 1252 | 1275 | 1293 |
| Top Tube Length (horizontal) | 570 | 600 | 627 | 650 |
| Seat Tube Length | 410 | 440 | 470 | 500 |
| Seat Tube Angle | 74.5° | 74.5° | 74° | 76.9° |
| Wheel Size | 2927.5 | 2927.5 | 2927.5 | 2927.5 |
| Body Height (cm) | 159-169 | 169-179 | 177-187 | 185-197 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
