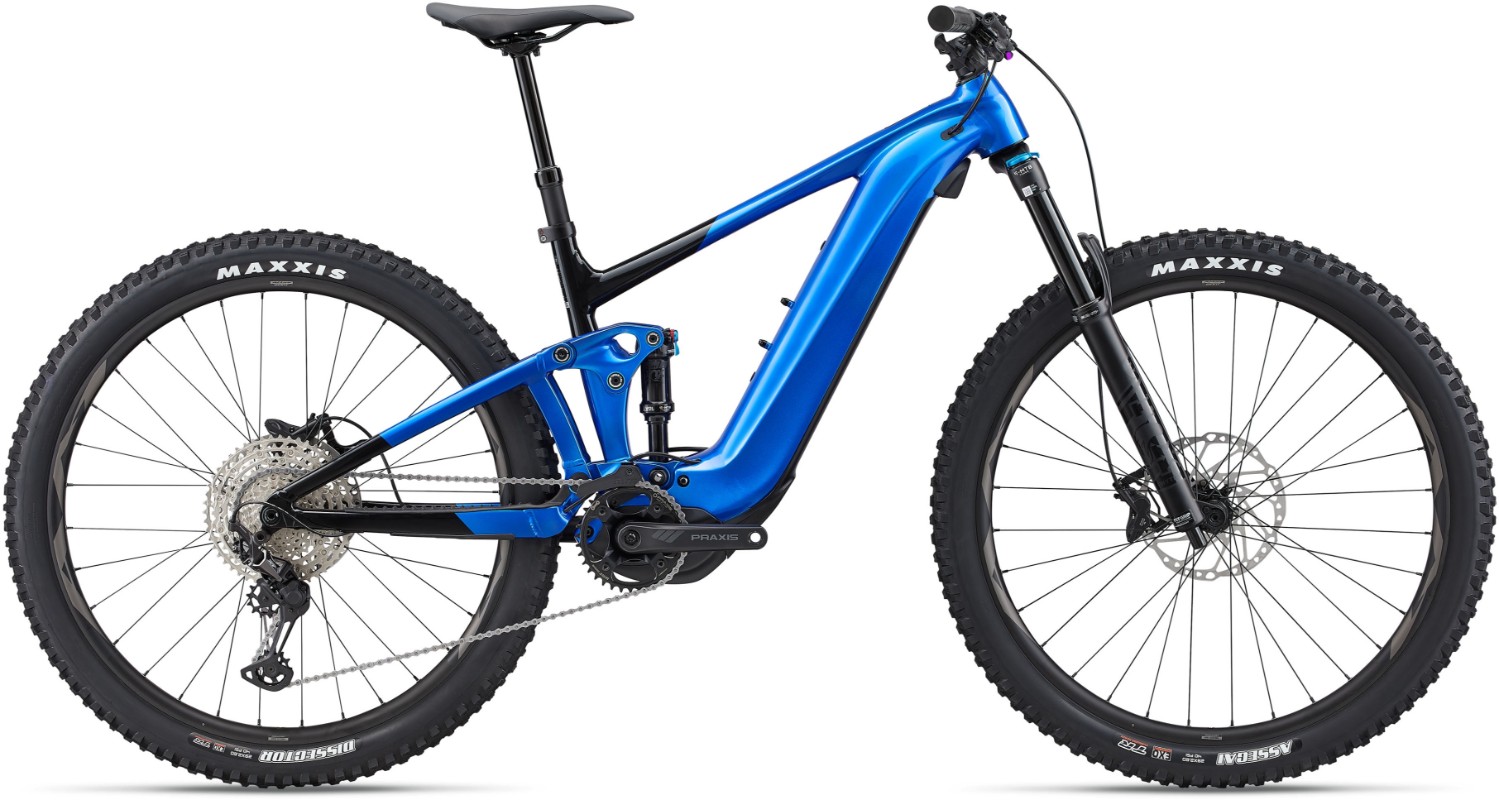

Giant Trance X E+ 2 Pro 29 2023 - Electric Mountain Bike
New high-performance SyncDrive Pro motor delivers 85Nm of torque and 400 percent tunable support. The lightweight and durable ALUXX SL aluminum frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. New integrated RideControl Go and RideControl Ergo 3 units offer clean, simple control buttons, and the EnergyPak Smart 750 battery system increases range by up to 20 percent.
Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control
Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain
New flip chip feature lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible |
| Fork | Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimised |
| Rear Shock | Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned |
| Stem | Giant Contact SL 35 |
| Bars | Giant Contact 35 Trail, 35x780mm |
| Front Brake | Tektro HD-M545 4 piston hydraulic disc brakes, 203mm rotors |
| Rear Brake | Tektro HD-M545 4 piston hydraulic disc brakes, 203mm rotors |
| Brake Lever | Tektro HD-M545 |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore XT, 12-Speed, Shadow+ |
| Shifters | Shimano SLX |
| Speed | 12 |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Front Hub | Shimano MT410 Boost, Center-Lock. 110x15 |
| Rear Hub | Shimano MT410 Boost, Center-Lock, 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim |
| Front Tyre | Maxxis Assegai 29x2.6" foldable, Tubeless, EXO |
| Rear Tyre | Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ |
| Seat Post | Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) |
| Saddle | Giant Romero Trail |
| Chainset | Praxis WaveTM 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170) |
| Bottom Bracket | Integrated |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Pedals | Flat pedal |
| Battery Size (WH) | EnergyPak Smart 750Wh, EnergyPak Plus range extender compatible |
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| User Interface | RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
