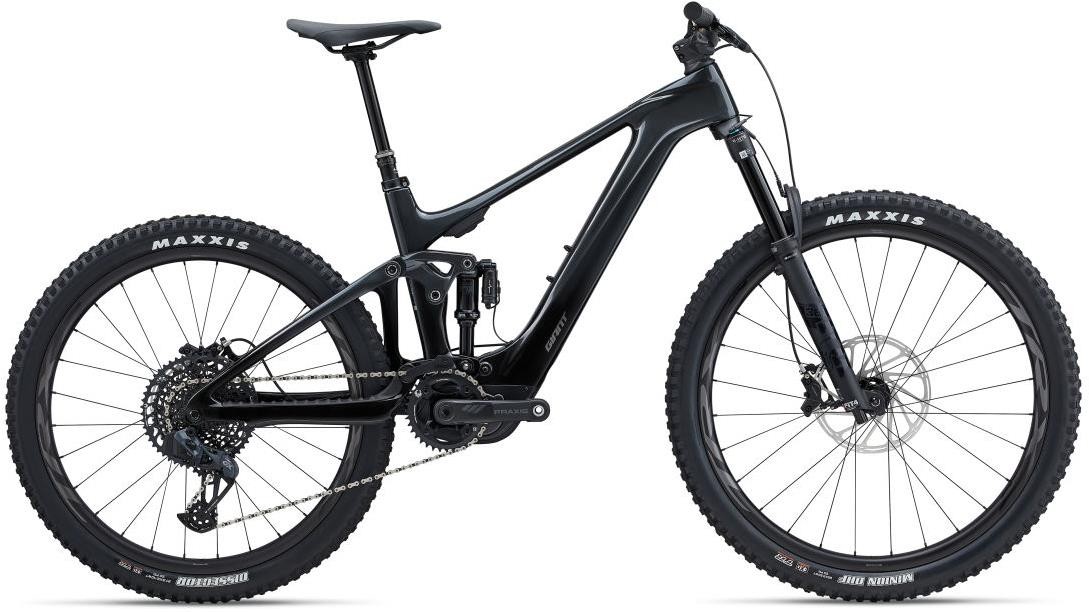

Giant Trance X Advanced E+ Elite 1 2023 - Electric Mountain Bike
Accelerate up climbs, float through rock gardens, experience more power, agility and control with this lightweight, full-suspension e-mtb. A new ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.
Lighter weight
New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 400 / SYNCDRIVE PRO
Highlights
All-new composite frame features adjustable geometry with a new flip chip feature. The SyncDrive Pro motor delivers 85Nm of torque for a seamless boost of power even at low speeds and on technical trails. The new composite Giant Contact SLR Trail integrated handlebar has a sleek design for precision off-road control. It comes with two control centres, the RideControl Go multifunctional on/off button on the top tube, and the new RideControl Ergo 3 handlebar-mounted remote.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Boost 110x15QR, electronic adaptive suspension, E-bike integrated |
| Rear Shock | Fox Float Performance Elite Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated |
| Stem | Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System |
| Bars | Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm, meets DH test standard |
| Front Brake | SRAM Code R, hydraulic disc, 220mm[F] /200mm[R] |
| Rear Brake | SRAM Code R, hydraulic disc, 220mm[F] /200mm[R] |
| Brake Lever | SRAM Code R |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | SRAM Gx Eagle AXS |
| Shifters | SRAM AXS Rocker Paddle, wireless electronic shifting |
| Speed | 12 |
| Rims | TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width |
| Front Hub | TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle |
| Rear Hub | TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle |
| Front Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Rear Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Seat Post | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
| Saddle | Giant Romero, Neutral |
| Chainset | Praxis Performance Carbon e-crank arms, (S:160,M/L:165, XL:170) SRAM X-SYNC Eagle 36T chain ring |
| Chain | SRAM GX Eagle PowerLock |
| Cassette | SRAM XG-1275, 10-52T, 12-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Motor | Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology |
| User Interface | Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display" |
Giant Trance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Trance E Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 445 | 482 | 507 |
| SEAT TUBE ANGLE | 74.0° | 74.0° | 74.0° | 74.0° |
| TOP TUBE LENGTH (mm) | 585 | 610 | 630 | 655 |
| HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 130 |
| HEAD TUBE ANGLE | 66.5° | 66.5° | 66.5° | 66.5° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 109 | 109 | 109 | 109 |
| WHEELBASE (mm) | 1184 | 1210 | 1231 | 1259 |
| CHAIN STAY LENGTH (mm) | 470 | 470 | 470 | 470 |
| BOTTOM BRACKET DROP (mm) | 15 | 15 | 15 | 15 |
| STACK (mm) | 579 | 584 | 593 | 611 |
| REACH (mm) | 418 | 442 | 460 | 479 |
| STAND OVER HEIGHT (mm) | 739 | 740 | 772 | 792 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 40 | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
