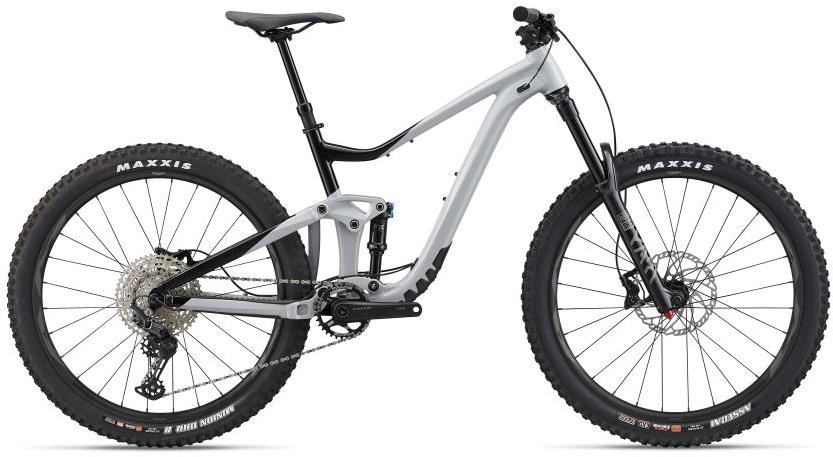

Giant Trance X 3 Mountain Bike 2023 - Trail Full Suspension MTB
Float through rock gardens, hit the jumps, and find the faster line. With quick-handling 27.5 wheels and adjustable frame geometry, the Giant Trance X 3 lively trail bike is a party on wheels.
Key features:
- ALUXX SL-Grade Aluminum front and rear triangles
- RockShox Yari RC forks with 160mm of compliant tralve
- Fox Float DPS Performance shock takes care of the 145mm of rear travel
- Shimano 1x12 gears offer smooth and consistent shifting
- Shimano brakes offer all weather stopping power
- Sizes: S, M, L, XL
- Colours: Good Grey / Black
- The Giant Trance X 3 is available with 0% APR Finance
Key performance factors
Adjustable frame geometry
New flip chip feature lets you change the headtube and seattube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
27.5 agility and control
27.5-inch wheels balance agility and control, giving you the ability to roll over rugged terrain, flick the bike at speed, change lines, and explode out of corners.
Progressive suspension
Updated Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 145mm of rear travel (and 160mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Built for those who favor the responsive, agile handling of 27.5 wheels, Trance X features a flip chip that lets you adjust the frame geometry for riding style and terrain. You can choose a steeper or slacker head tube angle and either a 20mm or 30mm bottom bracket drop. The ALUXX SL aluminum frame has an updated Maestro rear suspension featuring 145mm of smooth, active rear travel. A trunnion-mount shock and Advanced Forged Composite rocker arm help soak up bumps, giving you traction and control to float through rocks, roots and ruts. Confidence is further bolstered by a 160mm travel suspension fork up front.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, flip chip, 12x148mm thru-axle |
| Fork | RockShox Yari RC, Motion Control, DebonAir, 37mm offset, 160mm, 15x110 Stealth, custom tuned for Giant |
| Rear Shock | Fox Float DPS Performance, 185/55, custom tuned for Giant |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Bars | Giant Contact TR35, 800x35mm, 20mm rise |
| Front Brake | Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Rear Brake | Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Lever | Shimano BL-MT401 |
| Rear Mech | Shimano Deore |
| Shifters | Shimano Deore, 1x12 |
| Speed | 12 |
| Rims | Giant AM 27.5 sleeve-joint rim, 30mm inner width |
| Front Hub | Giant Boost, sealed bearing |
| Rear Hub | Giant Boost, sealed bearing |
| Spokes | Sapim |
| Front Tyre | Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR |
| Rear Tyre | Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless |
| Seat Post | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm |
| Saddle | Giant Romero |
| Chainset | Praxis Cadet M24 HD, 32t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Praxis, press fit |
| Chain | KMC X-12 |
| Cassette | Shimano Deore, 10x51 |
| Pedals | Resin Platform Pedals |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
