(no reviews)Product ID: 261677

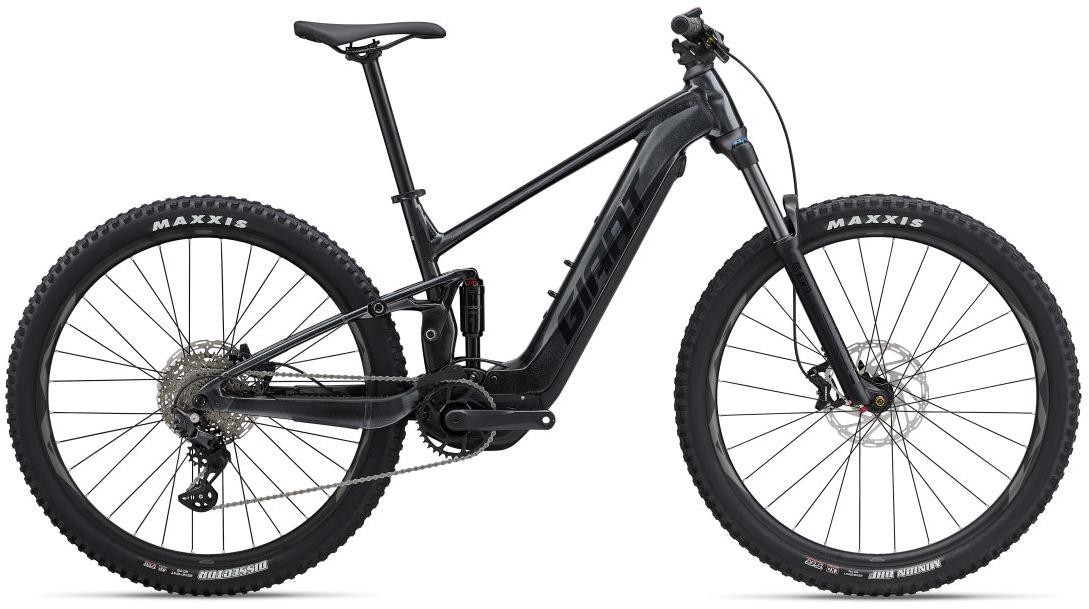

Giant Stance E+ 2 625 2023 - Electric Mountain Bike
Ride trails with confidence, control and flat-out fun. This new e-bike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.
Powerful pedalling support
The new compact SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for high power, even at low speeds on technical trails.
Confident handling
ALUXX SL aluminium frame with 120mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
Long-lasting fun
The new EnergyPak offers ample range and the integrated battery pack makes charging quick and easy.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX SL-grade aluminium, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset |
| Fork | SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle |
| Rear Shock | SR Suntour Raidon R, 190x45mm, custom tuned |
| Stem | Giant Contact |
| Bars | Giant Connect TR Riser 31.8x780mm |
| Front Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Rear Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Lever | Tektro HD-M745 Orion |
| Front Mech | MRP HD2 co-moulded chain guide |
| Rear Mech | Shimano Deore LinkGlide, 10-speed |
| Shifters | Shimano Deore LinkGlide |
| Speed | 10 |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Front Hub | Giant eTracker Boost, [F] 110x15 [R] 148x12mm |
| Rear Hub | Giant eTracker Boost, [F] 110x15 [R] 148x12mm |
| Spokes | Stainless steel |
| Front Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F] Maxxis Dissector 29X2.40" WT Foldable, TLR, EXO, 60TPI [R] |
| Rear Tyre | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F] Maxxis Dissector 29X2.40" WT Foldable, TLR, EXO, 60TPI [R] |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Giant Sport |
| Chainset | FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T |
| Bottom Bracket | Integrated |
| Chain | Shimano, LinkGlide, CN-LG500 |
| Cassette | Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed |
| Pedals | Resin Platform |
| Battery Size (WH) | EnergyPak Smart 625 EnergyPak Plus 250Wh range extender compatible |
| Motor | SyncDrive Sport, 75Nm |
| User Interface | RideControl Dash, full colour LCD screen |
Giant Stance E Sizing & Geometry
|
Inside Leg (Inches) Vs Rider Height (Feet & Inches) |
26” |
27” |
28” |
29” |
30” |
31” |
32” |
33” |
34” |
35” |
36” |
37” |
|
5’ 3” |
|
|
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 4” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 5” |
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
|
5’ 6” |
|
S |
S |
S |
S |
S |
|
|
|
|
|
|
|
5’ 7” |
|
|
S |
S |
S |
M |
M |
|
|
|
|
|
|
5’ 8” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 9” |
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
|
5’ 10” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
5’ 11” |
|
|
|
|
M |
M |
M |
M |
M |
|
|
|
|
6’ 0” |
|
|
|
|
|
M |
M |
L |
L |
L |
|
|
|
6’ 1” |
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
|
6’ 2” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 3” |
|
|
|
|
|
|
L |
L |
L |
L |
L |
|
|
6’ 4” |
|
|
|
|
|
|
|
L |
L |
XL |
XL |
XL |
Giant Stance 27.5 Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 46 | 46 | 46 | 46 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1162 | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| STACK (mm) | 590 | 599 | 608 | 622 |
| REACH (mm) | 405 | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 731 | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 60 | 60 | 70 |
| CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| WHEEL SIZE | 27.5+ | 27.5+ | 27.5+ | 27.5+ |
Giant Stance 29 Geometry
| M | L | XL | |
|---|---|---|---|
| SEAT TUBE LENGTH (mm) | 432 | 482 | 507 |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| TOP TUBE LENGTH (mm) | 600 | 625 | 650 |
| HEAD TUBE LENGTH (mm) | 110 | 120 | 135 |
| HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° |
| FORK RAKE (mm) | 51 | 51 | 51 |
| TRAIL (mm) | 106.9 | 106.9 | 106.9 |
| WHEELBASE (mm) | 1183 | 1209 | 1236 |
| CHAIN STAY LENGTH (mm) | 465 | 465 | 465 |
| BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 |
| STACK (mm) | 599 | 608 | 622 |
| REACH (mm) | 422 | 444 | 465 |
| STAND OVER HEIGHT (mm) | 746 | 778 | 781 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 |
| STEM LENGTH (mm) | 50 | 50 | 60 |
| CRANK LENGTH (mm) | 165 | 165 | 170 |
| WHEEL SIZE | 29" | 29" | 29" |
