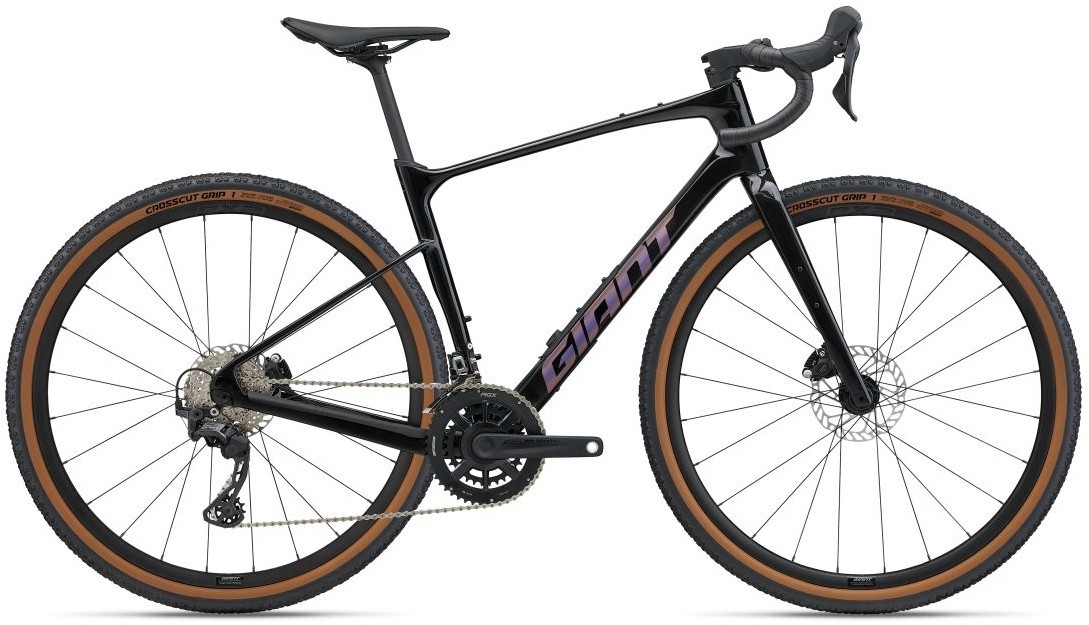

Giant Revolt Advanced 2 - Nearly New - L 2025 - Gravel Bike

This Revolt Advanced 2 - Nearly New - L gravel bike is rated the highest possible grade which reflects that the bike is in excellent condition and can be reasonably considered to be like new. Having never been ridden, the only minor cosmetic marks are on the brake lever and rear dropout.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.
Key Performance Factors
FAST AND VERSATILE
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
Highlights
With a new composite frameset featuring fully integrated cable housing, this lively gravel bike helps you push your limits on variable terrain. The D-Fuse seatpost and handlebar absorb shocks and vibrations, giving you greater control and less fatigue. A flip chip on the all-new, full composite rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round seatpost or dropper post. Details include a new internal storage compartment on the down tube and additional frame mounts to add bottle cages, racks and other accessories.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage |
Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Bars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
Front Brake | Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Rear Brake | Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Brake Lever | Shimano GRX RX-610 hydraulic |
Front Mech | Shimano GRX RX-820 |
Rear Mech | Shimano GRX RX-820 |
Shifters | Shimano GRX RX-610, 2x12 |
Speed | 24 |
Rims | Giant P-X2 Disc wheelset, alloy |
Front Hub | Giant alloy, 12mm thru-axle |
Rear Hub | Giant alloy, 12mm thru-axle |
Spokes | Sapim |
Front Tyre | Giant Crosscut Grip TR, 700x40c, tubeless |
Rear Tyre | Giant Crosscut Grip TR, 700x40c, tubeless |
Seat Post | Giant D-Fuse, composite, 14mm offset |
Saddle | Giant Grit |
Chainset | FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | FSA BB-AL86, press fit |
Chain | KMC X12L-1 |
Cassette | Shimano CS-HG710, 12-speed, 11x36 |
Pedals | Resin Platform |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
