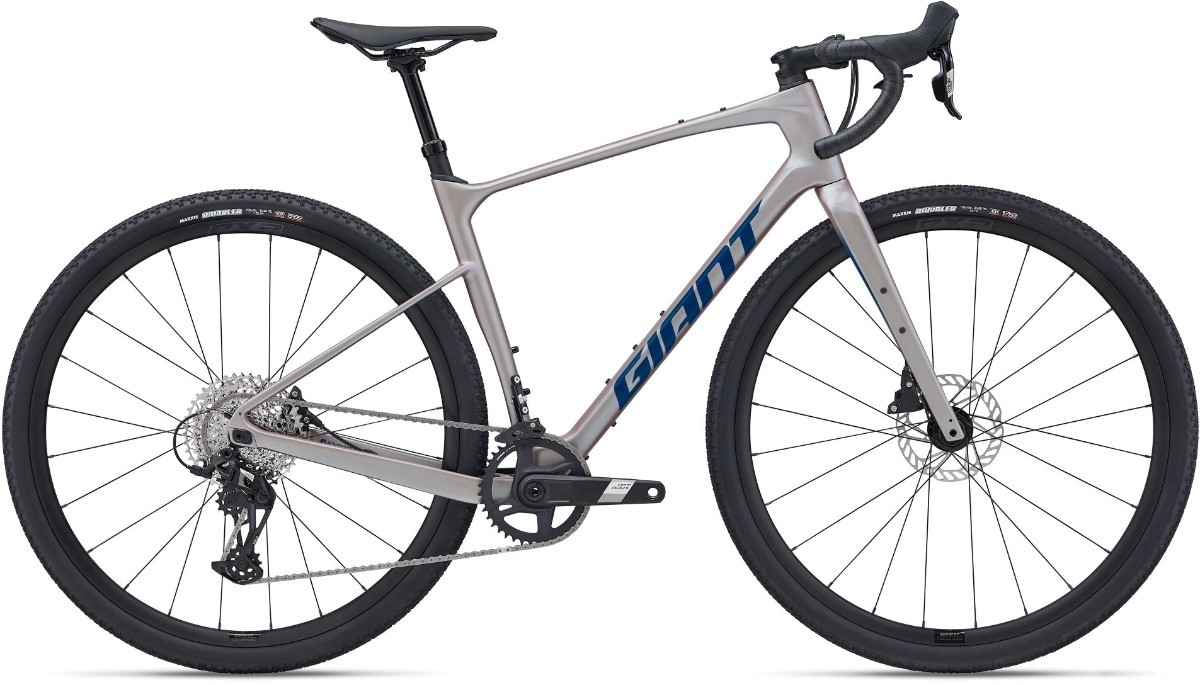

Giant Revolt Advanced 1 - Nearly New – ML 2024 - Gravel Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
Bars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
Front Brake | SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Rear Brake | SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
Brake Lever | SRAM Rival 1, left lever dropper switch |
Rear Mech | SRAM Apex XPLR |
Shifters | SRAM Apex 1, 1x12 |
Speed | 12 |
Rims | Giant P-X2 Disc wheelset, alloy |
Front Hub | Giant alloy, 12mm thru-axle |
Rear Hub | Giant alloy, 12mm thru-axle |
Spokes | Sapim |
Front Tyre | Maxxis Rambler, 700x45c, tubeless |
Rear Tyre | Maxxis Rambler, 700x45c, tubeless |
Seat Post | Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm |
Saddle | Giant Approach |
Chainset | SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | SRAM DUB, press fit |
Chain | SRAM Apex D1 |
Cassette | SRAM PG-1231, 12-speed, 11x44 |
Pedals | Resin Platform |
Typical Bike Size Chart
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Giant Revolt Advanced 1 - Nearly New – ML 2024 - Gravel Bike.
This product is no longer available.
