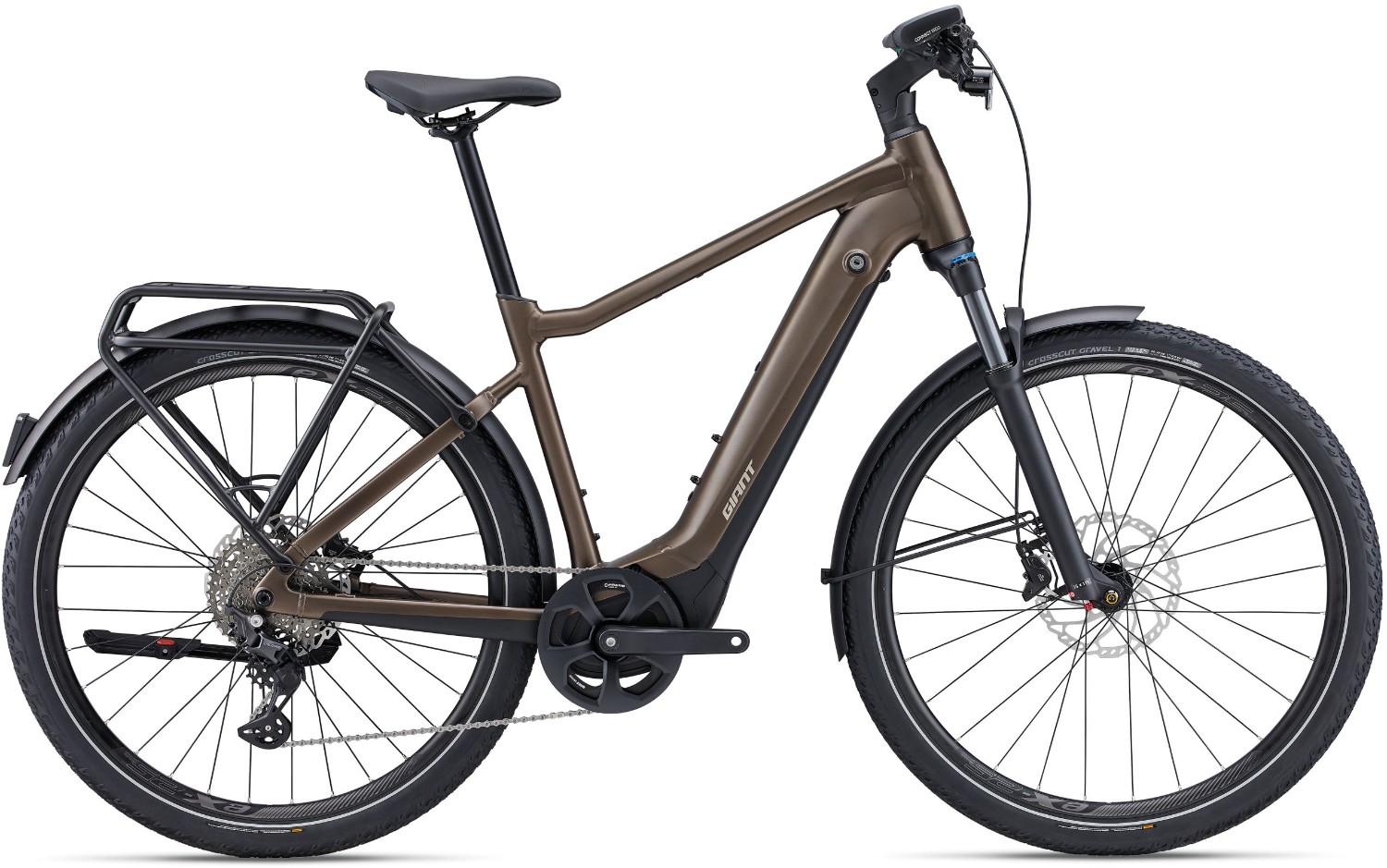

Giant Explore E+ Pro 1 GTS (DD) 2024 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALUXX aluminium, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount |
| Fork | SR Suntour XCR34 Air Boost, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle |
| Stem | Giant Contour EVO integrated 16⁰ (S/M:80mm L/XL/XXL 100mm) |
| Bars | Giant Contour Comfort Riser 31.8x690mm |
| Front Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 180mm |
| Rear Brake | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 180mm |
| Brake Lever | Tektro HD-M745 Orion |
| Rear Mech | Shimano Deore LinkGlide |
| Shifters | Shimano Deore, LinkGlide 1x10 |
| Speed | 10 |
| Rims | eX25, Tubeless Ready, 622x25 Aluminium |
| Front Hub | Giant eTracker, [F] 110x15 [R] 148x12 |
| Rear Hub | Giant eTracker, [F] 110x15 [R] 148x12 |
| Spokes | Stainless steel, e-bike optimized |
| Front Tyre | Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready |
| Rear Tyre | Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready |
| Seat Post | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Selle Royal Vivo Ergo Moderate Unisex |
| Chainset | Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring |
| Chain | Shimano LinkGlide, CN-LG500 |
| Cassette | Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed |
| Pedals | Aluminum Platform |
| Battery Size (WH) | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604) |
| Motor | Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology |
| User Interface | Giant RideDash EVO, high-angle visibility, 3" full color LCD display, on-board navigation |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Giant Explore E+ Pro 1 GTS (DD) 2024 - Electric Hybrid Bike.
This product is no longer available.
