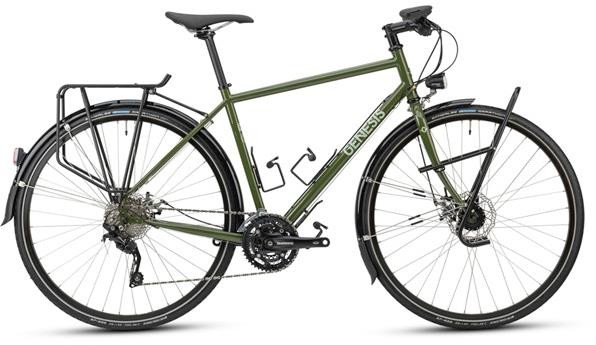

Genesis Tour De Fer 20 2022 - Touring Bike
The Tour de Fer 20 is ready for open world adventures.
A durable Reynolds 725 frame and no-nonsense components makes the Tour de Fer 20 a cyclo-tourist’s dream.
Shimano’s latest Deore groupset delivers massive range with its touring friendly triple-chainset, while Promax cable disc brakes bring reliable stopping in all conditions – even when carrying heavy loads.
Dressed with a Tubus Cargo rear rack, custom length extra-long Chromoplastic mudguards and a SP dynamo hub with B&M front and rear lights and a flat bar set up, you're ready for your next adventure.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Reynolds 725 Heat-Treated chromoly |
| Fork | Genesis full Chromoly |
| Headset | PT-1770 EC34 Upper / EC34 Lower |
| Stem | Genesis Alloy, 31.8mm, -6 deg, 100mm |
| Bars | Genesis Alloy 18mm rise, 8deg backsweep, XS = 580MM, S/M = 600MM, L/XL = 620MM |
| Front Brake | PROMAX DSK-717RA |
| Rear Brake | PROMAX DSK-717RA |
| Brake Lever | PROMAX XL-91 |
| Front Mech | Shimano Deore FD-T6000-L-3 |
| Rear Mech | Shimano Deore RD-M6000-SGS |
| Shifters | Shimano Deore SL-M6000 3X10spd |
| Speed | 30 |
| Rims | Sun Ringle Rhyno Lite |
| Front Hub | Shimano Front - DH-3D37 Dynamo hub / Rear - FH-M4050 |
| Rear Hub | Shimano Front - DH-3D37 Dynamo hub / Rear - FH-M4050 |
| Spokes | Steel 14g |
| Front Tyre | Schwalbe Marathon |
| Rear Tyre | Schwalbe Marathon |
| Seat Post | Genesis Alloy 27.2mm XS/S/M = 350mm, L/XL = 400mm |
| Saddle | Genesis |
| Chainset | Shimano FC-T611 44/32/24T, 170mm |
| Bottom Bracket | Shimano BB-ES300 |
| Chain | KMC X10 |
| Cassette | Shimano CS-HG500 11-34T |
| Pedals | NW-99K with cage |
Genesis Tour De Fer 2021 Size Chart
| Size | Height (cm) | Height (Inches) |
| XS | 150 - 160 | 4'11 - 5'3 |
| S | 158 - 168 | 5'2 - 5'6 |
| M | 166 - 176 | 5'5 - 5'9 |
| L | 174 - 185 | 5'8 - 6'1 |
| XL | 184 - 194 | 6'1 - 6'4 |
Genesis Tour De Fer 2021 Geometry
| XS | S | M | L | XL | |
| FRAME SEAT TUBE | 450 | 480 | 510 | 530 | 570 |
| FRAME TOP TUBE | 533 | 547 | 578 | 604 | 636 |
| FRAME REACH | 365 | 375 | 395 | 415 | 435 |
| FRAME STACK | 566 | 580 | 599 | 618 | 637 |
| FRAME HEAD TUBE | 125 | 140 | 160 | 180 | 200 |
| FRAME HEAD ANGLE | 71 | 71 | 71 | 71 | 71 |
| FRAME SEAT ANGLE | 73.5 | 73.5 | 73 | 73 | 72.5 |
| FRAME BB DROP | 75 | 75 | 75 | 75 | 75 |
| FRAME WHEEL BASE | 1041 | 1056 | 1083 | 1109 | 1136 |
| FORK OFFSET | 55 | 55 | 55 | 55 | 55 |
| STANDOVER | 758 | 778 | 799 | 807 | 843 |
