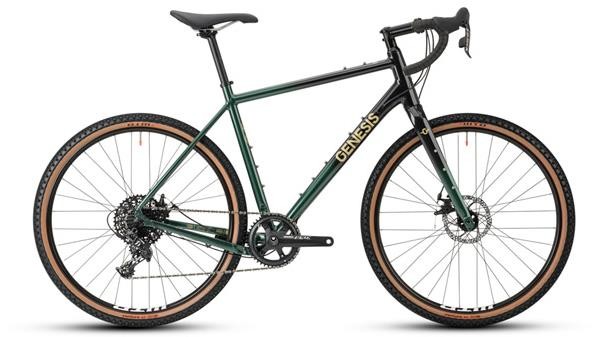

Genesis Fugio 10 - Alloy 2022 - Gravel Bike
The Fugio 10 trades steel for an aluminium frameset, keeping the grin on your face and cash in your wallet.
Our entry-level gravel drift machine sacrifices none of the fun factor and still gets a full carbon fork, along with all the mounts you’ll need for that after-hours adventure.
Clearance for 50mm tyres on the spec’d 650B wheelset, or the option to swap to 700c wheels and 40mm rubber make this a bike that’s as adaptable as it is enthusiastic.
SRAM’s Apex 1X drivetrain keeps things simple, with a wide-range 11-42T cassette matched to a 42T chainring up front.
That should be enough to find some creative lines on your local trails and handle the hack back through the city.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061 Aluminium |
| Fork | Genesis full carbon gravel disc fork w/ anything cage mounts |
| Headset | F23A-2 Taper 1 1/8" - 1 1/5" |
| Stem | Genesis Alloy, 31.8mm, -6 deg, 100mm |
| Bars | Genesis Alloy, 16deg flare, XS = 420MM, SM/MED = 440MM, L=460MM, XL = 480MM |
| Front Brake | TRP Spyre-C FM |
| Rear Brake | TRP Spyre-C FM |
| Brake Lever | SRAM APEX 11spd |
| Rear Mech | SRAM APEX 1 Long Cage 11spd |
| Shifters | SRAM APEX 11spd |
| Speed | 11 |
| Rims | WTB ST i25 TCS 2.0 |
| Front Hub | KT Front - QL-SL2F / Rear QL-X2DR |
| Rear Hub | KT Front - QL-SL2F / Rear QL-X2DR |
| Spokes | Steel 14g |
| Front Tyre | WTB Venture 650x47c |
| Rear Tyre | WTB Venture 650x47c |
| Seat Post | Genesis Alloy 27.2 x 350mm |
| Saddle | Genesis |
| Chainset | SRAM APEX 1 42T, XS/S = 170MM, M/L = 172.5MM, XL = 175MM |
| Bottom Bracket | SRAM BB GXP |
| Chain | KMC X11 |
| Cassette | SRAM CS PG-1130 11/42T 11spd |
Genesis Fugio 2021 Size Chart
| Size | Height (cm) | Height (Inches) |
| XS | 150 - 160 | 4'11 - 5'3 |
| S | 158 - 168 | 5'2 - 5'6 |
| M | 166 - 176 | 5'5 - 5'9 |
| L | 174 - 185 | 5'8 - 6'1 |
| XL | 184 - 194 | 6'1 - 6'4 |
Genesis Fugio 2021 Geometry
| XS | S | M | L | XL | |
| FRAME SEAT TUBE | 470 | 500 | 530 | 550 | 580 |
| FRAME TOP TUBE | 535 | 551 | 567 | 583 | 598 |
| FRAME REACH | 365 | 375 | 385 | 395 | 405 |
| FRAME STACK | 556 | 575 | 594 | 613 | 631 |
| FRAME HEAD TUBE | 125 | 145 | 165 | 185 | 205 |
| FRAME HEAD ANGLE | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| FRAME SEAT ANGLE | 73 | 73 | 73 | 73 | 73 |
| FRAME BB DROP | 65 | 65 | 65 | 65 | 65 |
| FRAME WHEEL BASE | 1012 | 1029 | 1045 | 1062 | 1077 |
| FORK OFFSET | 50 | 50 | 50 | 50 | 50 |
| STANDOVER | 756 | 779 | 801 | 820 | 843 |
| STEM LENGTH | 100 | 100 | 100 | 100 | 100 |
| HANDLE BAR WIDTH | 420 | 440 | 440 | 460 | 480 |
