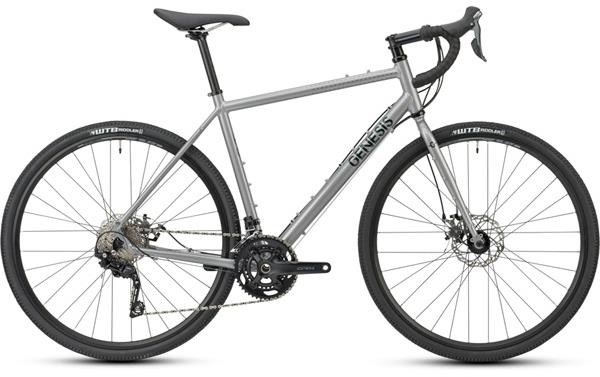

Genesis CDA 30 2022 - Road Bike
New for 2021, our top-tier CDA matches a great specification at an even better price. Our aluminium frameset is again the centrepiece for this versatile build.
Suited to commuting, utility, touring, road and gravel, the CDA is no less adaptable than our flagship Croix de Fer, from which it takes inspiration.
Somehow, we’ve managed to add Shimano’s excellent GRX gearing making this CDA the one if you’re planning to head straight off the beaten track.
Just add some bikepacking bags and you’ll be off, wherever the route takes you! Beaten up B-roads, bridleways, byways and everything in between, the CDA will tackle it with a grin.
Of course, being a CDA, there won’t be any complaints if it’s used as a winter road bike, resplendent in full-length mudguards – or even a posh commuter with panniers fitted.
Impeccable manners that threaten to outshine our original Croix de Fer, as the student becomes the master!
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | ALX8 6066/6061-T6 DOUBLE-BUTTED ALUMINIUM |
| Fork | Chromoly disc fork with anything cage mounts |
| Headset | PT-1606 EC34 Upper/EC34 Lower |
| Stem | Genesis Alloy, 31.8mm, -6 deg, 100mm |
| Bars | Genesis Alloy, 16 deg flare, XS = 400MM, SM/MED = 420MM, L-XL = 440MM |
| Front Brake | PROMAX DSK-717 Road |
| Rear Brake | PROMAX DSK-717 Road |
| Brake Lever | Shimano Tiagra ST-R4700 10spd |
| Front Mech | Shimano GRX FD-RX400 |
| Rear Mech | Shimano GRX RD-RX400 10spd |
| Shifters | Shimano Tiagra ST-R4700 10spd |
| Speed | 10 |
| Rims | Jalco XCD21, 32H |
| Front Hub | Formula RX-812 |
| Rear Hub | RX-300 |
| Spokes | Steel 14g |
| Front Tyre | Kenda Booster 700x40c TR |
| Rear Tyre | WTB Riddler 700x40c TR |
| Seat Post | Genesis Alloy 27.2 x 350mm |
| Saddle | Genesis |
| Chainset | Shimano GRX FC-RX600 |
| Bottom Bracket | BB-ES300 |
| Chain | KMC X10 |
| Cassette | Shimano CS-HG500-10 11/34T 10spd |
| Pedals | NW-91K with cage |
Genesis CDA 2021 Size Chart
| Size | Height (cm) | Height (Inches) |
| XS | 156 - 164 | 5'1 - 5'4 |
| S | 164 - 172 | 5'4 - 5'8 |
| M | 171 - 179 | 5'7 - 5'11 |
| L | 178 - 186 | 5'10 - 6'1 |
| XL | 185 - 193 | 6'1 - 6'4 |
Genesis CDA 2021 Geometry
| XS | S | M | L | XL | |
| FRAME SEAT TUBE | 470 | 500 | 530 | 550 | 580 |
| FRAME TOP TUBE | 524 | 544 | 561 | 582 | 605 |
| FRAME REACH | 365 | 375 | 385 | 395 | 405 |
| FRAME STACK | 553 | 572 | 593 | 612 | 633 |
| FRAME HEAD TUBE | 115 | 135 | 155 | 175 | 195 |
| FRAME HEAD ANGLE | 71 | 71 | 71.5 | 71.5 | 72 |
| FRAME SEAT ANGLE | 74 | 73.5 | 73.5 | 73 | 72.5 |
| FRAME BB DROP | 73 | 73 | 73 | 73 | 73 |
| FRAME WHEEL BASE | 1007 | 1023 | 1035 | 1052 | 1063 |
| FORK OFFSET | 50 | 50 | 50 | 50 | 50 |
| STANDOVER | 761 | 784 | 808 | 826 | 850 |
| STEM LENGTH | 100 | 100 | 100 | 100 | 100 |
| HANDLE BAR WIDTH | 400 | 420 | 420 | 440 | 440 |
What size frame do I need if I am between sizes? - read here
