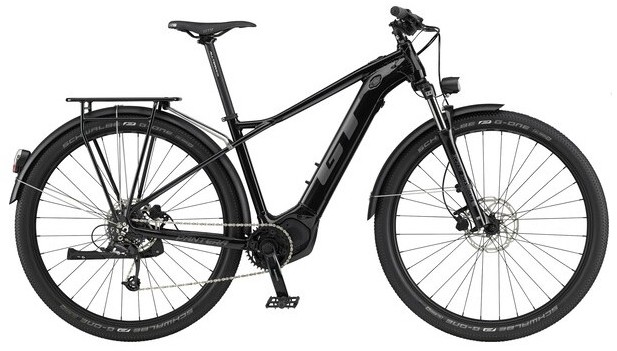

GT ePantera Dash Equipped 2024 - Electric Mountain Bike
Designed to broaden your cycling horizons, the GT ePantera Dash Equipped blends rugged capability with smooth pedal-assist power, making it ideal for trails, rough roads, and all-day adventures. With Shimano’s reliable STEPS motor and a 504Wh battery, this e-MTB keeps you going farther, while a Suntour fork, durable alloy frame, and high-quality components ensure you stay in control.
Key Features
- Frame: Alloy 29" frame, Shimano STEPS-specific, Boost 12x148mm
- Front Suspension: SR Suntour XCM, 100mm coil travel
- Rear Suspension: N/A
- Drivetrain: microSHIFT TS39-8 shifters, 8-speed, microSHIFT RD-M36L
- Brakes: Tektro M275 hydraulic disc, 180mm rotors
- Wheels: WTB STX i25 TCS, tubeless-ready 29" wheels
- Tyres: Schwalbe G-One Allround, 29x2.25", RaceGuard
- Finance Option: Available with 0% APR finance
Drive Information
- Motor: Shimano STEPS DU-E5000, 250W
- Battery: Shimano STEPS BT-E8035, 504Wh
- User Interface: Bluetooth connection box EW-EN100
The GT ePantera Dash Equipped is engineered for riders who want both performance and endurance on their off-road journeys. The Shimano STEPS system delivers smooth, consistent power up hills, while the reliable Suntour XCM fork gives you 100mm of front travel to tackle bumps and rocky paths with ease.
With tubeless-ready wheels and Schwalbe G-One tyres, this e-bike is prepared for a wide range of surfaces, offering stability and grip on everything from gravel trails to tarmac. The robust alloy frame keeps the bike lightweight yet durable, ensuring it’s ready for the challenges of off-road riding. Equipped with Shimano’s powerful and efficient motor, the ePantera Dash gives you the confidence to go farther and tackle new trails, knowing you’ve got the support to make it back comfortably.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | All New ePantera Alloy 29” Frame, Shimano STEPS Specific, Internal Battery, Tapered Head Tube, Boost 12x148 Thru Axle |
| Fork | SR Suntour XCM, 100mm, Coil, 46mm offset |
| Headset | FSA NO.57E, Zero Stack, Sealed Bearing |
| Stem | 6061 Alloy, 31.8, 7° |
| Bars | All Terra Riser, 6061 alloy, 15mm rise, 8° sweep, 4° rise, 740mm width |
| Front Brake | Tektro M275 Hydro Disc, 180/180mm Rotors |
| Rear Brake | Tektro M275 Hydro Disc, 180/180mm Rotors |
| Brake Lever | Tektro M275 |
| Rear Mech | microSHIFT RD-M36L |
| Shifters | microSHIFT TS39-8, 8-speed |
| Speed | 8 |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Front Hub | Formula DC-511, 15x110 |
| Rear Hub | Formula, QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready |
| Rear Tyre | Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready |
| Seat Post | All Terra, 6061 alloy, 0mm offset, 30.9, 350mm (XS-M), 400mm (L-XL) |
| Saddle | WTB Silverado Sport, Steel rails |
| Chainset | Shimano FC-E5010, 165mm, 36T |
| Chain | Shimano HG71 |
| Cassette | microSHIFT, 11-36T |
| Pedals | GT Plastic OPC Body |
| Battery Size (WH) | Shimano STEPS BT-E8035, 504Wh |
| Motor | Shimano STEPS DU-E5000 250W |
| User Interface | Bluetooth connection box EW-EN100 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
