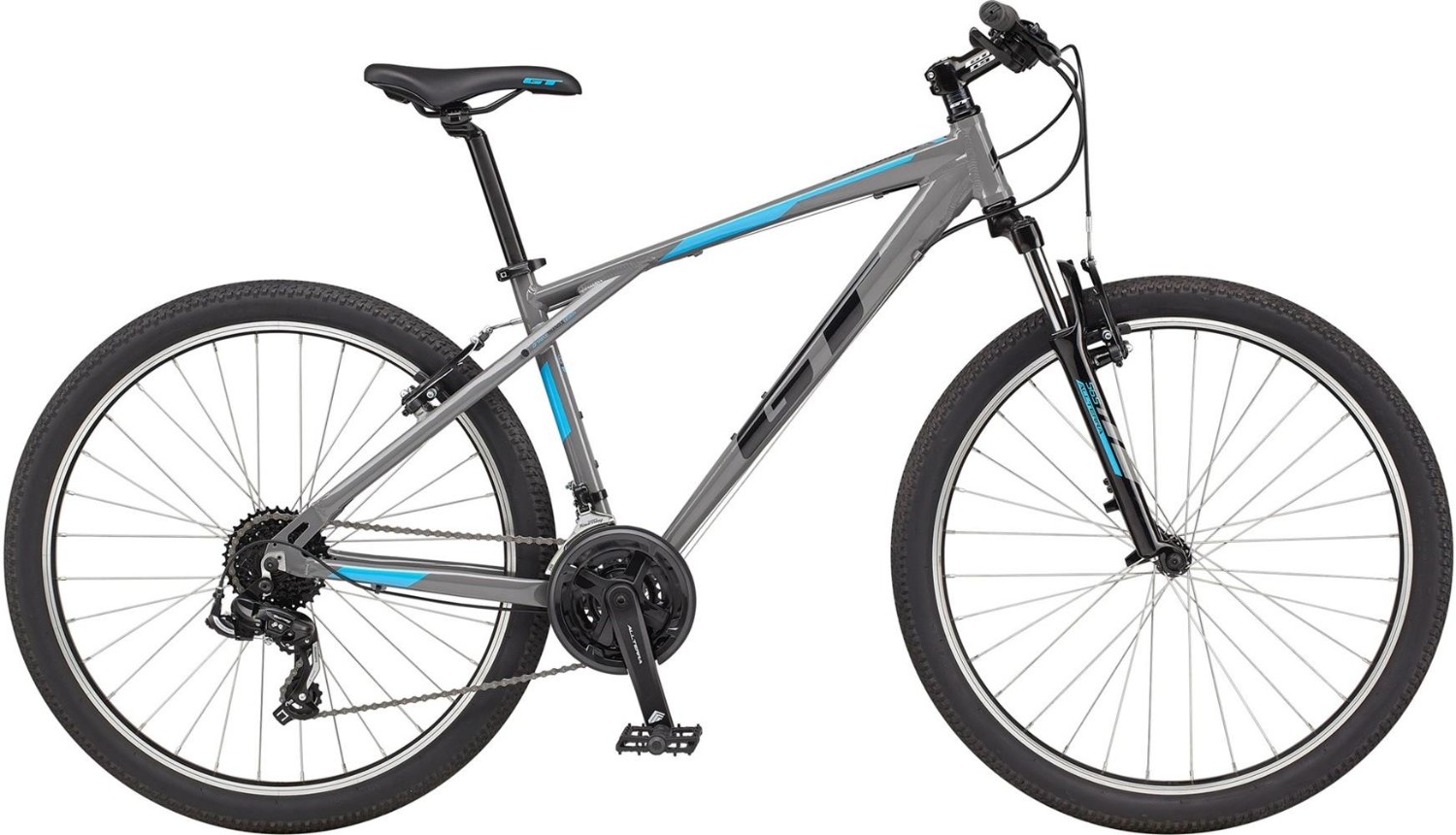

GT Palomar Al 27.5" Mountain Bike 2023 - Hardtail MTB
Bikepaths, Dirt Roads and Around the Block
Key Features:
- 80mm Suspension fork to soke up the cul de sac pot holes
- V-Brakes for affordable stopping power
- Hi-ten steel frame for comfort and durability
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061-T6 Aluminum Triple Triangle™ Frame, w/ 1 1/8" Head Tube |
| Fork | All Terra CH-565, 80mm, Coil |
| Headset | Ahead Type |
| Stem | Alloy Ahead type |
| Bars | Steel Riser, 20mm Rise, 6° Rise, 620mm Width |
| Front Brake | V-Brake |
| Rear Brake | V-Brake |
| Brake Lever | Alloy V-type |
| Front Mech | Shimano Tourney, 31.8 Clamp |
| Rear Mech | Shimano Tourney |
| Shifters | Shimano Tourney, 3x7 |
| Speed | 21 |
| Rims | All Terra Double Wall, 32h |
| Front Hub | Alloy, QR |
| Rear Hub | Alloy Freewheel, QR |
| Spokes | Stainless Steel, 14g |
| Front Tyre | Kenda 27.5x2.10 |
| Rear Tyre | Kenda 27.5x2.10 |
| Seat Post | Alloy 27.2 x 300mm |
| Saddle | GT MTB |
| Chainset | Prowheel Alloy, 42/34/24 |
| Bottom Bracket | Cartridge Sealed |
| Chain | KMC Z7, 7-speed |
| Cassette | Sunrace, 14-34, 7-speed |
| Pedals | GT Slim Line Flat Pedal |
Palomar Sizing
See the table below to find the right sized GT Palomar Bike.
|
Height |
Size |
||||||
|
4’8” / 143cm |
XXS |
|
|
|
|
|
|
|
4’9” / 145cm |
XXS |
|
|
|
|
|
|
|
4’10” / 148cm |
|
XS |
|
|
|
|
|
|
4’11” / 150cm |
|
XS |
|
|
|
|
|
|
5’0” / 152cm |
|
XS |
|
|
|
|
|
|
5’1” / 155cm |
|
XS |
S |
|
|
|
|
|
5’2” / 158cm |
|
|
S |
|
|
|
|
|
5’3” / 160cm |
|
|
S |
|
|
|
|
|
5’4” / 163cm |
|
|
S |
|
|
|
|
|
5’5” / 165cm |
|
|
S |
M |
|
|
|
|
5’6” / 168cm |
|
|
|
M |
|
|
|
|
5’7” / 170cm |
|
|
|
M |
|
|
|
|
5’8” / 173cm |
|
|
|
M |
|
|
|
|
5’9” / 175cm |
|
|
|
M |
L |
|
|
|
5’10” / 178cm |
|
|
|
M |
L |
|
|
|
5’11” / 180cm |
|
|
|
|
L |
|
|
|
6’0” / 183cm |
|
|
|
|
L |
XL |
|
|
6’1” / 185cm |
|
|
|
|
L |
XL |
|
|
6’2” / 188cm |
|
|
|
|
|
XL |
|
|
6’3” / 191cm |
|
|
|
|
|
XL |
XXL |
|
6’4” / 193cm |
|
|
|
|
|
|
XXL |
|
6’5” / 196cm |
|
|
|
|
|
|
XXL |
|
6’6” / 198cm |
|
|
|
|
|
|
XXL |
Read our bike size guide for more information on sizing.
Palomar Geometry
|
Size |
Seat Tube Length |
Horizontal Top Tube Length |
Stand over height |
Head Angle |
Seat Angle |
Chain Stay Length |
Head Tube Length |
Bottom Bracket Height |
Fork Offset (Rake) |
Wheel Base |
BB Drop |
FC |
Stack to HT |
Reach to HT |
|
XS |
355mm |
569mm |
651mm |
69.5 Degrees |
72.5 Degrees |
435mm |
90mm |
306mm |
40mm |
1063mm |
45mm |
632mm |
575mm |
390mm |
|
S |
380mm |
588mm |
693mm |
69.5 Degrees |
72.5 Degrees |
435mm |
100mm |
306mm |
40mm |
1083mm |
45mm |
652mm |
585mm |
406mm |
|
M |
430mm |
615mm |
735mm |
69.5 Degrees |
72.5 Degrees |
435mm |
110mm |
306mm |
40mm |
1111mm |
45mm |
679mm |
594mm |
430mm |
|
L |
485mm |
644mm |
777mm |
69.5 Degrees |
72.5 Degrees |
435mm |
130mm |
306mm |
40mm |
1143mm |
45mm |
710mm |
613mm |
453mm |
|
XL |
540mm |
675mm |
819mm |
69.5 Degrees |
72.5 Degrees |
435mm |
150mm |
306mm |
40mm |
1173mm |
45mm |
742mm |
631mm |
478mm |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
