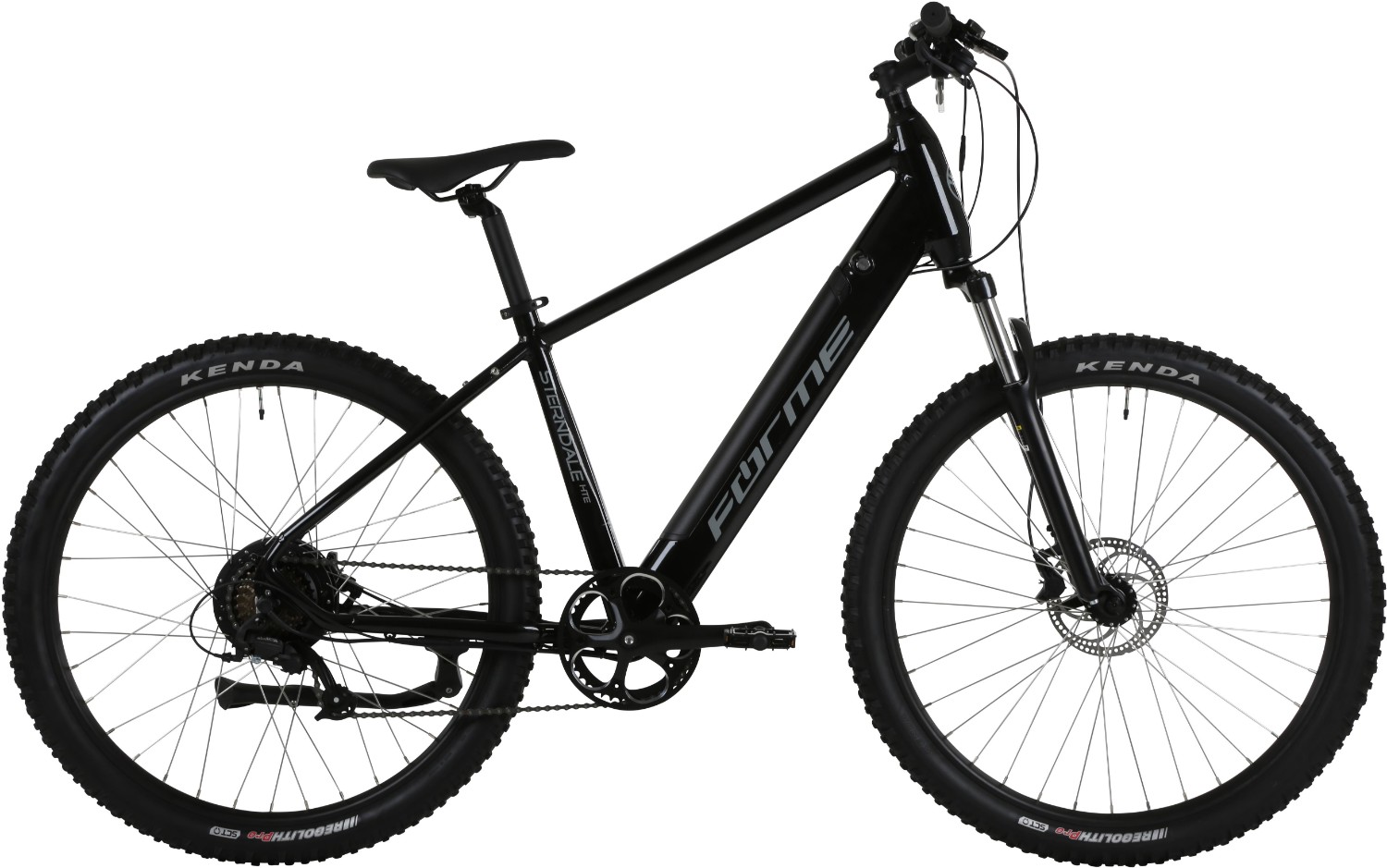

Forme Sterndale HTE 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061 Alloy In tube Battery |
| Fork | Coil spring, preload, lock-out |
| Rear Shock | FSA Integrated Cage Bearing |
| Stem | Forme Alloy 31.8mm x 70mm |
| Bars | Forme Alloy 31.8mm x 720mm |
| Front Brake | Hydraulic Disc 160mm Rotors |
| Rear Brake | Hydraulic Disc 160mm Rotors |
| Rear Mech | Microshift RD-M21, 7 speed |
| Shifters | Microshift TS38, 7 Speed |
| Speed | 7 |
| Rims | Alloy 36H Bafang Rear Hub Motor |
| Rear Hub | Bafang Rear Hub Motor 250W |
| Front Tyre | Kenda Regolith 27.5 × 2.4" |
| Rear Tyre | Kenda Regolith 27.5 × 2.4" |
| Seat Post | Zoom Alloy 31.6mm |
| Saddle | Forme Comfort |
| Chainset | Prowheel 170mm 42T |
| Bottom Bracket | Square Taper Cartridge Bearing |
| Chain | KMC Z7 |
| Cassette | Shimano Freewheel 7 Speed 14-28T |
| Battery Size (WH) | Samsung Integrated 420WH |
| Motor | Bafang Rear Hub Motor 250W |
| User Interface | King Meter LCD |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
