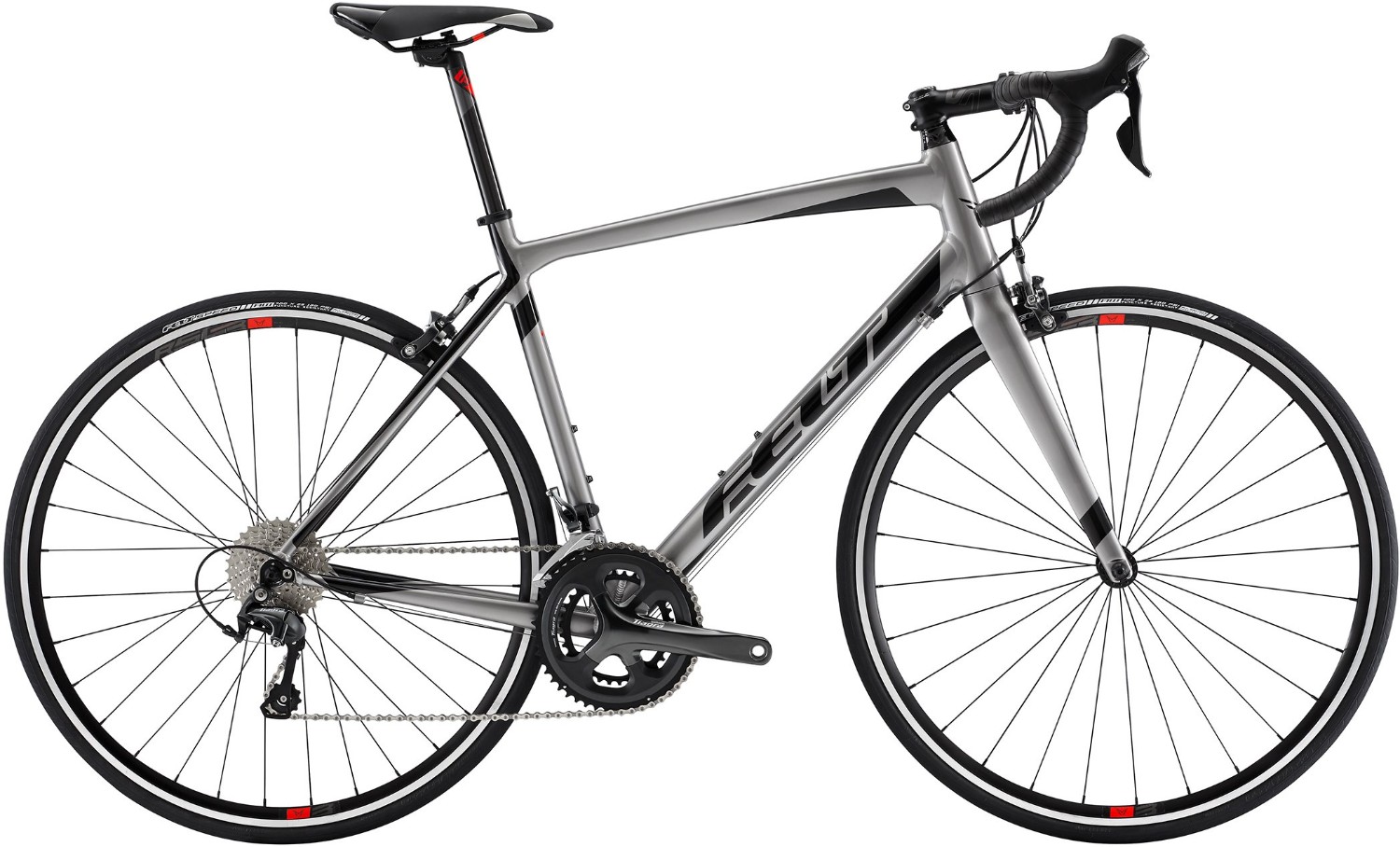

Felt Z85 2016 - Road Bike

The 2016 Felt Z85 is Felt’s most versatile road bike. If you want to take the long way home, explore your local routes or simply escape into the countryside, the Z85 is for you. Ideal for sportive and endurance riding the Felt Z85 is comfortable over long distances and extremely efficient.

The Felt Z series also makes a great commuter steed for lightning-fast, traffic dodging journeys. You can even buy the Z85 road bike through a Cycle to Work scheme.

Frame & Fork

Key to the quality ride feel is the aluminium frame matched with endurance road bike geometry. A slightly more relaxed geometry with a more upright riding position combines comfort and efficiency for long days in the saddle.

At it’s core is a custom butted 6061 frame which is light, stiff and strong for all round performance. Shaving excess material away from the tubes, called butting, reduces weight while hydroformed junctions optimise strength and stiffness. A long wheel base also gives you extra stability, ideal for sportive riding.

Felt have improved stiffness upfront with a tapered head tube for precision steering. This is ideal for navigating urban roads and high-speed cornering during sportive events. The carbon blades also soak up road buzz for a more comfortable ride.

Components

Equipped is a quality Shimano Tiagra 10 speed drivetrain, with a compact chainset. The wide range cassette comes with smooth steps between gears making it easy to find an option for your pedalling speed. Felt’s RSL3 wheels are the same as you find on the higher priced Z5 for excellent value.

Size specific short reach handlebars and crank lengths (as well as stem) gives you the best fit on the frame, regardless of the frame size you choose. These features will keep you in the saddle for longer.

The Felt Z85 2016 Features are:

Frame: Felt Endurance Road FLite Custom Butted 6061 aluminum,
Hydroform TIG-welded construction, threaded BB, replaceable rear derailleur hanger

Fork: Felt Endurance Road UHC Performance carbon fiber blades, ControlTaper 1.125" - 1.5" aluminum steer tube

Headset: FSA NO.38/42B-CUP, 1.125" - 1.5" bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1x 10mm + 2 x 5mm PC headset spacers, Felt top cap & aluminum bolt

Bars: Felt SuperLite Road, short 65mm reach, 125mm drop, Ø31.8mm

51cm = 400mm
54 - 56cm = 420mm
58 - 61cm = 440mm

Stem: Felt VariableAngle, +/- 8°/16° rise, Ø31.8mm

51cm = 80mm
54cm = 90mm
56cm = 100mm
58 - 61cm = 110mm

Speed: 20

Front Mech: Shimano Tiagra clamp-on, Ø31.8mm

Rear Mech: Shimano Tiagra long cage

Shifters Shimano Tiagra

Chainset: Shimano Tiagra

51cm = 170mm
54 - 56cm = 172.5mm
58 - 61cm = 175mmShimano 50/34T

Bottom Bracket: Shimano Hollowtech II

Cassette: Shimano 10-speed,11-32T

Chain: KMC 10-speed

Front Brake: Shimano Tiagra dual pivot caliper

Rear Brake: Shimano Tiagra dual pivot caliper

Rims: Felt Road RSL3 (Tubeless Ready), 22mm Width, 24mm Depth

Front Hub: Felt R3, sealed bearing, 28H

Rear Hub: Felt R3, sealed cartridge bearing, 32H, 10-speed (11-speed compatible)

Spokes: 2.0mm stainless steel

Tyres: Felt All Weather, 700c x 25c Front Felt All Weather, 700c x 25c Rear

Seatpost: Felt Endurance Road UHC Performance carbon fiber, Ø27.2mm, 330mm lengthFelt single bolt, Ø31.8mmFelt single bolt, Ø31.8mm

Occasionally, without notice, manufacturers change product design and/or specifications.
