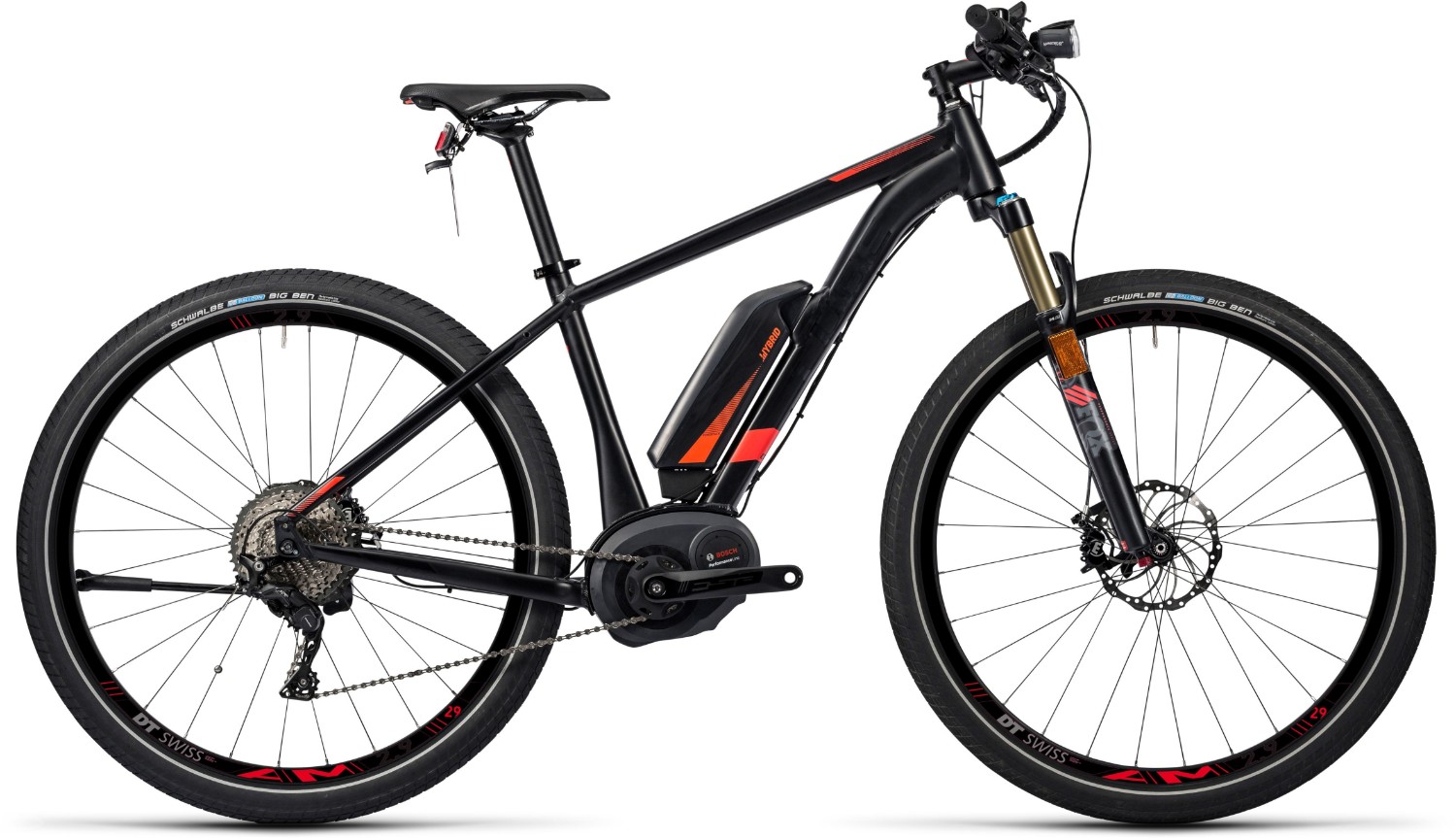

Cube Suv Hybrid 45 SL 500 29 2016 - Electric Bike

When we were designing the new SUV 45 Hybrid SL - our first speed e-bike - for 2016, we paid particular attention to the requirements of an e-bike designed to exceed 16mph (25kmh). With its active drive support offering speeds up to 28mph (45kmh), you'll easily out-pace the traffic on city streets and cover large distances in no time - a genuine transport alternative for the environmentally conscious. A robust aluminium Superlite frame and carefully selected components mean you'll still be relaxed in the saddle, even at 28mph. That's why the SUV Hybrid 45 SL is a great choice for getting around quickly in urban spaces: no more worrying about rush-hour jams or finding a parking space.
Frame
The triple butted, hydroformed High-Performance Aluminium (HPA) frame is a prime example of what modern aluminium frame construction can offer, and is tailored in every detail to the requirements of an urban e-bike. Sophisticated construction means that it boasts optimal frame rigidity in spite of its low weight. The X12 rear axle simply adds to this drivetrain efficiency. Perfect positioning of the motor and battery relative to the frame, combined with our own Agile Ride Geometry (ARG) adds up to lots of riding fun in the urban jungle, even at high speeds.
Components
Riding in the city can be unforgiving. That's why we've added all kinds of robust MTB technology, to make the SUV 45 rider's life a little easier. The comfortable Fox 34 Float suspension fork and voluminous Schwalbe Big Ben tyres make light work of potholes and kerbs. Bosch's Performance Speed Line drive offers intelligent power assistance, with a breakway point over 28mph (45kmh) and a new 500Wh battery to maximise the range. Brand new XT gear components from Shimano, combined with a wide-ranging 11-42 cassette, guarantee reliable gear shifting and a gear for every eventuality. The hydraulic four-piston Magura MT5 disc brakes with 180mm rotors front and rear are the perfect choice for scrubbing off speed when you need to. And the bike rolls on high quality, robust Answer Atac AM 29 wheels.
Agile Ride Geometry
We ran innumerable tests to develop the Agile Ride Geometry in our series of big wheel bikes. We also added the 27.5in wheel size to the very well received portfolio. Three important details lead to the very agile character. Increased fork offsets let us achieve the same trail as our 26in bikes without having to steepen the head angle, thus maintaining generous toe clearance to the front wheel. Secondly we shortened the chain stays without compromising the seat angle. We invented a patented construction to mount the front derailleur to give us more tyre clearance while keeping a conventional seat angle, leading to a perfect riding position for every rider size. Last but not least we kept the BB height the same as on our 26in bikes. These measures lead to a natural riding position. Every mountain biker will feel immediately at home on a CUBE 29er or 27.5.
Frame Safe System
To protect our high-end aluminium frames from damage, they are built with the CUBE Frame Save System replaceable derailleur hanger. The mounting thread is in the hanger and not in the frame as usual. In case of a crash, this hanger can be easily and quickly replaced by a new one.
Wet Paint Surface
On polished, brushed aluminium and all HPC frames, the logos and graphics are applied in multi-layer wet paint. We use this surface treatment technology mainly to save weight.
Easy Mount Kickstand
The Easy Mount Kick Stand is a new system developed and designed by CUBE. The base of the stand is mounted from below to a fitting plate integrated to the frame and fixed with a through bolt. This kick stand is extremely stiff and solid through the enlarged contact areas between base and frame which gives a stable stand even with loaded panniers.
The Cube Suv Hybrid 45 SL 500 29 2016 Features are:
Frame: Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, X12, Internal Cable Routing
Fork: Fox 34 Float Performance 29, QR15, Tapered, 100mm
Headset: FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Bars: Cube Rise Trail Bar Pro, 720mm
Stem: CUBE Performance Stem Pro, 31.8mm
Speed: 11
Rear Mech: Shimano XT, RD-M8000-DGS, ShadowPlus, Direct Mount, 11-Speed
Chainset: FSA CK-745, 19T
Front Brake: Magura MT5 Hydr. Disc Brake 180mm
Rear Brake: Magura MT5 Hydr. Disc Brake 180mm
Rims: Answer Atac AM Pro 29, 15QR/X12, Tubeless-Ready
Front Hub: 15QR
Rear Hub: X12
Tyres: Schwalbe Big Ben, Performance Line, 28x2.15 Front Schwalbe Big Ben, Performance Line, 28x2.15 Rear
Seatpost: Cube Performance Post, 30.9mm
Occasionally, without notice, manufacturers change product design and/or specifications.
