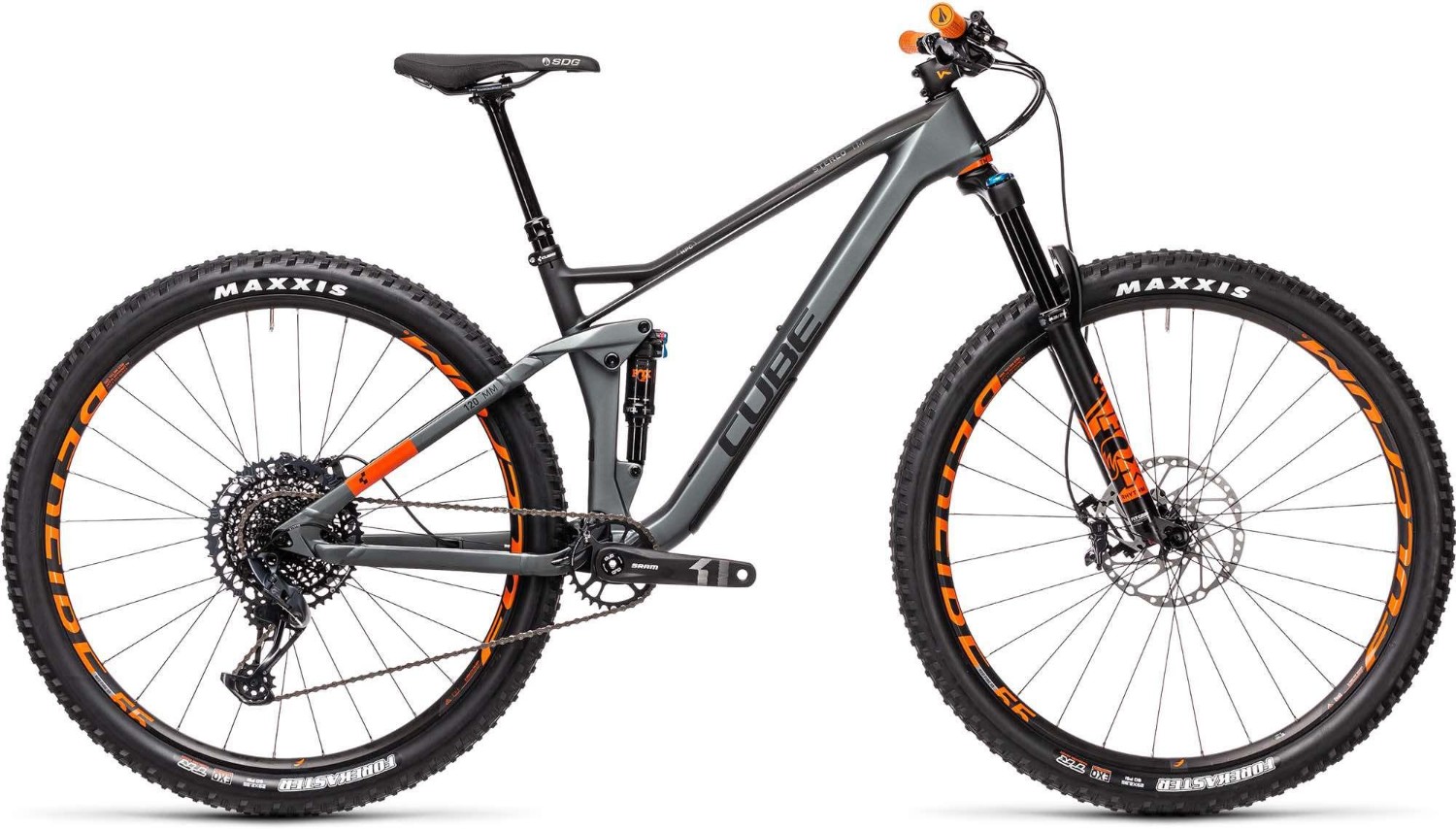

Cube Stereo 120 HPC TM 29" Mountain Bike 2021 - Trail Full Suspension MTB
The Stereo 120 HPC TM has everything you need to dissect the most demanding of singletrack trails with ease. Featuring a 52-tooth large sprocket for almost goat-like climbing ability, Srams 1x12 GX transmission puts the right gear at your fingertips. We fitted powerful Shimano XT hydraulic disc brakes with a larger rotor up front for superb stopping power. And Fox's 34 Rhythm fork and Float DPS EVOL rear shock serve up plenty of trail-smoothing travel. There's even a dropper post for those more adventurous line choices. Comfort, control and fun - rolled into one package.
Our Stereo 120 frameset set the standard for comfortable, high-performance trail bikes. The Stereo 120 HPC takes it a step further, by incorporating a light, stiff and elegant carbon front triangle for reduced weight and even better handling. The short rocker, covered pivot bearings and efficient kinematics deliver superb traction, comfort and control. A tapered head tube and Boost rear axle ensure great handling and steering precision. And our Agile Trail Geometry has got your back, helping you keep the rubber side down and the fun quotient up.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH |
| Fork | Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm |
| Rear Shock | Fox Float DPS, 190x45mm, Open/Medium/Firm Mode |
| Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Bars | Newmen Evolution SL 318.25, 780mm |
| Front Brake | Shimano XT BR-M8100, Hydr. Disc Brake 203mm |
| Rear Brake | Shimano XT BR-M8100, Hydr. Disc Brake 180mm |
| Rear Mech | Sram GX Eagle™, 12-Speed |
| Shifters | Sram NX Eagle™ Trigger |
| Speed | 12 |
| Rims | Fulcrum Red 55 EM |
| Front Tyre | Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.35 |
| Rear Tyre | Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.35 |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 150mm (125mm for size S) |
| Saddle | SDG Radar |
| Chainset | Sram X1 1000 Eagle™ DUB 30T, Boost, 170mm |
| Chain | Sram SX Eagle™ |
| Cassette | Sram XG-1275, 10-52T |
| Pedals | Basic Resin Flats |
| Weight | 13.4 kg |
Cube Stereo 120 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S - 16" |
160 - 170 |
5'5" - 5'7" |
|
M - 18" |
170 - 180 |
5'7" - 5'11" |
|
L - 20" |
180 - 188 |
5'11" - 6'2" |
|
XL - 22" |
187 - 196 |
6'2" - 6'5" |
Read our bike size guide for more information on sizing.
Cube Stereo 120 Geometry Chart
|
|
S |
M |
L |
XL |
|
Seat Tube |
370 |
420 |
470 |
520 |
|
Top Tube Horizontal |
570 |
591 |
614 |
640 |
|
Seat Tube Angle |
75.3° |
75.3° |
75.3° |
75.3° |
|
Head Tube Angle |
67° |
67° |
67° |
67° |
|
Wheel Base |
1148.2 |
1169.4 |
1193.3 |
1221.1 |
|
BB-Height |
-40 |
-40 |
-40 |
-40 |
|
Standover Height |
740 |
740 |
747 |
775 |
|
Reach |
420 |
440 |
460 |
480 |
|
Stack |
603.4 |
606.2 |
615.4 |
633.8 |
