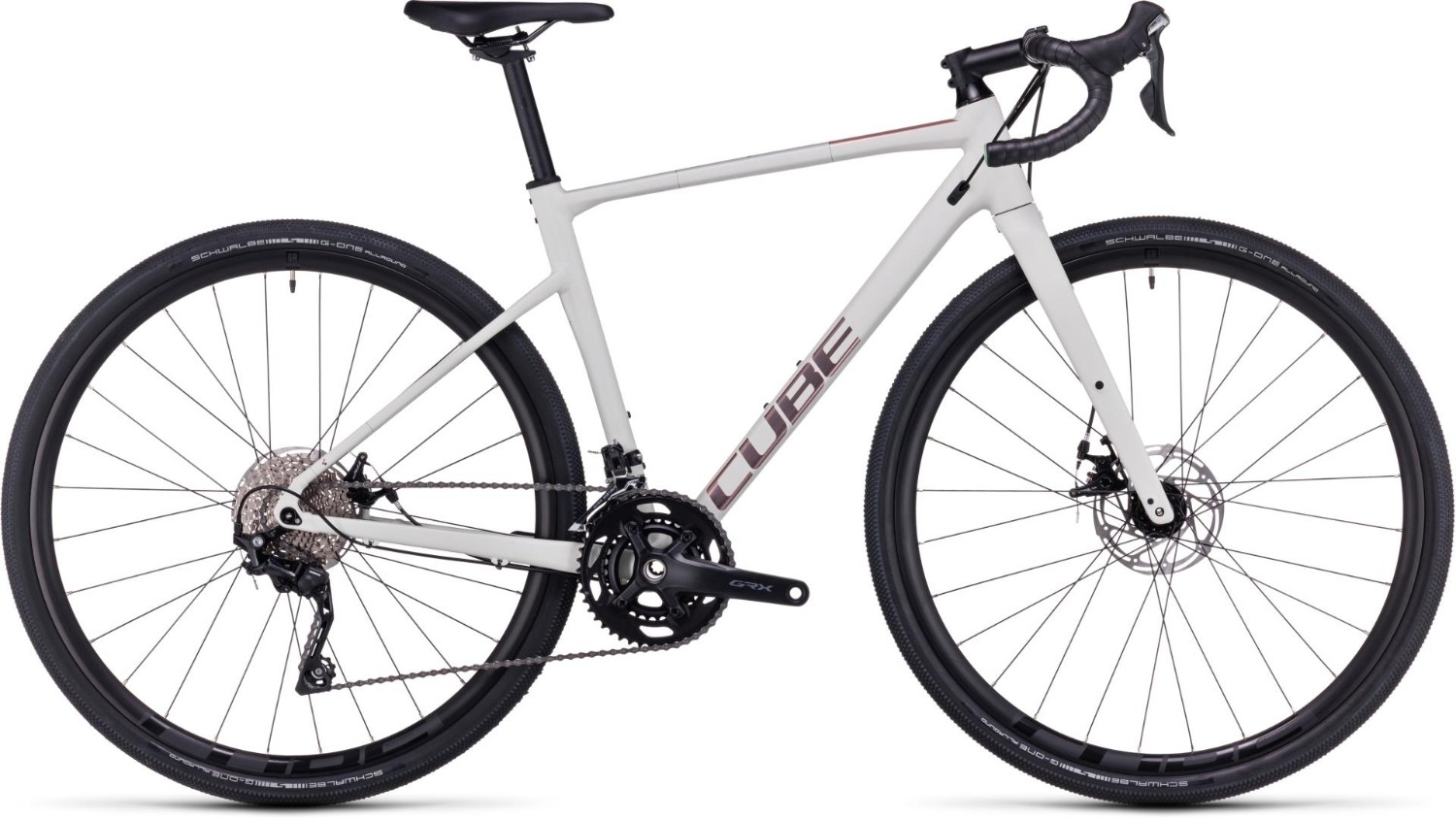

Cube Nuroad WS 2024 - Gravel Bike
![Nuroad WS 2024 - Gravel Bike image 0](https://tredz.azureedge.net/prodimg/262107/1/resize=width:1000.jpg)
![Nuroad WS 2024 - Gravel Bike image 1](https://tredz.azureedge.net/prodimg/262107/2/resize=width:1000.jpg)
![Nuroad WS 2024 - Gravel Bike image 2](https://tredz.azureedge.net/prodimg/262107/3/resize=width:1000.jpg)
![Nuroad WS 2024 - Gravel Bike image 3](https://tredz.azureedge.net/prodimg/262107/4/resize=width:250.jpg)
![Nuroad WS 2024 - Gravel Bike image 4](https://tredz.azureedge.net/prodimg/262107/5/resize=width:250.jpg)
![Nuroad WS 2024 - Gravel Bike image 5](https://tredz.azureedge.net/prodimg/262107/6/resize=width:250.jpg)
![Nuroad WS 2024 - Gravel Bike image 1](https://tredz.azureedge.net/prodimg/262107/2/resize=width:1000.jpg)
![Nuroad WS 2024 - Gravel Bike image 2](https://tredz.azureedge.net/prodimg/262107/3/resize=width:1000.jpg)
![Nuroad WS 2024 - Gravel Bike image 3](https://tredz.azureedge.net/prodimg/262107/4/resize=width:250.jpg)
![Nuroad WS 2024 - Gravel Bike image 4](https://tredz.azureedge.net/prodimg/262107/5/resize=width:250.jpg)
![Nuroad WS 2024 - Gravel Bike image 5](https://tredz.azureedge.net/prodimg/262107/6/resize=width:250.jpg)
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, 12x142mm, AXH |
Fork | CUBE Nuroad Flat Mount Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Fender & Lowrider Mounts, 12x100mm |
Headset | VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
Stem | CUBE Performance Stem SLX, 31.8mm |
Bars | CUBE Gravel Race Bar |
Front Brake | TRP Spyre MD-C610C, Flat Mount (160/160) |
Rear Brake | TRP Spyre MD-C610C, Flat Mount (160/160) |
Front Mech | Shimano GRX FD-RX400 |
Rear Mech | Shimano GRX RD-RX400, 10-Speed |
Shifters | Shimano Tiagra ST-4700 |
Speed | 20 |
Rims | CUBE GR 2.3, 622x23C, 12x100/12x142mm |
Front Tyre | Schwalbe G-One Allround, Kevlar, 40-622 |
Rear Tyre | Schwalbe G-One Allround, Kevlar, 40-622 |
Seat Post | CUBE Performance Post, 27.2mm |
Saddle | Cube Natural Fit Venec Lite WS |
Chainset | Shimano GRX FC-RX600, 46x30T |
Chain | KMC X10 |
Cassette | Shimano CS-HG50, 11-36T |
Cube Nuroad Size Chart
Size |
Height (cm) |
Height (inches) |
50 (XS) | 155 - 165cm | 5' 1" - 5' 5" |
53 (S) | 165 - 170cm | 5' 5" - 5' 7" |
56 (M) | 170 - 175cm | 5' 7" - 5' 9" |
58 (L) | 175 - 180cm | 5' 9" - 5' 11" |
61 (XL) | 180 - 188 cm | 5' 11" - 6' 3" |
Cube Nuroad Geometry Chart
50 (XS) | 53 (S) | 56 (M) | 58 (L) | 61 (XL) | |
Seat tube | 447 | 477 | 507 | 527 | 557 |
Seat tube centre to centre | 340 | 358 | 386 | 404 | 434 |
Top tube horizontal | 518 | 537 | 560 | 575 | 592 |
Seat tube angle | 75.8 | 74.7 | 73.8 | 73 | 73 |
Head tube angle | 69 | 70 | 71.4 | 72 | 72.5 |
Chainstay | 439 | 439.8 | 439.5 | 439.5 | 439.5 |
Head tube | 113 | 135 | 165 | 185 | 208 |
Wheelbase | 1043.6 | 1044 | 1046 | 1046 | 1058 |
BB height to hub | -70 | -70 | -70 | -70 | -70 |
Standover | 745.1 | 773 | 804 | 825 | 851 |
Reach | 383.9 | 385 | 389 | 389 | 398 |
Stack | 529.8 | 554 | 588 | 609 | 633 |
What size frame do I need if I am between sizes? - read here
